2 Port DVI USB KVM Switch with Audio
and USB 2.0 Hub
SV231DVIUA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/11/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com SV231DVIUA
Summary of Contents for StarTech.com SV231DVIUA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/11/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ................................2 Installation................................3 Hardware Installation ..........................3 Driver Installation ............................4 Operation ................................5 Front Panel ..............................5 HotKey Control ............................5 Alternative Hotkey Commands ......................7 Change Leading Hotkey ........................7 Specifications ..............................8 Technical Support ............................9 Warranty Information ............................9... -
Page 4: Introduction

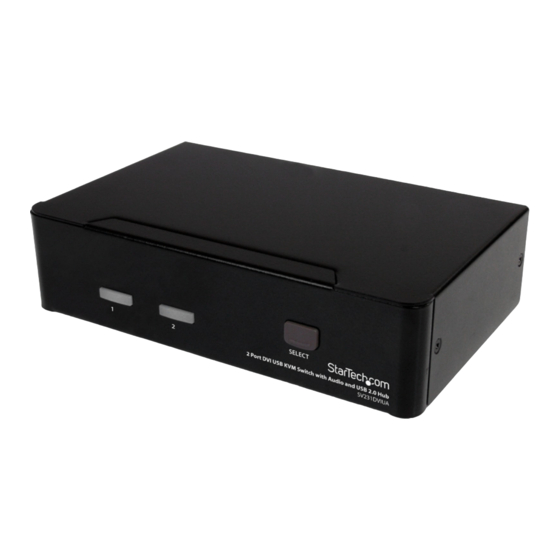

Introduction The 2-Port DVI USB KVM Switch with Audio and USB 2.0 Hub lets you control two USB enabled, DVI capable computers from a single monitor and peripheral set (keyboard, mouse and speakers) and up to two additional USB peripherals connected through the USB hub ports. Featuring convenient hot-key and front panel push-button switching options and high- resolution support up to 1920x1200, the KVM switch is perfect for applications where central control of two high-resolution computer systems is required. -
Page 5: Front View
Front View Port Selection/Link Port Selection Button Rear View Instruction Manual... -
Page 6: Installation
KVM’s PC ports (i.e. PC1). A dedicated DVI, USB and audio 4-in-1 KVM cable can be used (i.e. StarTech.com ID: USBDVI4N1A6 or DVID4N1USB6). NOTE: Ensure you are using the same type of DVI cabling throughout the installation (i.e. -
Page 7: Driver Installation
4. Repeat for Steps 2 and 3 for each PC port on the KVM switch, or each computer you wish to use on the KVM. 5. OPTIONAL: Connect any other USB peripherals you wish to share between the connected computers/devices to the extra USB Hub ports on the Console side. 6. -
Page 8: Operation
Operation Front Panel Port Selection/Link LED The LED turns green when the connected computer is powered-on. The corresponding LED will also illuminate red when that PC port is currently selected. Port Selection Button Pressing the front panel “Select” button toggles between the PC ports on the KVM switch. HotKey Control A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. - Page 9 Manual Scan Allows users to manually switch back and forth between powered-on computers. Left <CTRL> + Left <CTRL> + <F2> To select the previous or the next computer, press <UP> or <DOWN> arrow keys. To abort the Manual Scan, press any other key. Scan Time Four options are available for users to set the Scan Time duration, it Includes 3, 8, 15 and 30 seconds.
-
Page 10: Alternative Hotkey Commands
Alternative Hotkey Commands In addition to the Left <CTRL> + Left <CTRL> hotkeys, there are two alternative hotkey sequences available. 1. For the following operations, users may press <ScrollLock> twice instead of pressing left <CTRL> twice. To select a computer: <ScrollLock>... -
Page 11: Specifications
Specifications Number of Ports 1 x 29-pin DVI female Computer Connectors 1 x USB type B female (per Port) 2 x 3.5mm mini-jack female 1 x 29-pin DVI female 4 x USB type A female Console Connectors 2 x 3.5mm mini-jack female 1 x DC Power LEDs 2 x Port Selection/Link... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
