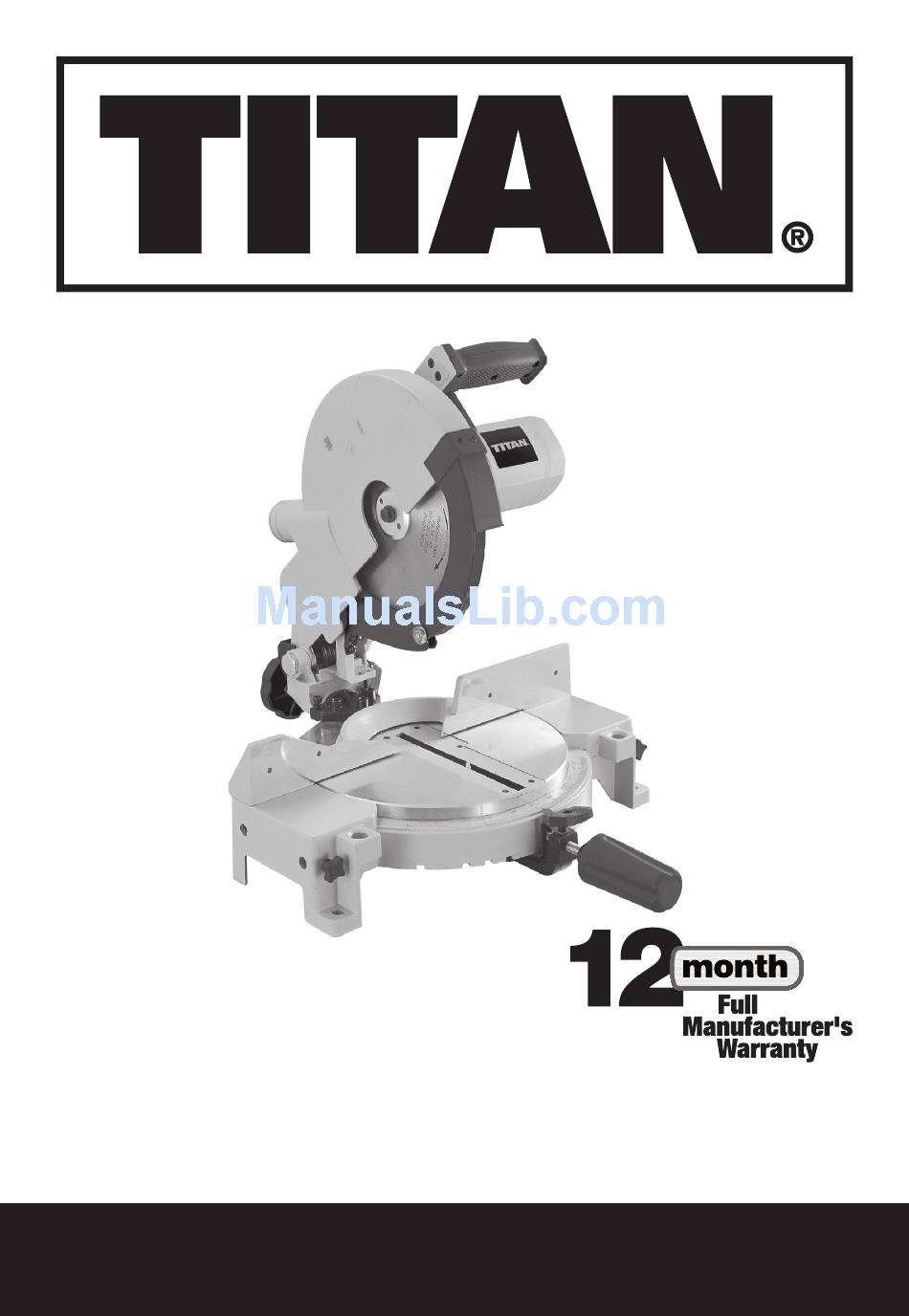

  • Page 1 SAFETY AND OPERATING MANUAL 10” MITRE SAW SF2541...
  • Page 2 Congratulations on your purchase of a power tool from Screwfix Direct Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future. Your power tool comes with a 12-month guarantee,so should it develop a fault within this period contact Screwfix Direct Ltd on Freephone 0500 41...

  • Page 3: Safety Instructions

    Inspect tool cord periodi- cally and if damaged have them replaced by an authorised service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean and free of oil or grease. 10” MITRE SAW SF2541...
  • Page 4 15. Disconnect tools. When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply. 16. Remove adjusting keys and wrenches. From the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on.
  • Page 5 20.Retrain from removing any cut-offs or other parts of the workpiece from the cutting area whilst the machine is running and the saw head is not in the rest position. 21.Ensure that the machine is always fixed to a bench, wherever possible. 10” MITRE SAW SF2541...
  • Page 6 SYMBOLS Read the manual Warning Wear gloves Wear dust mask,eye & ear protection Conforms to relevant safety standards...
  • Page 7 9. TABLE TOP 10. TABLE INSERT 11. TABLE ANGLE POSITION LEVER 12. LOCKING MITRE HANDLE(FOR ROTATING TABLE TOP) 13. ANGLE SCALE 14. HORIZONTAL CLAMP 15. MOUNTING HOLE 16. TABLE EXTENSION RAIL CLAMP SCREW 17. DUST BAG 10” MITRE SAW SF2541...

  • Page 8: Technical Data

    TECHNICAL DATA 230V~50Hz Voltage: 1600W Input power: 4500min No load speed: Ø250mm Blade diameter: Ø30mm Blade bore: 2.8mm Blade width: Blade teeth: Cutting capacities(mitre bevel): 140x65mm 140x38mm x 45 95x65mm x 45 95x38mm Double insulation: Net weight: 12.3kg NOISE AND VIBRATION DATA Sound pressure level: 96.8dB(A) Sound power level:...
  • Page 9 Before switching on, lower the saw head to make sure the clamp clears the guard and saw head assembly. Before using your mitre saw be sure to read the instruction manual carefully. Fig 6 10” MITRE SAW SF2541...

  • Page 10: Operation Instructions

    OPERATION INSTRUCTIONS Note:If you see some sparks flashing in the ventilation slots, do not panic this is normal and will not damage the machine. 1. MOUNTING THE SAW The saw must be stable and not move about in operation.Before use, the saw must be fixed to a stable bench.Fixing holes are design on each foot Fig 7 of the base.Put the machine on a flat plate(should...
  • Page 11 Compound mitre cuts can be achieved by setting both the mitre and bevel angles simultaneously. Follow the procedures for mitre and bevel cuts to achieve the desired angles. Fig 15 Fig 16 10” MITRE SAW SF2541...

  • Page 12: Maintenance

    MAINTENANCE Warning: Before making any adjust ment, maintenance to the saw, make sure that it is disconnected from mains supply. When all the adjustments, settings or maintenance have been done, make sure that all keys and wrenches have been removed Fig 17 and that all screws, bolts and other fittings are securely tightened.

  • Page 13: Environmental Protection

    Do not lift the saw by the switch handle. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. 10” MITRE SAW SF2541...

  • Page 14: Plug Replacement

    PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below.

  • Page 15: Declaration Of Conformity

    Houndstone Business Park Yeovil BA 22 8RT Declare that the product MITRE SAW SF2541 Complies with the essential health and safety requirements of the following directives: 89/336/EEC, 93/68/EEC.–EMC Directive. 73/23/EEC, 93/68/EEC.–Low Voltage Directive 98/37/EC.–Machinery Directive. Standards and technical specifications referred to:...
