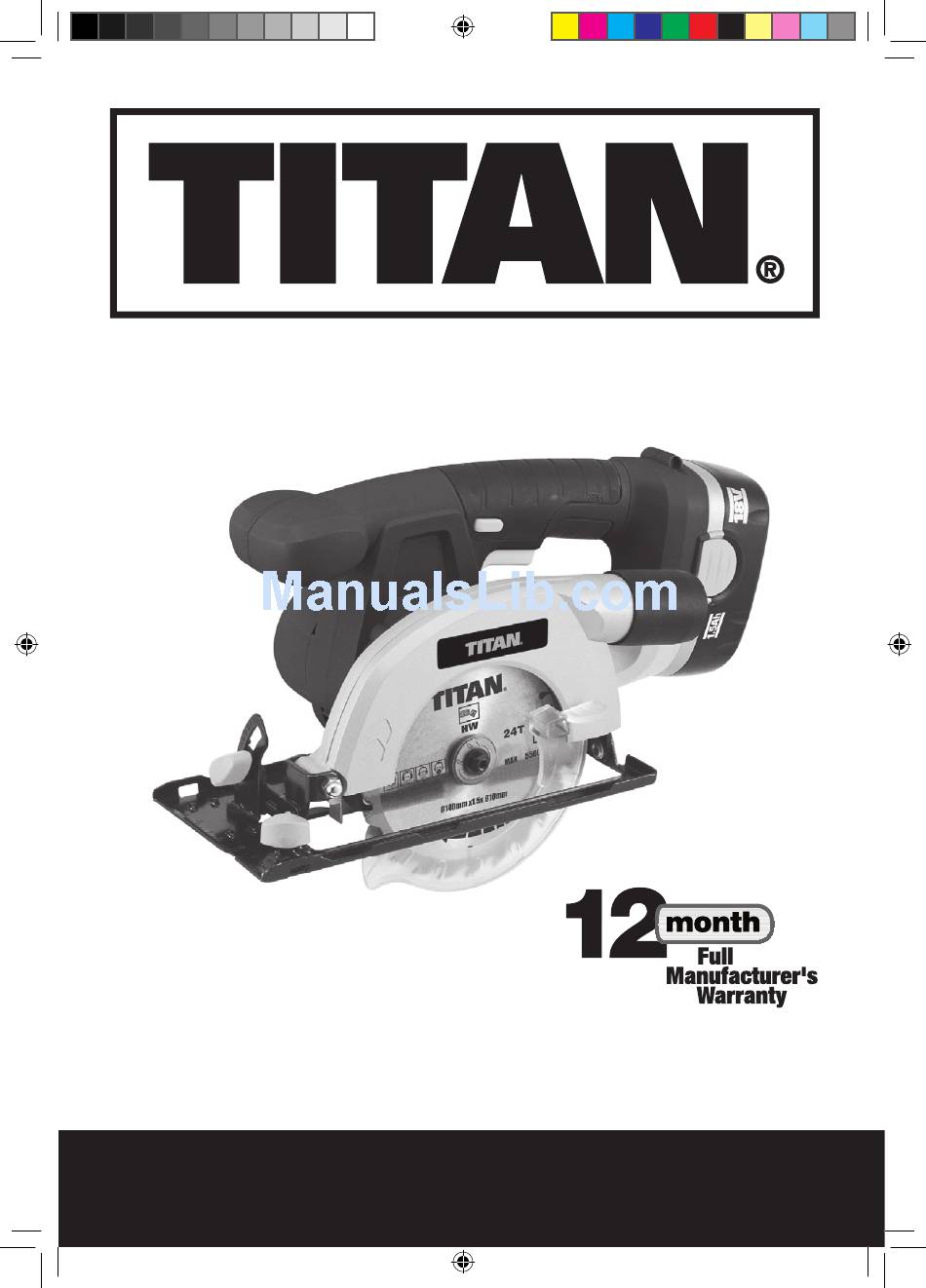

- Page 1 SAFETY AND OPERATING MANUAL 18V CIRCULAR SAW SF2841 SF2841 CSC18P-M-060425.indd 1 2006-5-25 11:08:43...
- Page 2 SF2841 CSC18P-M-060425.indd 2 2006-5-25 11:08:43...
-
Page 3: Circular Saw
This guarantee does not affect your statutory rights.This guarantee is only valid in the UK. For further technical advice, spare parts or repair service (outside of guarantee) please contact the customer helpline number on 0845 607 6380. 18V CIRCULAR SAW SF2841 SF2841 CSC18P-M-060425.indd 3 2006-5-25 11:08:44... -
Page 4: Safety Instructions
A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. SF2841 CSC18P-M-060425.indd 4 2006-5-25 11:08:44... - Page 5 Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery 18V CIRCULAR SAW SF2841 SF2841 CSC18P-M-060425.indd 5 2006-5-25 11:08:44...
- Page 6 20.Avoid short circuit of the battery pack connections (screws & nails). 21.Do not incinerate or burn the battery pack, it may explode. 22.Do not charge a damaged battery pack. 23.Replace any damaged supply cords on your charger in an approved service centre. SF2841 CSC18P-M-060425.indd 6 2006-5-25 11:08:44...
- Page 7 Investigate and take corrective actions to eliminate the cause of blade binding. c) When restarting a saw in the wordpiece, centre the saw blade in the kert 18V CIRCULAR SAW SF2841 SF2841 CSC18P-M-060425.indd 7 2006-5-25 11:08:44...
-
Page 8: Pocket Cutting
Set the depth of cut on the saw. c. Position the saw over the marked area with the front edge of the base plate resting on the work surface and cutting guide aligned with marked line on work-piece (See Dia6). SF2841 CSC18P-M-060425.indd 8 2006-5-25 11:08:45... - Page 9 The moving lower guard can now be released for normal action of the guard. SYMBOLS Read the manual Warning Wear gloves Wear dust mask,eye & ear protection Conforms to relevant safety standards 18V CIRCULAR SAW SF2841 SF2841 CSC18P-M-060425.indd 9 2006-5-25 11:08:45...
- Page 10 LOCK-OFF BUTTON ON/OFF SWITCH DEPTH OF CUT SCALE HEX KEY DEPTH OF CUT LOCK BUTTON SPINDLE LOCK BUTTON MAIN HANDLE BATTERY PACK DUST EXTRACTION OUTLET SF2841 CSC18P-M-060425.indd 10 2006-5-25 11:08:46...
-
Page 11: Technical Data
Ø140mm Bore size: Ø10mm Maximum cutting capacity: Cutting capacity at 90º: 41.5mm Cutting capacity at 45º: 30mm Normal charging time: 1 hour Battery capacity: 1.5Ah Charger input data: 230V~50Hz Weight: 3.43kg 18V CIRCULAR SAW SF2841 SF2841 CSC18P-M-060425.indd 11 2006-5-25 11:08:46... - Page 12 ACCESSORIES 1hr charger 1.5Ah Ni-cd battery pack Hex key Saw blade Ruler Dust extraction outlet SF2841 CSC18P-M-060425.indd 12 2006-5-25 11:08:46...
-
Page 13: Operation Instructions
Warning: After long usage the battery will become hot, let the hot battery cool down for 1 hour before recharging. 18V CIRCULAR SAW SF2841 SF2841 CSC18P-M-060425.indd 13 2006-5-25 11:08:47... - Page 14 (See fig5) 7. Base plate Adjusting the angle of the base plate (12) enables bevel cutting.The base plate must always be held firmly against the material being cut to reduce SF2841 CSC18P-M-060425.indd 14 2006-5-25 11:08:48...
- Page 15 Do not attempt to open or remove any of the components. 18V CIRCULAR SAW SF2841 SF2841 CSC18P-M-060425.indd 15 2006-5-25 11:08:49...
-
Page 16: Frequently Asked Questions
The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the red LED light should turn on when the battery is charging (See fig2). SF2841 CSC18P-M-060425.indd 16 2006-5-25 11:08:49... -
Page 17: Environmental Protection
F), as this will affect performance. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. 18V CIRCULAR SAW SF2841 SF2841 CSC18P-M-060425.indd 17 2006-5-25 11:08:49... - Page 18 L. A 13AMP (BS1363 or BS1363/A) plug must be used and a 3 AMP fuse must be fitted. 3 AMP FUSE BLUE N (NEUTRAL) BROWN L (LIVE) OUTER SLEEVE CABLE GRIP SF2841 CSC18P-M-060425.indd 18 2006-5-25 11:08:49...
-
Page 19: Declaration Of Conformity
EN 55014-2: 1997/A1: 2001 EN 60335-1: 1994/A11: 1995/A12, A1: 1996/A13, A14: 1998/A15, A2: 2000/A16: 2001 EN 60335-2-29: 1996/A11: 1997 Authorised Signatory Date: 15/04/06 Signature: Name: Peter Harries Screwfix Direct Ltd Quality Manager 2006 18V CIRCULAR SAW SF2841 SF2841 CSC18P-M-060425.indd 19 2006-5-25 11:08:49... - Page 20 SF2841 CSC18P-M-060425.indd 20 2006-5-25 11:08:49...
