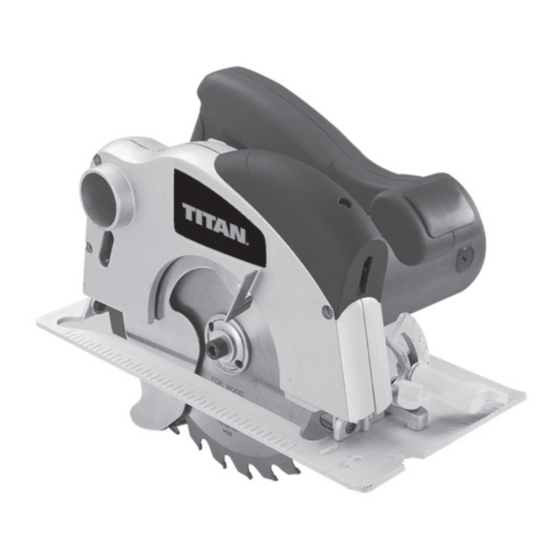

7 1/4" circular saw with laser

Advertisement

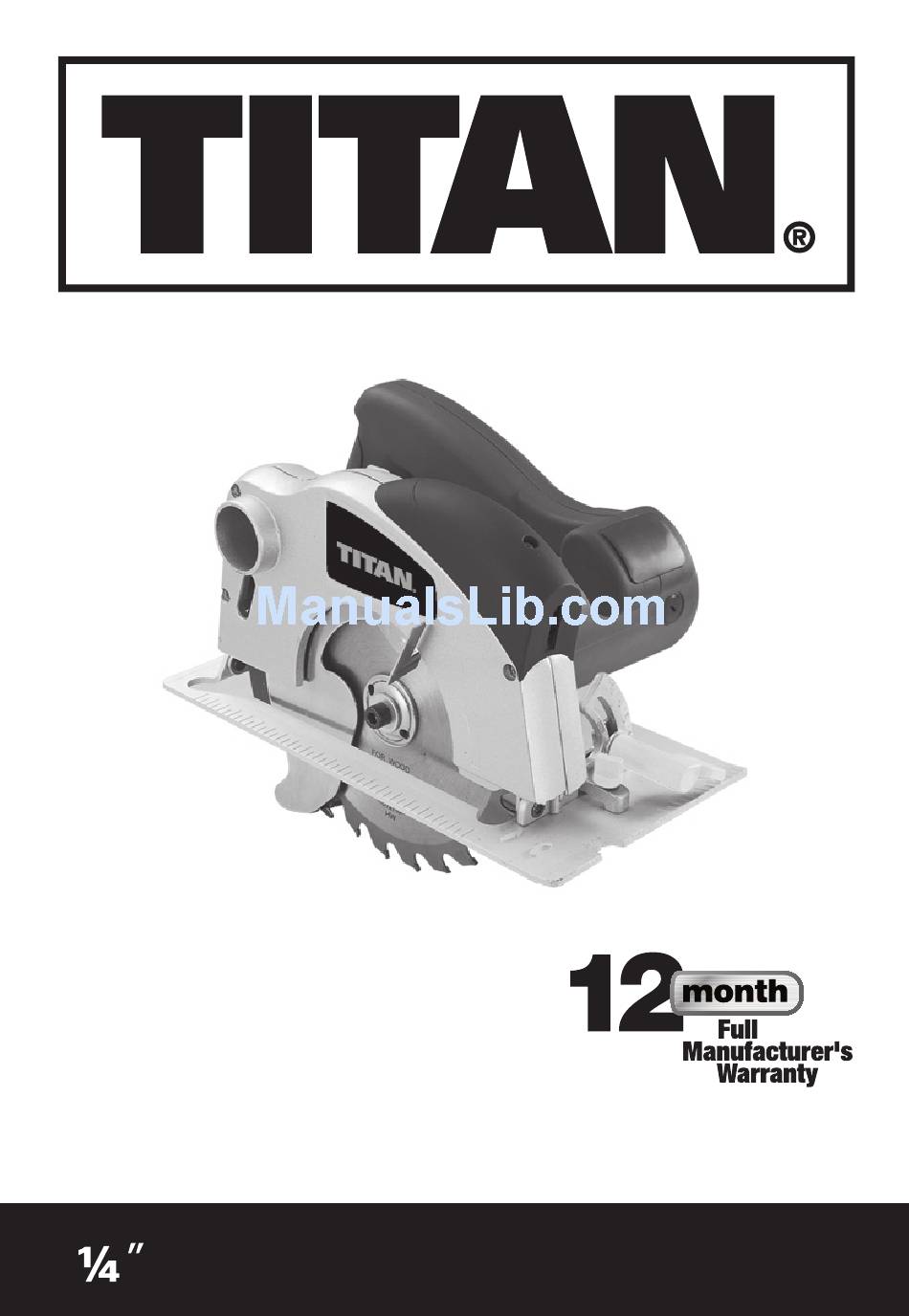

SAFETY AND OPERATING MANUAL
7
CIRCULAR SAW WITH LASER
SF185R2

Advertisement

loading

  Related Manuals for Titan SF185R2

  Summary of Contents for Titan SF185R2

  • Page 1 SAFETY AND OPERATING MANUAL CIRCULAR SAW WITH LASER SF185R2...
  • Page 3 This guarantee does not affect your statutory rights.This guarantee is only valid in the UK. For further technical advice, spare parts or repair service (outside of guarantee) please contact the customer helpline number on 0845 607 6380. CIRCULAR SAW WITH LASER SF185R2...
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS WARNING! Read all instructions.Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVETHESE INSTRUCTIONS 1. Work area. a) Keep work area clean and well lit. Cluttered and dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
  • Page 5 5. Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. CIRCULAR SAW WITH LASER SF185R2...
  • Page 6 HEALTH ADVICE WARNING! When drilling, sanding, sawing or grinding, dust particles will be produced. In some instances, depending on the materials you are working with, this dust can be particularly harmful to you (e.g. lead from old gloss paint). You are advised to consider the risks associated with the materials you are workingwith and to reduce the risk of exposure.You should: -- Work in a well-ventilated area.
  • Page 7: Important Note

    Ensure your mains supply voltage is the same as your tool rating plate voltage. Remove the mains plug from socket before carrying out any adjustment or servicing. SYMBOLS Read the manual Warning Wear gloves Wear dust mask,eye & ear protection CIRCULAR SAW WITH LASER SF185R2...
  • Page 8 1. ON/OFF (TRIGGER)SWITCH 2. LOCK OFF BUTTON 3. CUTTING DEPTH LOCK KNOB 4. FRONT HANDLE 5. LASER GUIDE 6. MOTOR HOUSING 7. MITRE CUTTING ADJUSTMENT GUIDE 8. MITRE CUTTING LOCK KNOB 9. PARALLEL GUIDE LOCK KNOB 10.PARALLEL GUIDE 11.MOVING GUARD 12.RIVING KNIFE(SEE FIGURE 9) 13.BLADE SECURING SCREW 14.BLADE GUARD LEVER...
  • Page 9: Technical Data

    Mitre limit: 0-45 Blade size: Ø185x2.8xØ16mm Double insulation: Weight 4.5kg NOISE AND VIBRATION DATA Sound pressure level: 91dB(A) Sound power level: 104dB(A) Vibration level: 2.1m/s ACCESSORIES Wrench: Allen key: Parallel guide: Dust tube adaptor: Battery: 2pcs CIRCULAR SAW WITH LASER SF185R2...
  • Page 10: Operation Instructions

    OPERATION INSTRUCTIONS WARNING: Before using your circular saw, be sure to read the instruction manual carefully. 1. ADJUSTMENTS With this saw there are two things you can adjust: the blade cutting depth and the mitre cutting angle. Fig 1 2. CUTTING DEPTH ADJUSTMENT (see fig1) 1.
  • Page 11 Allen key provided. 7. Release the blade guard. NOTE: Only use the correct diameter blades (185mm), rated speed of blade should be higher than rated speed of the machine. Use gloves when handling blades. Fig 8 CIRCULAR SAW WITH LASER SF185R2...
  • Page 12 9. RIVING KNIFE ADJUSTMENT (see fig9) 1. The riving knife prevents the blade from being jammed by the workpiece. It must always be adjusted when the blade is changed or the correct setting have been changed. 2. Loosen the hex head screws on the riving knife with the allen key (not supplied).
  • Page 13: Maintenance

    3. If a fault is suspected return to an authorised dealer to repair. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. CIRCULAR SAW WITH LASER SF185R2...
  • Page 14: Plug Replacement

    PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below.
  • Page 15: Declaration Of Conformity

    Yeovil BA 22 8RT Declare that the product CIRCULAR SAW SF185R2 Complies with the essential health and safety requirements of the following directives: 89/336 EEC, 93/68 EEC – EMC Directive. 73/23 EEC, 93/68 EEC – Low Voltage Directive. 98/37 EC – Machinery Directive.
