- Page 1 SAFETY AND OPERATING MANUAL 8” TABLE SAW SF08N5...
- Page 2 Congratulations on your purchase of a power tool from Screwfix Direct Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future. Your power tool comes with a 12-month guarantee,so should it develop a fault within this period contact Screwfix Direct Ltd on Freephone 0500 41...
-
Page 3: Safety Instructions
Use clamp or a vice to hold the work. It is safer than using your hand and frees both hands to operate the tool. 13. Do not overreach. Keep proper footing and balance at all times. 14. Maintain tool with care. Keep cutting tools sharp and clean for better and safer performance. Follow 8” TABLE SAW SF08N5... -
Page 4: Health Advice
instructions for lubrication and changing accessories. Inspect tool cord periodically and if damaged have it replaced by an authorised service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean and free of oil or grease. 15. Disconnect tools. When not in use, before servicing and when changing accessories such as blades, bits and cutters, remove the mains plug from the socket. - Page 5 10. Always use the appropriate safety equipment that is required for the product. e.g. Goggles / Safety Spectacles, Ear defenders (essential with tools with a noise rating of over 85dbA), Gloves and face masks. In all cases ensure that the safety equipment is in good condition. 8” TABLE SAW SF08N5...
- Page 6 SYMBOLS Read the manual Warning Wear gloves Wear dust mask,eye & ear protection...

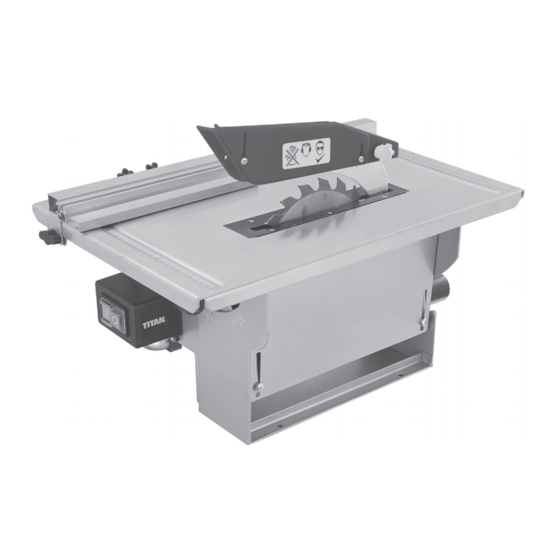

- Page 7 1. ON/OFF SWITCH 2. RIP FENCE 3. BLADE GUARD 4. RIVING KNIFE 5. BLADE 6. TABLE INSERT 7. METAL COVER 8. BLADE BEVEL SECURING KNOB 9. PUSH STICK 10. DUST EXTRACTION OUTLET 11. HOOKS FOR STORING PUSH STICK 8” TABLE SAW SF08N5...
-
Page 8: Technical Data
TECHNICAL DATA Voltage: 230V~50Hz Wattage: 800W S2 30min No load speed: 2950min TCT Blade size: Ø200x2.4xØ16mm Depth of cut at 0 35mm Depth of cut at 45 24.7mm Weight: 14kgs Rated operating time: on for 30mins,off for 30mins NOISE EMISSION Sound pressure level: 86.8 dB(A) Sound power level:... -
Page 9: Operation Instructions
Do not over-tighten the securing knobs. (See Fig 3) The rip fence supplied with the table saw has Fig 5 two different guide faces. For thick material you 8” TABLE SAW SF08N5... -
Page 10: Rip Sawing
may use the stop rail as shown in Fig 3.For thin material you may use the stop rail as shown in Fig 4.To change the height of the stop, slacken the two screws and pull the stop rail off the carrier rail. Turn the stop rail 90 to the left or right, depending on the required height of the stop, and place it back on the carrier rail. -
Page 11: Bevel Cutting
Warning: Excessive sawdust built around the motor could possibly ignite and cause damage to either the motor, table saw or your workshop. 8” TABLE SAW SF08N5... -
Page 12: Maintenance
MAINTENANCE Warning: Ensure the machine is discon nected from the main supply BEFORE any maintenance tasks or adjustments are carried out. Your Bench Table Saw requires very little maintenance. Carrying out those tasks specified below, will not only ensure the maximum safety of operation, but will also prolong the life of your machine. -
Page 13: Environmental Protection
Knife and bend back into shape if it is not exactly in line with the saw blade. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. 8” TABLE SAW SF08N5... -
Page 14: Plug Replacement
PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below. -
Page 15: Declaration Of Conformity
Houndstone Business Park Yeovil BA 22 8RT Declare that the product TABLE SAW SF08N5 Complies with the essential health and safety requirements of the following directives: 89/336 EEC, 93/68 EEC–EMC Directive. 73/23 EEC, 93/68 EEC–Low Voltage Directive 98/37 EC–Machinery Directive.
