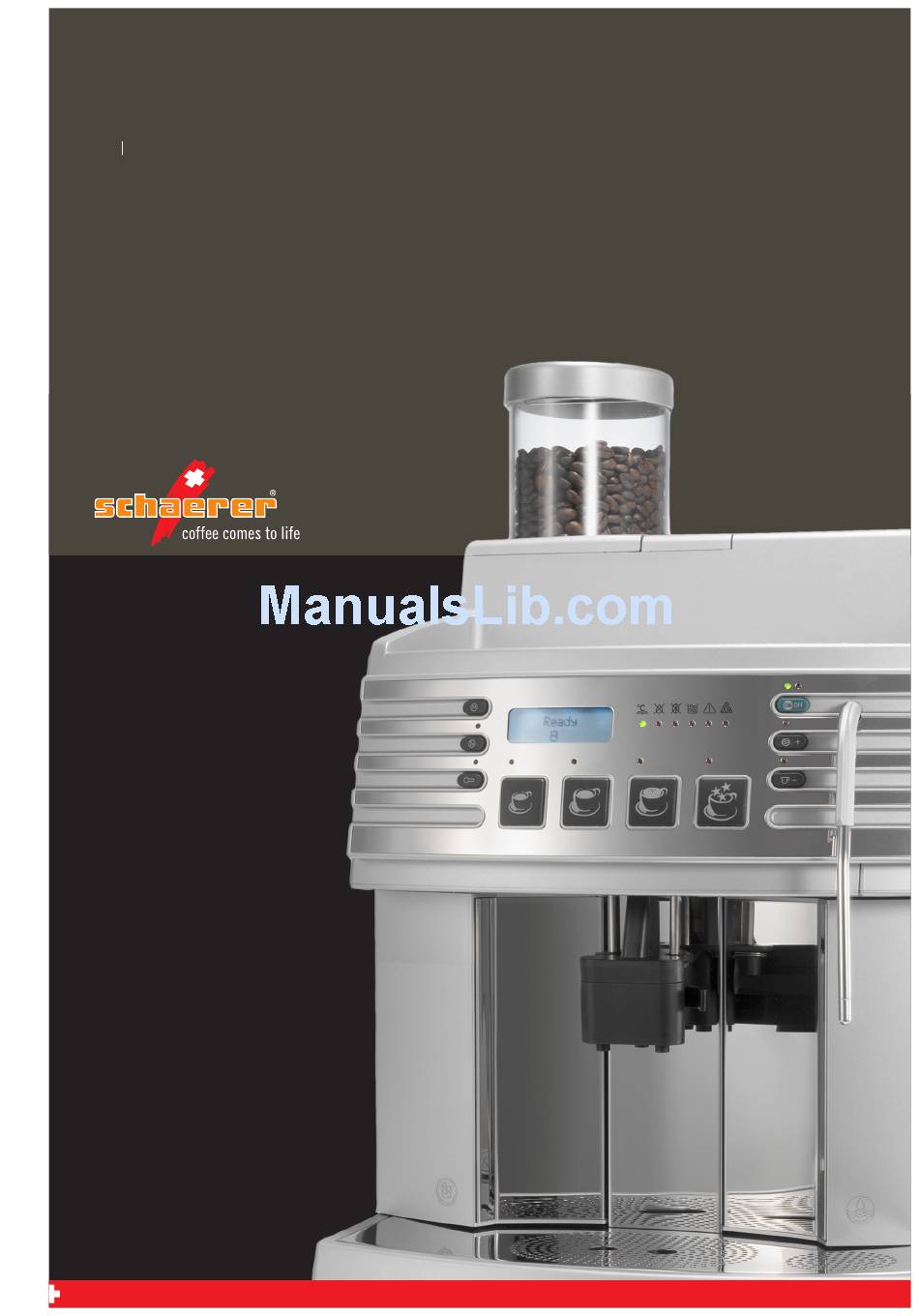

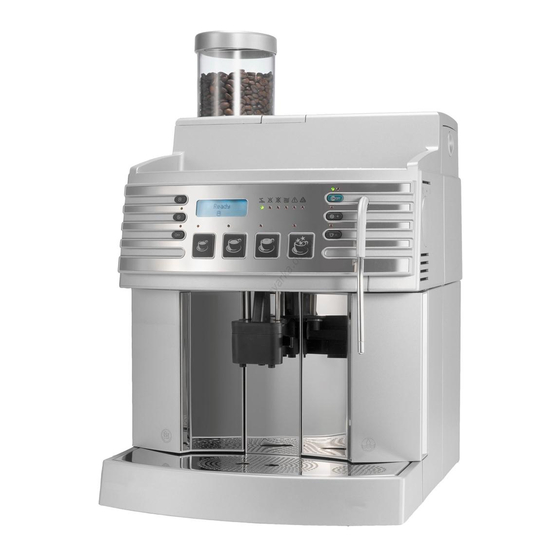

- Page 1 Schaerer Siena 1 / 2 V04 08.2007 Bedienungsanleitung, Seite 2 User manual, Page 35 Manuel d'utilisation, Page 69 Gebruiksaanwijzing, Pagina 103 Manual del usuario, Página 137 Návod k obsluze, Strana 171 Használati útmutató, Oldalt 205 SWISSMADE www.schaerer.com...
-
Page 2: Schaerer Siena
All of the information, technical data, pictures and illustrations used in this manual are based on the most current data available at the time of printing. Your machine may vary from those shown in the pictures (options). The company M. Schaerer Ltd. - Page 3 Hot water outlet Siena 1: Beverage outlet Drip grid Water tank Drip tray Swivel The position differs between * Illustration: Siena 2 Siena 1 and Siena 2. Indicator symbols: Display Bean container empty Grounds container Water tank empty Malfunction/brew unit Temperature...
-
Page 4: Safety Symbols
Introduction Safety symbols Observe the safety instructions on page 40! Exercise extreme caution when these Caution! Caution! symbols appear! Risk of damage to User at risk! machine! Caution! Caution! Hot steam! Caution! Caution! Hot surface! Risk of squeezing! Caution! -
Page 5: Table Of Contents
..............Preparing hot water (Siena 1) . - Page 6 Introduction Options ......................
-
Page 7: Safety Notes
Safety notes General At M. Schaerer AG, the highest degree of safety is one of the most important product features. The effectiveness of the safety devices is guaranteed only if the following instructions are ob- served to prevent injuries and health hazards: •... -
Page 8: Hygiene
Safety notes Disposal! For safety reasons, machines that have reached the end of their product life cycles must be rendered unusable. To do so, disconnect the power cord and sever the connector cable. After- ward, dispose of the device in accordance with regulations. -
Page 9: Intended Use
„General terms and conditions“ of M. Schaerer AG and this User Manual. In legal terms, any other use is not an intended use. The manufacturer accepts no liability for damage resulting from unintended use. -
Page 10: Product Description
Product description Product description Overview - machine (Refer to page 36) Overview - control panel (Refer to page 36) Detailed picture of the foamer head (Siena 2) 1. Foamer head 2. Corner p 3. Foam nozzle If no milk foam is dispensed, insert the supplied instrument (air valve pin) into the foam nozzle [ 3 ]. -
Page 11: Water Connection / Draining (Option)
Product description Water connection / draining (option) The water supply connection must be made in accordance with the applicable requirements and the regulations of the respective country. If the machine is connected to a newly installed water pipe, the pipe and the supply tube must be thoroughly rinsed so that no dirt particles can enter the machine. -
Page 12: Installation Plan For Siena 2
Product description Installation plan for Siena 2 BASI 2 - EN Version 04 08.2007... -
Page 13: Commissioning
Press the button to switch on the device (LED in the button lights up). Fill the bean container (Siena 1: 300 g Siena 2: 600 g). Close the bean container with the lid to form a tight seal. Only pure whole coffee beans may be used – no coffee with caramelised or aromatised beans. -
Page 14: Operation
Please notify customer service immediately. Filling coffee beans Fill only roasted coffee beans into the container. Siena 1: 300 g Siena 2 A well-sealed bean container prevents the loss of aroma. Making the coffee machine ready to operate... -
Page 15: Operating Modes
Operation Operating modes The Siena 1 / 2 has two (2) operating modes: << Stand by >> << Stand by >> The machine is switched off but still connected to the power supply. The following message appears on the display (shown left). -
Page 16: Preparing Hot Water (Siena 2)
Preparing milk foam (Siena 1) Milchschaum kann jederzeit bezogen und/oder nachdosiert werden. Place a cup under the steam outlet. Turn the rotary dial (on the right-hand side) to the [ Steam ] position. -
Page 17: Preparing Milk Foam (Siena 2)
Operation Preparing milk foam (Siena 2) Milk foam can be dispensed and/or added at any time. button and keep it pressed. Press and hold the cappuccino/macchiato button to dispense milk foam. „Milk“ appears on the display. Milk foam quality (installing the milk nozzle) Depending on the milk and milk temperature used, (see Chapter „Safety notes... -
Page 18: Programming
Programming Programming Your coffee machine is pre-programmed at the factory. You also have the option, however, of adjusting the device to your individual tastes. You can program the following product-related elements (refer also to the programming overview): Water volume - coffee quantity - pre-brew function In addition, you can program various device functions individually. -
Page 19: Overview: Product Programming (Coffee, Cappuccino)
Overview: product programming (coffee, cappuccino) Accessing the programming level:: Ready to access the programming level. Product, 2x, C Siena 1 + 2: Press button [ 1 ] or [ 2 ] (see page 52) + 0% + 0% #.## s Pre-brewing Ready End of product programming. -
Page 20: Overview: Product Programming (Milk Foam, Hot Water)
Programming Overview: product programming (milk foam, hot water) Accessing the programming level: Ready to access the programming level. Product, 2x, C Siena 2: Product programming: milk foam + 0% #.## s Ready End of milk foam programming. Siena 2: Product programming: hot water + 0% #.## s... -
Page 21: Overview: Programming Common Parameters
Programming Overview: programming common parameters Accessing the programming level: Bereit to access the programming level. Product, 2x, C Press the button English bestätigen. Temp. 86 °C Stand by +41318585111 Ex. software V3.03! 10:29:10 10.10.2007 Cleaning 00:00 Ready End of common parameter programming. - Page 22 Programming Accessing the programming level: Ready to access the programming level.. Product, 2x, C Press the button Code #### (if desired). Counter status? Lock button Descaling Prod. prog. Sys. prog. Counter 16 ° - 20 ° dH With coin tester option only:...
-
Page 23: Cleaning
Cleaning Cleaning his chapter describes the cleaning of the coffee machine. To achieve the best possible quality of the dispensed beverages, it is necessary to clean the machine properly and thoroughly on a daily and weekly basis. Please observe the safety notes on page 41! •... -
Page 24: Daily And Weekly Cleaning
Cleaning Daily and weekly cleaning Carefully read the information given in the user manual as it contains important information regarding safety,hygiene, use and maintenance of the machine. Never reach into the machine or under the beverage outlets during the automatic cleaning! button 3 times (execute daily)! If the display shows „Tablet“, the coffee system has to be cleaned before the milk system (see... -
Page 25: Coffee System Cleaning
Cleaning Coffee system cleaning: Milk system rinsing: (Siena 1 / Siena 2) (Siena 2) button. fresh water (± 150 ml). er (Volume: ± 1.5 Litre) under the outlet. der the outlet. don‘t press the button! Otherwise button twice. Cleaning programme is running! -
Page 26: Descaling
Place a container under the outlet Stand-by mode. (Volume: ± 2.0 Litre). Remove the outlet. Siena 1: Remove the water tank. Only appears if the steam gener- Turn the rotary knob (on the right side) Mix water and the descaling agent into ator temperature is over 90 °C! -
Page 27: Installing/Detaching The Foam Head (Siena 2)
Cleaning daily cleaning appears automatically. display appears: << Stand by >> Reinstall the outlet. Installing/detaching the foam head (Siena 2) Press the front of the foam head [ 1 ]. Remove the foam head by pulling it downwards [ 2 ]. -
Page 28: Troubleshooting
. (The indicator goes out when the light up? next beverage is dispensed). Siena 1: water ] position in order to bleed the device. Is there no milk foam (Siena 2)? brush into the milk nozzle (refer to page 60) -
Page 29: Service And Maintenance Work
Troubleshooting Service and maintenance work Even if the coffee machine is cleaned and maintained in an ideal manner, it must be serviced tends its product life cycle. Service request service technician.Once it is time to service the machine, the message „Service“ appears in the display alternately with the normal operation indicator. -
Page 30: Options
(see below). For safety reasons, the coin tester should be emptied every day. Bean container Various bean hoppers are available: Siena 1 = Maximum capacity 300 g. (also available for Siena 2) Siena 2 = Maximum capacity 600 g. -
Page 31: Base With Supports (Art. No.: 062489)
EC low-voltage directive 2004/108/EC EC Directive, Electromagnetic Compatibility Information about the declaration of conformity can be obtained from the manufacturer upon request: Manufacturer: M. Schaerer AG Gewerbestrasse 15 3302 Moosseedorf Switzerland info@schaerer.com www.schaerer.com For more information please contact your local dealer! -
Page 32: Cleaning Products
Appendix Cleaning products IBEDA cleaning tablet (Art.-No.: 062867) Before using the cleaning tablet, please read the information on the tablet‘s packaging as well as the safety data sheet („HEALTH & SAFETY DATA SHEET“). If you do not have this safety data sheet, please request it from your sales centre. -
Page 33: Emergency Information
508 mm Depth: 403 mm 460 mm with wastewater (option) Water tank (capacity): 2.4 litre Bean container: Siena 1: ± 300 g Siena 2: ± 600 g Empty weight: ± 15.7 kg Power cord (Length): 1.1 m Electrical socket: Do not use any multiple sockets, especially if de-... -
Page 34: Overview Of Accessories
Cleaning tablets IBEDA 062867 Measuring spoon 067111 Multi-tool adjusting knob 062985 Brush 062951 Brush set (10 pcs.) 061174 Accessories for Siena 1: Foam nozzle 062945 Accessories for Siena 2: Milk foam nozzle Milkpure 250 ml 071531 Air valve pin 061454 1 set... - Page 35 Appendix BASI 2 - EN Version 04 08.2007...
