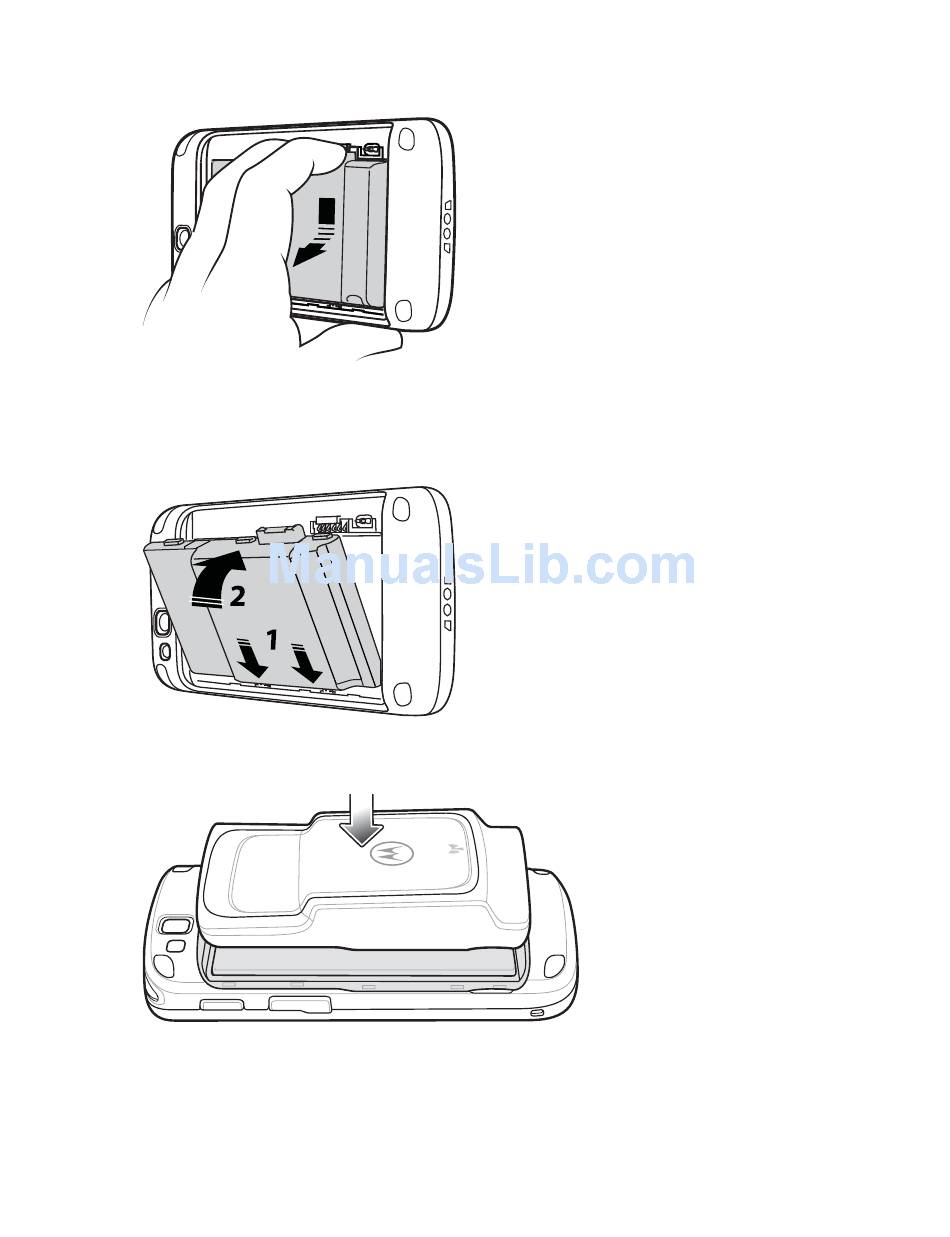

Figure 22: Remove 4,410 Mah Battery; Figure 23: Inserting The 4,410 Mah Battery; Figure 24: Align The Battery Cover - Motorola TC55 User Manual

Figure 22: Remove 4,410 mAh Battery

6 Rotate the battery out of the compartment.
7 Align the three tabs on the bottom of the replacement battery with the three slots in the battery compartment.
8 Press the battery down and rotate until it locks into place.

Figure 23: Inserting the 4,410 mAh Battery

9 Align the battery door with the back of the device.

Figure 24: Align the Battery Cover

10 Press around the edge of the cover to ensure that the battery door is seated properly.
