Figure 17: Remove 2,940 Mah Battery; Figure 18: Inserting The 2,940 Mah Battery; Figure 19: Align The Battery Cover - Motorola TC55 User Manual

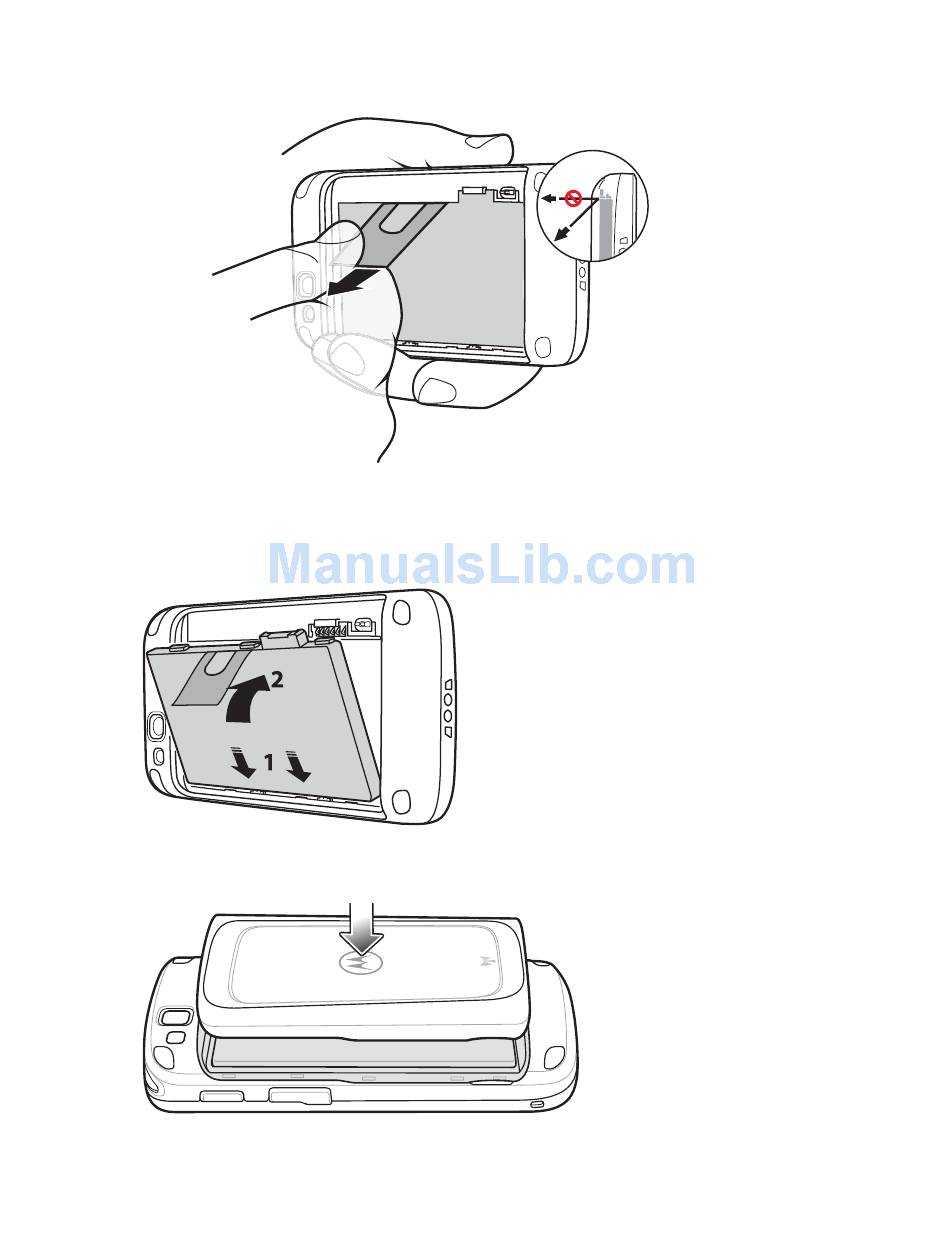

Figure 17: Remove 2,940 mAh Battery

6 Remove the battery from the battery compartment.
7 Align the three tabs on the bottom of the replacement battery with the three slots in the battery compartment.
8 Press the battery down and rotate until it locks into place.

Figure 18: Inserting the 2,940 mAh Battery

9 Align the battery door with the back of the device.

Figure 19: Align the Battery Cover

10 Press around the edge of the cover to ensure that the battery door is seated properly.
