36 | Getting Started
battery charging to keep the battery at acceptable temperatures. The TC55 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED.

Powering On the TC55

Note: Ensure that the battery cover is properly installed. Otherwise, the TC55 will not power on.
If the TC55 did not turn on when the battery was installed, press the Power button. The LED flashes green and the
device vibrates. The splash screen displays for about a minute as the TC55 boots.

Replacing the 2,940 mAh Battery

Procedure:
1 Press the Power button until the menu displays.
2 Touch Power off.
3 Touch OK.

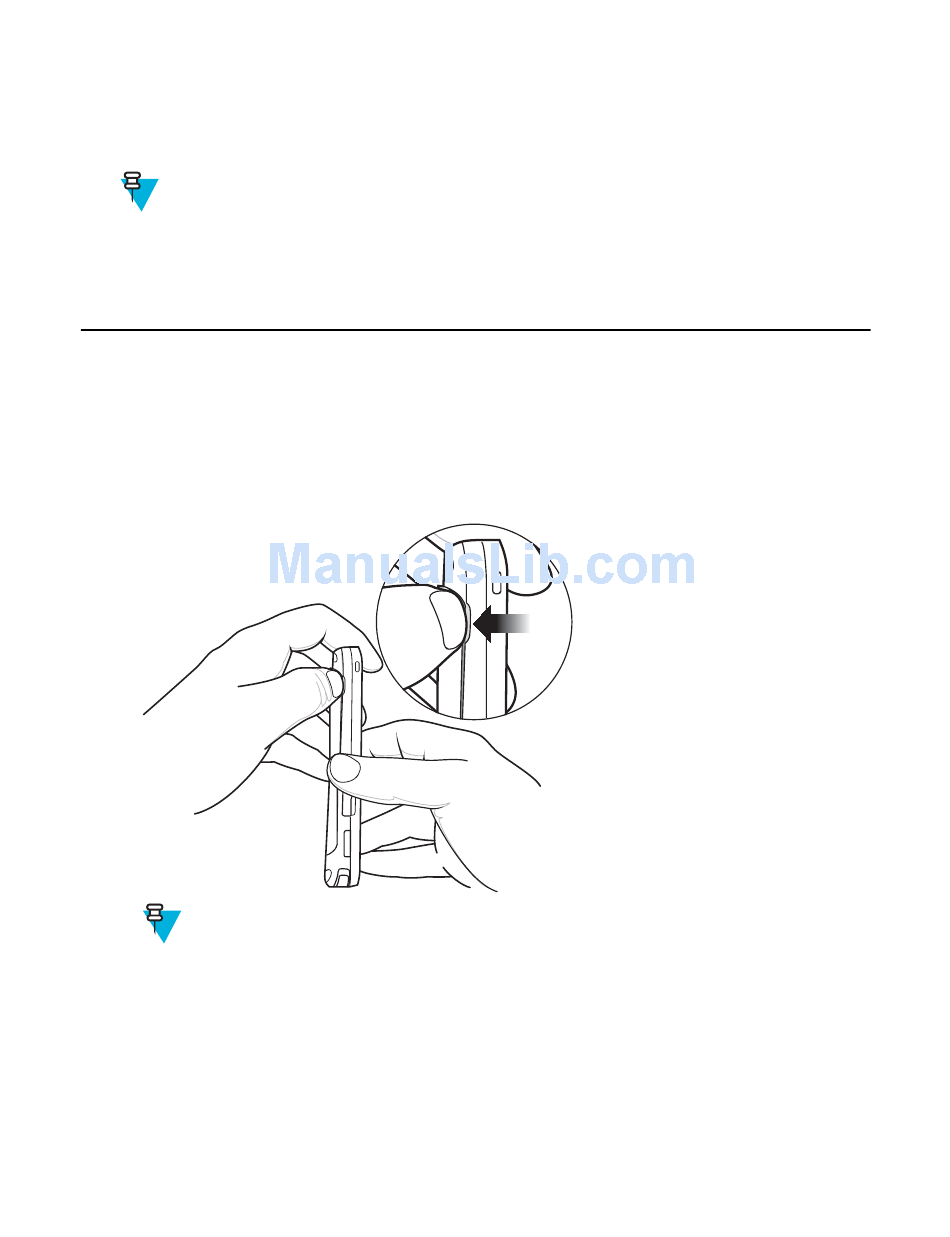

4 Place thumbnail at notch and lift the battery cover.

Figure 16: Remove the Battery Cover

5 Note: Do not pull the battery tab straight out. Pull at a 45 degree angle.
Pull the battery tab down at a 45 degree angle.
September 2013 | MN000015A01
