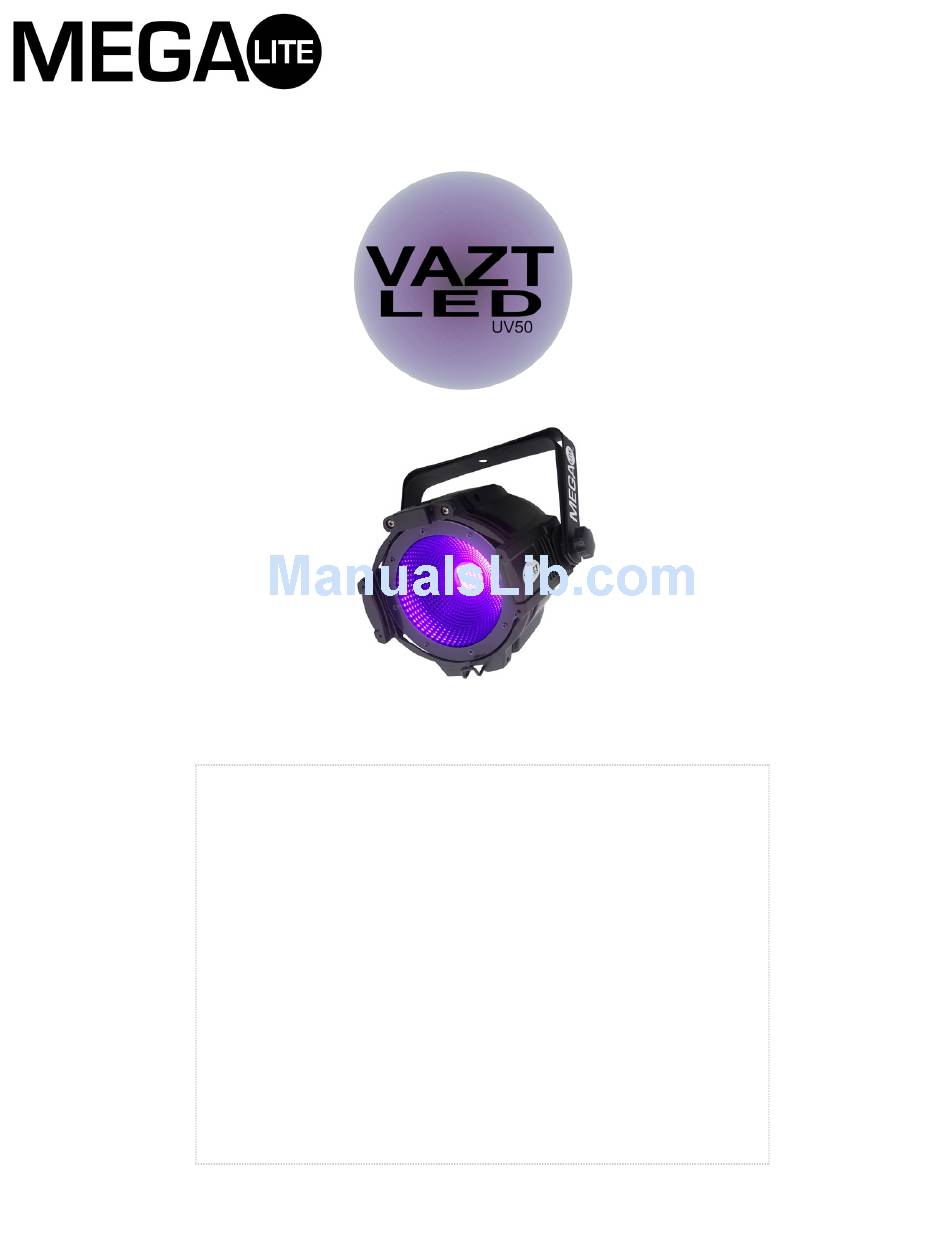

USER MANUAL
Safety Information.......................................................................................................... 3
Specifications.................................................................................................................... 4
Main Power Connection...............................................................................................5
DMX-512 Connection................................................................................................... 5
Main Control Menu.......................................................................................................... 6
DMX Profile......................................................................................................................... 8
Rigging the Fixture..........................................................................................................9
Parts List...............................................................................................................................9
Advertisement
Table of Contents
Related Manuals for Mega Lite 44010– Vazt UV50
Summary of Contents for Mega Lite 44010– Vazt UV50
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………………………………………………………………. 3 Specifications…………………………………………………………………………………………………….. 4 Main Power Connection…………………………………………………………………………………..5 DMX-512 Connection…………………………………………………………………...……………..5 Main Control Menu......................6 DMX Profile......................... 8 Rigging the Fixture…………………………………………………………………………………………….9 Cleaning & Maintenance....................9 Parts List..........................9... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Technical Information Part Numbers 44010– Vazt UV50 Mechanical Specifications 10” 8.75” DMX Connectors: 3 pin XLR connectors in and out Thermal: Maximum ambient temperature 104° Maximum surface temperature 140° Fastening System: Double Mounting Yoke 7.16” Display: Digital Power connection: Cable Mounted nema 5-15 Fixture Packaging Size: 10”... -
Page 5: Main Power Connection
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120 Ohm resistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it in to the last fixture on the signal run. Pre-manufactured terminator plugs are available for purchase from your Mega-Lite dealer (HOS-DMXT). -
Page 6: Main Control Menu
Display Menu The control board on the fixture base is your interface to access and control all the functions on the unit. Its digital display gives you a code view of the options and functions. The following will explain each function and its options. Press Enter to access the menu. - Page 7 DMX Address Press Enter to select the DMX start address channel. The first display will let you know what operation mode you are in. Use the up/down keys to select the desired mode (A,P,H). Press Enter to confirm. (first Letter will also change depending on what mode you are in) Use the up/down keys to select the desired start address press Enter to confirm Set Color Menu Press Enter to set a light intensity via display control.
-
Page 8: Dmx Profile
DMX Profile Vazt LED UV50 Mode A DMX Chanel Function Description Value Dimmer UV LED intensity 0-255 Vazt LED UV50 Mode P DMX Chanel Function Description Value Dimmer UV LED intensity 0-255 Strobe Strobe (slow to fast) 0-196 Random Strobe (slow to fast) 197-255... -
Page 9: Rigging The Fixture
Rigging the fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. -
Page 10: Warranty Information
• Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Mega-Lite 5718 Kenwick St San Antonio, TX 78238 Ph 210-684-2600 Fax 210-855-6279 www.mega-lite.com / info@mega-lite.com...
