USER MANUAL
Safety Information...............................................................2
Specifications.................................................................... 3
Main Power Connection..................................................... 4
DMX-512 Connection......................................................... 4
Main Control Menu......................................................................... 5
IR Controller Settings...........................................................7
DMX Profile.................................................................................... 8
Rigging the Fixture..............................................................9
Cleaning & Maintenance.................................................................9
Parts List.........................................................................................9
Warranty .........................................................................10
Advertisement
Table of Contents

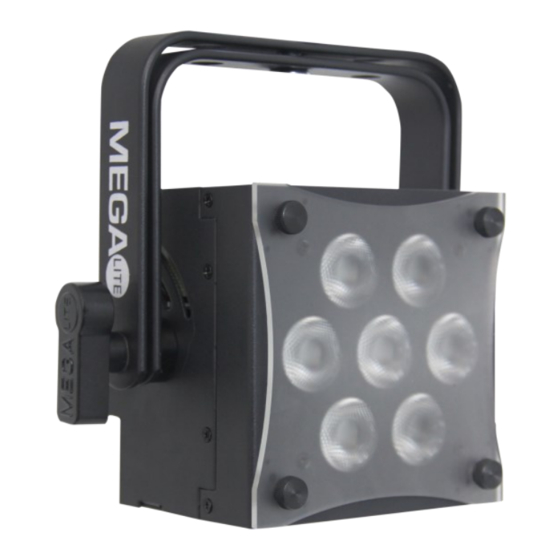

Related Manuals for Mega Lite baby color Q70 IR
Summary of Contents for Mega Lite baby color Q70 IR
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information…………………………………………………...…2 Specifications………………………………………………………….. 3 Main Power Connection…………………………………………….. 4 DMX-512 Connection……………………………………………..4 Main Control Menu................. 5 IR Controller Settings………………………………………………..7 DMX Profile..................8 Rigging the Fixture……………………………...……………………..9 Cleaning & Maintenance..............9 Parts List..................9 Warranty ……………………………………………………………….10... -
Page 2: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 3: Specifications
Specifications Part Numbers 4039– Baby Color Q70 IR Mechanical Specifications DMX Connectors: 5 pin XLR connectors in and out 8.12” 4.30” Thermal: Maximum ambient temperature 104° Maximum surface temperature 140° Fastening System: Double Mounting Yoke Display: 4.8” Power connection: Power Con (type) In & Out 7.8”... -
Page 4: Main Power Connection
Main Power Connection Caution! 1. Do not connect fixture to a dimmer system. 2. This unit has Auto switching power supply. It will respond to 100V or 240V automatically 3. This unit must be earthed. (electronically grounded) 4. Replace fuse only with the specified type and rating. (when possible) 5. -
Page 5: Main Control Menu
Display Menu CONTROL BOARD The control board on the fixture base is your interface to access and control all the functions on the unit. Its digital display gives you a code view of the options and functions. The following will explain each func- tion and its options. - Page 6 White Dimmer This function allows you to dim up or down the white LED’s . Press Enter use the up/down keys to select desired dim- mer settings. Press Enter to confirm the settings. Flash This function allows you to strobe all the LED’s. Press Enter use the up/down keys to select desired strobe speed set- tings from 0 to 15.
-
Page 7: Ir Controller Settings
IR Controller Baby Color Q70 IR is equipped with a IR Controller that can set lighting commands via hand controller. The Control must face the front of the fixture were the LEDs are located. IR controller can be used with the diffusion cover. -
Page 8: Dmx Profile
DMX Profile Baby Color Q70 3 Channel Mode DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 Baby Color Q70 4 Channel Mode DMX Chanel Function Description Value LED Color... -
Page 9: Rigging The Fixture
Rigging the Fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. - Page 11 Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
