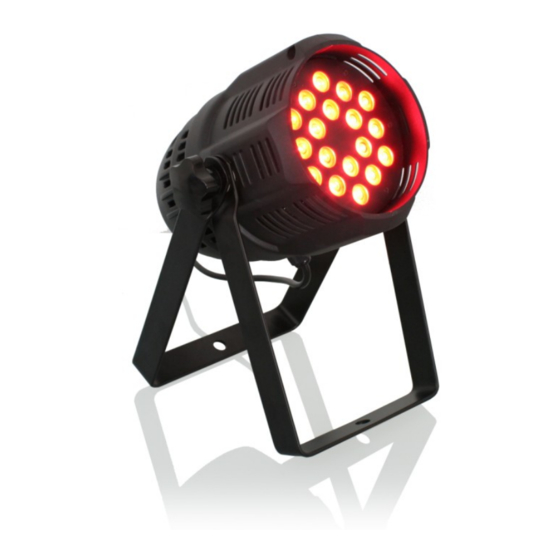

USER MANUAL
Table of Contents
Safety Information.......................................................................................................... 3
Specifications.................................................................................................................... 4
Main Power Connection...............................................................................................6
DMX-512 Connection................................................................................................... 6
Main Control Menu Tri-Chip....................................................................................... 7
DMX Profile Tri-Chip.........................................................................................................9
Main Control Menu Quad-Chip...............................................................................10
DMX Profile Quad-Chip..............................................................................................12
Rigging the Fixture.......................................................................................................13
Parts List............................................................................................................................13
Advertisement
Table of Contents
Related Manuals for Mega Lite Evricolor
Summary of Contents for Mega Lite Evricolor
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………………………………………………………………. 3 Specifications…………………………………………………………………………………………………….. 4 Main Power Connection…………………………………………………………………………………..6 DMX-512 Connection…………………………………………………………………...……………..6 Main Control Menu Tri-Chip…………………………………………………………………………… 7 DMX Profile Tri-Chip......................9 Main Control Menu Quad-Chip…………………………………………………………………….10 DMX Profile Quad-Chip………………………………………………………………………………….12 Rigging the Fixture………………………………………………………………………………………….13 Cleaning & Maintenance.....................13 Parts List..........................13... - Page 3 Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5.
-
Page 4: Specifications
Specifications Part Fixture 7110-EvriColor CM5 TRGB (Red, Green, Blue) 7111-EvriColor CM5 TACW (Amber, Cool White, Warm White) 7112-EvriColor CM5 QRGBW (Red, Green, Blue, White) 7113-EvriColor CM5 PRGBWA (Red, Green, Blue, White, Amber) Mechanical Specifications DMX Connections: XLR 3 pin Or XLR 5 Pin 6.75”... - Page 5 Ordering Information LED Color Tri Beam Angle Fixture Color DMX Input Item Number 7110 18Tri x 3W TRGB Tri Red ,Green 15° BLAK Black 3 pin in and out Blue 25° WHIT White 5 pin in and out 45° XXXX Custom TACW Tri Amber,...
-
Page 6: Main Power Connection
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120 Ohm resistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it in to the last fixture on the signal run. Pre-manufactured terminator plugs are available for purchase from your Mega-Lite dealer (HOS-DMXT). -
Page 7: Dmx Address
Main Control Menu for 7110 or 7111 Tri Chip LED model The control board on the fixture base is your interface to access and control CONTROL BOARD all the functions on the unit. Its digital display gives you a code view of the options and functions. - Page 8 Flash This function allows you to strobe the LED’s on the whole . Press Enter use the up/down keys to select desired flash settings. Press Enter to confirm the settings. Fade Scroll This function allows you to fade the LED’s on the whole strip from one color to another. Press Enter use the up/down keys to select desired fade speed settings from 0 to 20.
- Page 9 DMX Profile for 7110 Tri R,G,B Chip LED model EvriColor 3 Channel Mode DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 EvriColor 4 Channel Mode...
- Page 10 DMX Profile for 7111 Tri A,W,C Chip LED model EvriColor 3 Channel Mode DMX Chanel Function Description Value LED Color Amber LED intensity 0-255 LED Color Warm White LED Intensity 0-255 LED Color Cool White LED Intensity 0-255 EvriColor 4 Channel Mode...
- Page 11 Main Control Menu for 7112 Quad Chip LED model CONTROL BOARD The control board on the fixture base is your interface to access and control all the functions on the unit. Its digital display gives you a code view of the options and functions.
- Page 12 Flash This function allows you to strobe all the LED on full . Press Enter use the up/down keys to select desired flash speed settings from 0 to 15. Press Enter to confirm the settings. Fade Scroll This function allows you to fade the LED’s from one color to another. Press Enter use the up/down keys to select desired fade speed settings from 0 to 15.
- Page 13 DMX Profile for 7112 Quad Chip LED model EvriColor 4 Channel Mode DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 LED Color White LED Intensity...
- Page 14 Main Control Menu for 7113 Penta R,G,B,W,A Chip LED CONTROL BOARD DMX Mode Fade Scroll Fade Scroll Green Dimmer Blue Dimmer White Dimmer Amber Dimmer DMX Address Red Dimmer 0-15 0-15 00-15 00-15 0-15 0-15 1-512 5-Ch 0-15 Menu Down Enter 8-Ch DMX Address...
- Page 15 White Dimmer This function allows you to dim up or down the white LED’s . Press Enter use the up/down keys to select desired dimmer set- tings. Press Enter to confirm the settings. Amber Dimmer This function allows you to dim up or down the amber LED’s . Press Enter use the up/down keys to select desired dimmer set- tings.
- Page 16 EvriColor 5 Channel Mode DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 LED Color White LED Intensity 0-255 LED Color Amber LED Intensity 0-255 EvriColor 8 Channel Mode...
-
Page 17: Rigging The Fixture
When rigging the unit always be secured with a secondary safety attachment. The installation location of the EvriColor CM5 has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be checked at least one time a year by a skilled person. -
Page 18: Warranty Information
Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Mega-Lite 5718 Kenwick St San Antonio, TX 78238 Ph 210-684-2600 Fax 210-855-6279 www.mega-lite.com / info@mega-lite.com...
