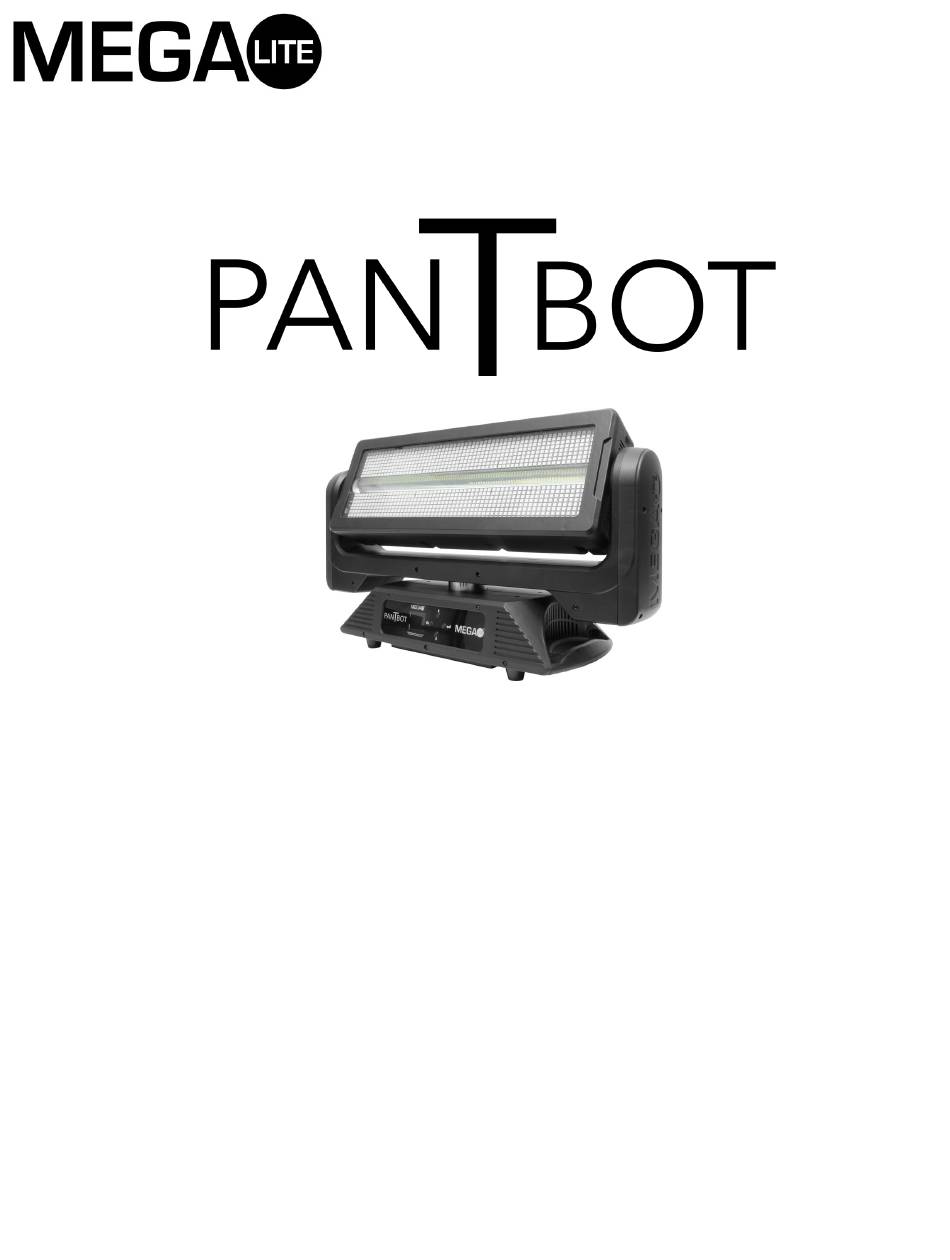

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information Technical Information Main Power Connection DMX-512 Connection Segment Position Size and Weight Main Control Menu DMX Profile Item List Rigging the Fixture Cleaning & Maintenance... -
Page 2: Safety Information
2. Use quality clamps or bolts when positioning unit 3. Do not open unit while it is on, risk of electrical shock. What is Included 1pc Pan T Bot Fixture 1pc Power Con (type) to Nema 5-15 Cable 2pc Quick Connect Clamp Mounts... -
Page 3: Technical Information
Technical Information Part Numbers Road Case Fixture 1187-Pan T Bot CAS-1187-2 2 Unit Road Case Mechanical Specifications Pan Angle: 540° 8/16 bit Tilt Angle: 270° 8/16 bit DMX Connectors: Panel Mounted 3 and 5-pin XLR connectors in/out Artnet Connection: Panel Mounted RJ45 In and Out Power Connections: Panel Mounted Power Conn (Type) Power in/out connection. -
Page 4: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 240V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. Power Link max 3 units at 110V and 6 units at 220V. -
Page 5: Segment Position
Segment Positions White White White White White White White White White White... -
Page 6: Size And Weight
Size and Weight 24.5” 4.2” 1.85” 8.35” 14.5” 4.3” 7.6” 4.4” 1.8” 20.9” 1.8” 2.75” 19” 2.75” Size 24.5" X 7.6" X 14.5" Weight 36lb Packaged 28" X 18" X 11.5" 38.6lb... -
Page 7: Main Control Menu
Main Control Menu The control board on the fixture is your interface to access and control all the functions on the unit. Its digital display gives you a code view of the options and functions. The following will explain each function and its options. - Page 8 Settings Systems Settings Press Home button. Use the up/down to select the Settings function press En- DMX Address ter to engage. Select from the 5 different setting options. Mode 23Ch Settings System Info Artnet Display Display Rev Pan Rev Tilt Rev DMX Fail Language Artnet:...
-
Page 9: Dmx Profile
DMX Profile Pan T Bot 23Channel Mode DMX Channel Function Description Value Init 0-255 Pan Fine Pan Fine 0-255 Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 Speed Pan and Tilt Speed (fast to slow) 0-255 Dimmer Dimmer (off to full) - Page 10 No Function 7-12 13-18 19-24 25-30 31-36 37-52 43-48 49-54 55-60 61-66 67-72 73-78 79-84 85-90 91-96 97-102 103-108 Alpha Numeric 109-114 115-120 Display 121-126 127-132 133-138 139-144 145-150 151-156 157-162 163-168 169-174 175-180 181-186 187-192 193-198 199-204 205-210 211-216 Right Arrow 217-222 Down Arrow...
- Page 11 Pan T Bot 256 Ch Mode DMX Channel Function Description Value Init 0-255 Pan Fine Pan Fine 0-255 Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 Speed Pan and Tilt Speed (fast to slow) 0-255 Control No Function 0-127 Reset...
-
Page 12: Item List
Item List Part Number Description 1187-BEZ-ARM Arm Plastic Housing 1187-BEZ-BAS Base Plastic Housing 1187-BEZ-HAN Handel Plastic Housing 1187-BEZ-HEA Rear Head Plastic Housing 1187-BEZ-LEN Front Head Plastic Housing 1187-BEZ-YOK Yoke Plastic Housing (single piece) 1187-FAN-60 60mm Fan 1187-FAN-90 90mm Fan 1187-LED-MOD-RGB Led Module RGB 1187-LED-MOD-WHI Led Module White... -
Page 13: Rigging The Fixture
Rigging the Fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injuries if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. - Page 15 Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
