Summary of Contents for Atlona AT-HDVS-RX
-

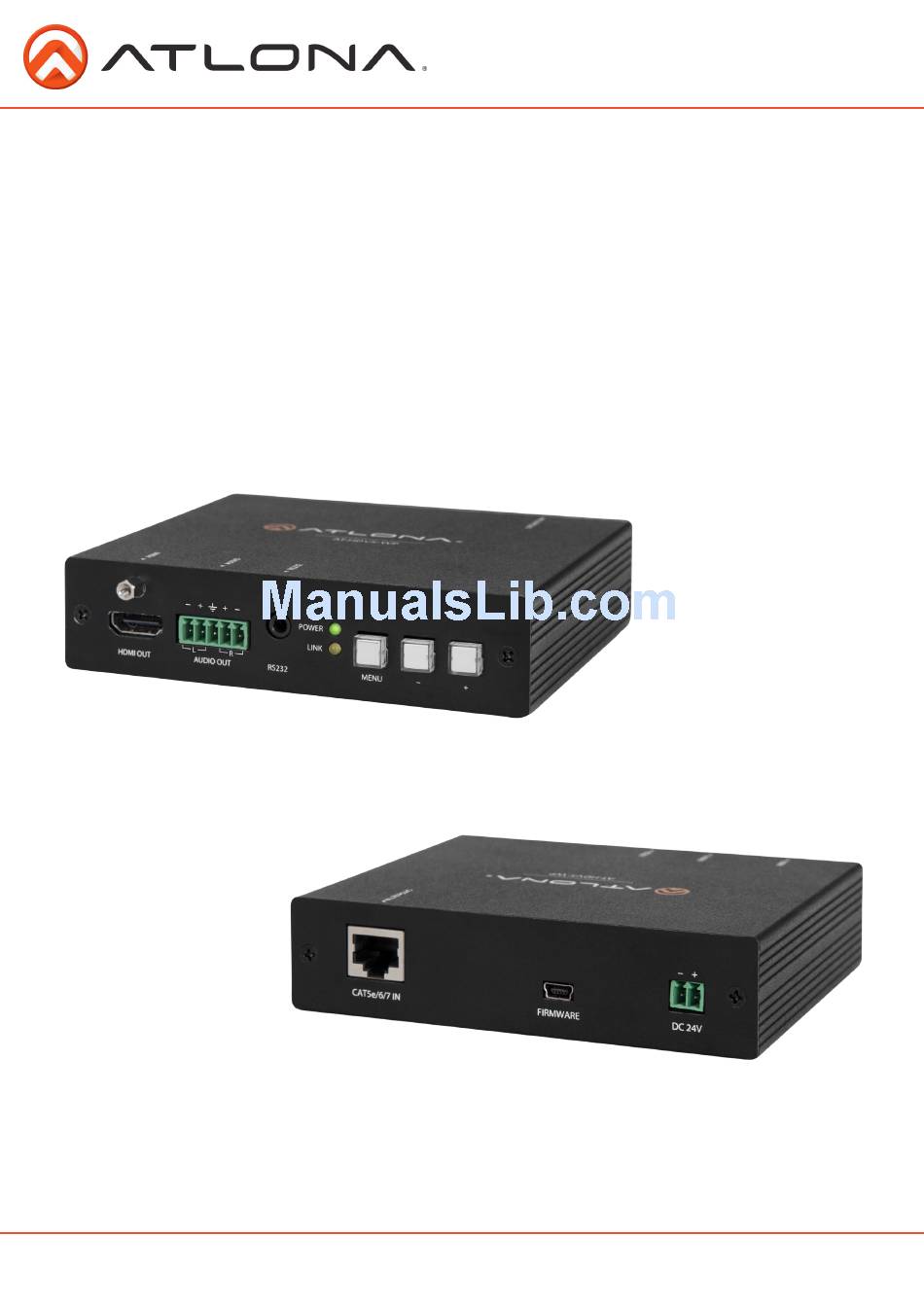

Page 1: User Manual
Atlona HDBaseT to HDMI Receiver/Scaler with Audio De-Embedding AT-HDVS-RX User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
..................4 5. OSD Menu ..................5-6 6. RS-232 ..................7-9 7. Connection and Installation ..................10 8. Specifications ..................11 9. Safety Information ..................12 10. Warranty ..................13 11. Atlona Product Registration ..................14 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Atlona HDVS recei ver box was designed to smooth the transition from analog to digital displays in schools and businesses, allowing advanced HDMI display devices to be used with the many VGA computers still in use. Many displays don’t support the resolutions and refresh rates typical of VGA sources. -
Page 4: Panel Description
2. FIRMWARE: Connect to a PC using a mini USB to USB for firmware updating 3. DC 24V: Connect included 24V DC adapter here to power HDVS-RX and compatible transmitters HDMI OUT AUDIO OUT RS232 MENU Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Osd Menu
Yes or No H Size % 0 to 50% V Size % 0 to 50% Menu Back Audio Audio On/Off On or Off (mute) HDMI Audio On or Off L/R Audio On or Off Menu Back Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 6 Keeps control in same state as projector. Match settings with lamp delay on projector in 5 to 300 seconds. Standby (min.): Adjusts period of time before scaler goes into standby following loss of signal. Default is 1 minute Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 7: Rs-232
---- Not used ---- Not used Control Software Control software and instructions for ease of use can be found on the AT-HDVS-RX webpage on atlona.com. URL: http://www.atlona.com/HDVS-RX.html ( instructions/software found under the “Downloads” tab Set Up To set up the RS-232 hyperterminal (if not using 3rd party software) use the following steps: 1. - Page 8 TX, TXWP=AT-HDVS-TX-WP WP_Input[a]$ [a] ? , Hdmi1 , Hdmi2 , Vga Select input source WP_Input[a]$ [a] ? , Hdmi , Vga Select input source [a] ? , On , Off WP_Display[a]$ Display On/Off control Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 9: Rs-232
2. Each command and feedback is terminated with a carriage return. 3. Spaces aren’t allowed except in projector display on/off command strings. 4. AT-HDVS-RX RS-232 port settings: 115200 bps, 8 bit data length, No parity bit, 1 bit stop-bit, No flow control. -
Page 10: Connection And Installation
Connection and Installation Video HDBaseT Audio LINK DISPLAY ON/OFF HDMI IN INPUT VGA IN AUDIO IN SELECT AT-HDVS-TX-WP CAT5e/6/7 IN FIRMWARE DC 24V POWER LINK HDMI OUT AUDIO OUT RS232 MENU Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 11: Specifications
1.18 x 4.8 x 4.92 in 30 x 122 x 125 mm Weight 0.67 0.31 Temperature Operating Storage 32°F to 104°F -4°F to 140°F 0°C to 40°C 20°C to 60°C Certifications CE, FCC, RoHS, cULus for power supplies Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 12: Safety Information
It may also cause damage to your AT-HDVS-RX. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 13: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 14: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
