Installation Guide
and Users Manual
UC200, UC400, UC600 Series
Under Cabinet
Range Hoods
Available sizes: 24", 30", 36"
IMPORTANT:
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference

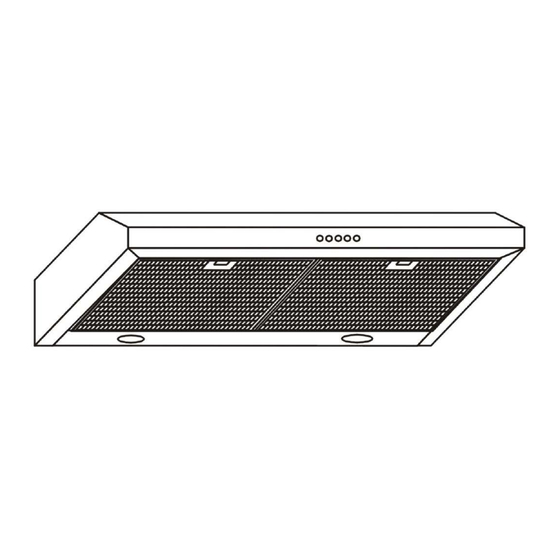

Under Cabinet Range Hood
Rev. 1032u.3a
Advertisement
Table of Contents
Related Manuals for Spagna Vetro UC400 Series
Summary of Contents for Spagna Vetro UC400 Series

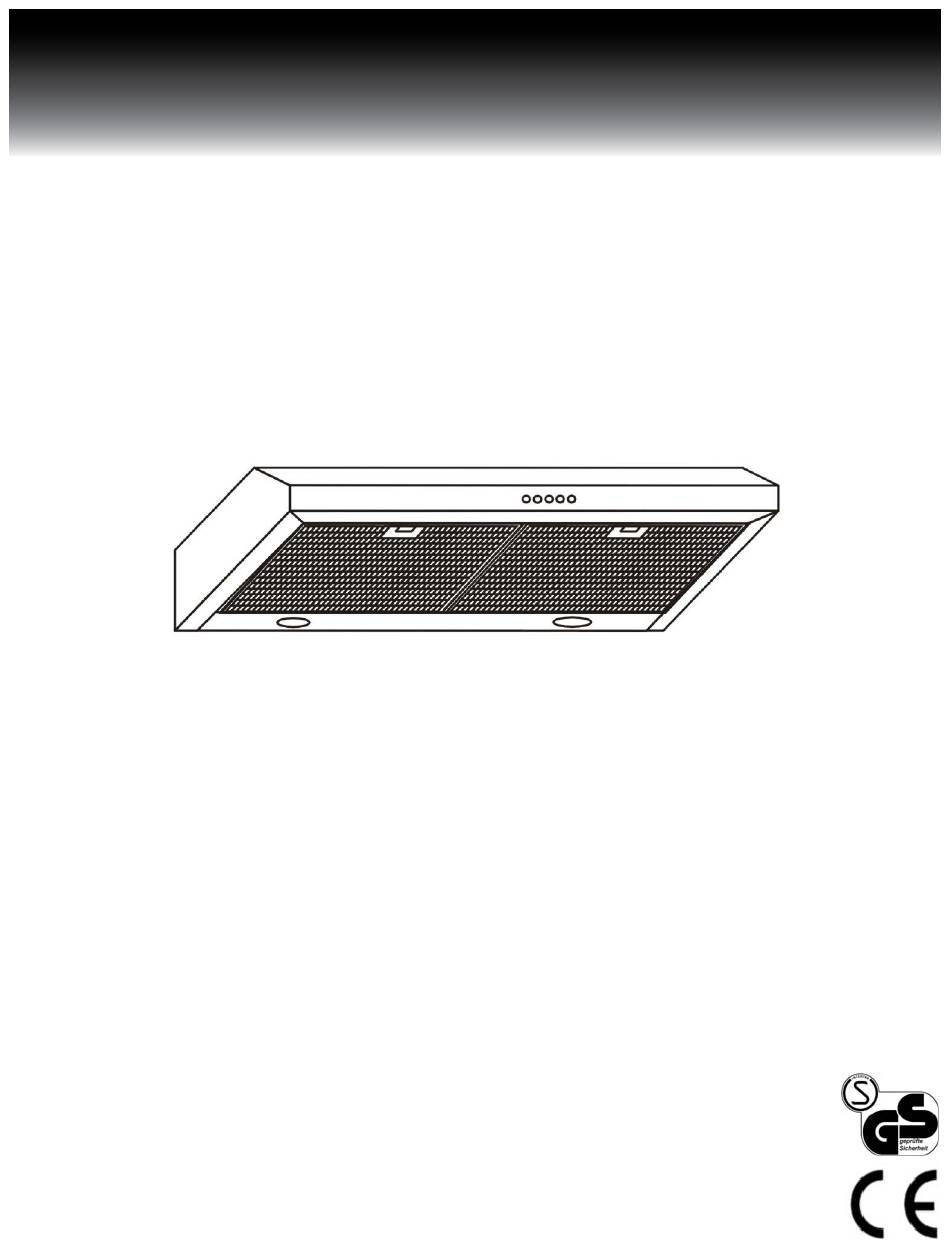

- Page 1 Installation Guide and Users Manual UC200, UC400, UC600 Series Under Cabinet Range Hoods Available sizes: 24”, 30”, 36” IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Under Cabinet Range Hood Rev.
- Page 2 Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction.
-
Page 3: Table Of Contents
Important Safety Notice Table of Contents Read all Instructions before Installing and operating this appliance INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........15 • Clean ventilating fan frequently. Parts supplied...........4 Use and care information.......16 • Always use appropriate cookware and utensils size. Venting requirements........5 Specifications..........16 •... -
Page 4: Parts Supplied
Parts Supplied: Venting Requirements Height & Clearance • Vent system must terminate to the outside (roof or side wall). • DO NOT terminate the vent system in an at- tic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall caps. -
Page 5: Calculating Vent System Length
Venting Methods IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separate- IMPORTANT: ly) must be used to maintain maximum airflow efficiency. • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or •... -
Page 6: Preparation
Ductless Conversion Preparation • Ductless conversion is intended for applications where an exhaust duct work is not possible to be installed. WARNING When converted, the hood functions as a purifying hood rather than an exhaust hood. Fumes and exhaust Advanced Preparations: from cooking is drawn and filtered by a set of charcoal filters. -
Page 7: Installation
Installation Installation Figure 3: Cabinet Bottom View (Continued) Installations (refer to Page 4 for parts): Measure the distance between stove top and the bottom of range hood. A distance of 27” to 30” is recommended*. *Due to different ceiling height configurations, recommend- UC200-2000 Class ed height may not be applicable. -
Page 8: Range Hood Operations
Installation Range Hood Operations (Continued) Control Panel Layout and Buttons Configurations: Figure 5: Cabinet Front View UC200-4130W Centerline Turning Fan ON: Hood Electrical Always turn fans ON couple minutes before cooking to establish air flow and allow fans to run for a few minutes Mounting Wire after cooking for cleaner air in the kitchen. -
Page 9: Troubleshooting
Troubleshooting Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. - Page 10 • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. UC400-Measurements Front View Rear View: Circuit Diagram: UC200 Top View: NOTE: Wiring Diagram shown above with GU10 light configuration. A transformer is required for MR16/J4 Lights. Page 17 Page 16...
-
Page 11: Warranty
Maintenance Warranty SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! TO OBTAIN SERVICE UNDER WARRANTY: For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will You must present proof of original purchase date. help preserve the appearance of the range hood. - Page 12 Service visits not covered under warranty will carry a service charge. Spagna Vetro Appliances Inc Before Installation: Return for exchange or refund (please see above for acceptable returns).
