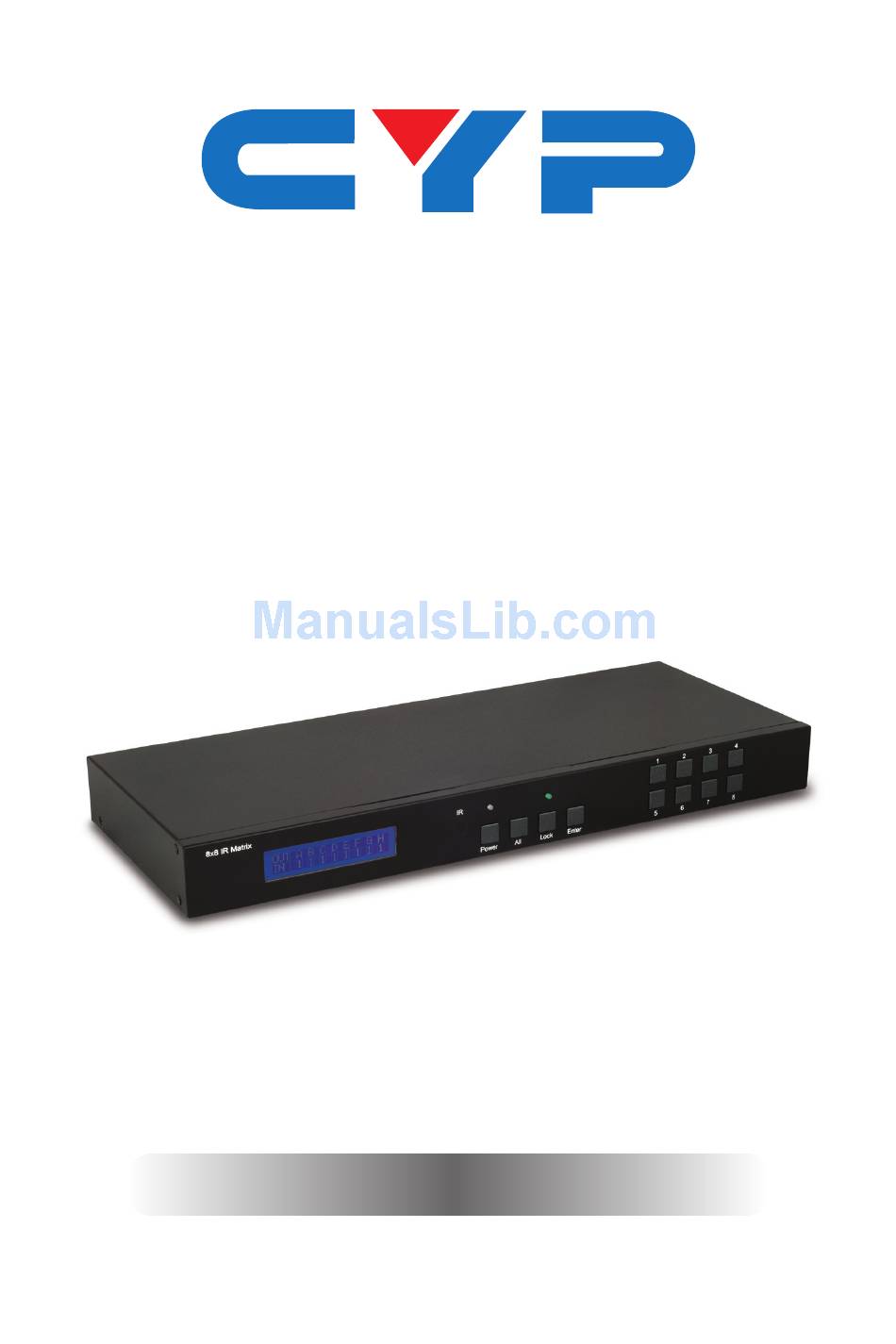

  • Page 1 CMIR-882 8×8 Bi-directional Infrared Matrix Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 IR Data Codes ........6 6.5 DIP Switch Settings ......6 6.6 IR Cable Pin Assignment....7...
  • Page 6: Introduction

    1. INTRODUCTION The Bi-directional Infrared Matrix is designed to work alongside the 8×8 HDMI matrix, providing control of up to 8 source devices from up to 8 display locations. Using the original or programmable remote controls, source devices such as DVD/Blu-ray players or satellite/set-top boxes can be controlled from any location.
  • Page 7: Features

    5. FEATURES • Supports independent IR input and output selection and control • Supports an IR frequency range of 30 kHz~50 kHz • Use your existing remote controls or programmable/universal remote controls • Supports bi-directional IR from input and output locations •...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 8x8 IR Matrix Power Lock Enter LCM: Displays the setting information of each input and output setting. IR: IR Receiver window (accepts the remote control signal of this device only). Power: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode.
  • Page 9: Rear Panel

    6.2 Rear Panel SOURCE RS232 DC 5V RS232 MAIN RS-232 AUX: Connect to a device that can be controlled (via D-Sub 9-pin male cable) by RS-232 commands e.g. the 8x8 HDMI Matrix. RS-232 MAIN: Connect to a PC or control system with D-Sub 9-pin male cable for the transmission of RS-232 commands.
  • Page 10: Remote Control

    Source Out All: Connect to a single IR blaster cable for IR signal transmission, IR signals will be relayed from all TV outputs (A~H) at the same time. Place the IR blaster in direct line-of-sight of the equipment to be controlled. DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet.
  • Page 11: Ir Data Codes

    6.4 IR Data Codes DATA DATA 6.5 DIP Switch Settings SELECT DIPSWITCH CUSTOM CODE Output A 807F  Output B 807B  Output C 8077  Output D 8073  Output E 803F  Output F 803B  Output G 8037 ...
  • Page 12: Ir Cable Pin Assignment

    IR Signal Power 5 V Grounding Note: Both the IR Extender and Blaster support a frequency of 30~50 kHz. 6.7 RS-232 Pin Assignment CMIR-882 REMOTE CONTROL CONSOLE Assignment Assignment Baud Rate: 19200 bps/A or 9600bps/B Data Bit: 8-bit Parity: None...
  • Page 13: Rs-232 Commands A

    6.8 RS-232 Commands A Command Description A1~A8 Switch output A to 1~8 B1~B8 Switch output B to 1~8 C1~C8 Switch output C to 1~8 D1~D8 Switch output D to 1~8 E1~E8 Switch output E to 1~8 F1~F8 Switch output F to 1~8 G1~G8 Switch output G to 1~8 H1~H8...
  • Page 14: Connection Diagram

    7. CONNECTION DIAGRAM ZONE ZONE ZONE Displays HDMI Outputs IR Out/In Receiver Units Power Link Power Link Power Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 1 IR 2 Extender Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out CAT5e/6 In...
  • Page 15 ZONE ZONE ZONE ZONE IR In (All) IR Out Link Power Link Power Link Power Link Power Link IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out CAT5e/6 In...
  • Page 16: Specifications

    8. SPECIFICATIONS IR Frequency 30 kHz to 50 kHz TV Ports 8×Independent IR Extenders 1×All IR Extender Control 8×Independent IR Blasters 1×All IR Blaster Control Source Ports 8×Independent IR Extenders 1×All IR Extender Control 8×Independent IR Blasters 1×All IR Blaster Control Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified)
  • Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130219 MPM-CMIR882...
