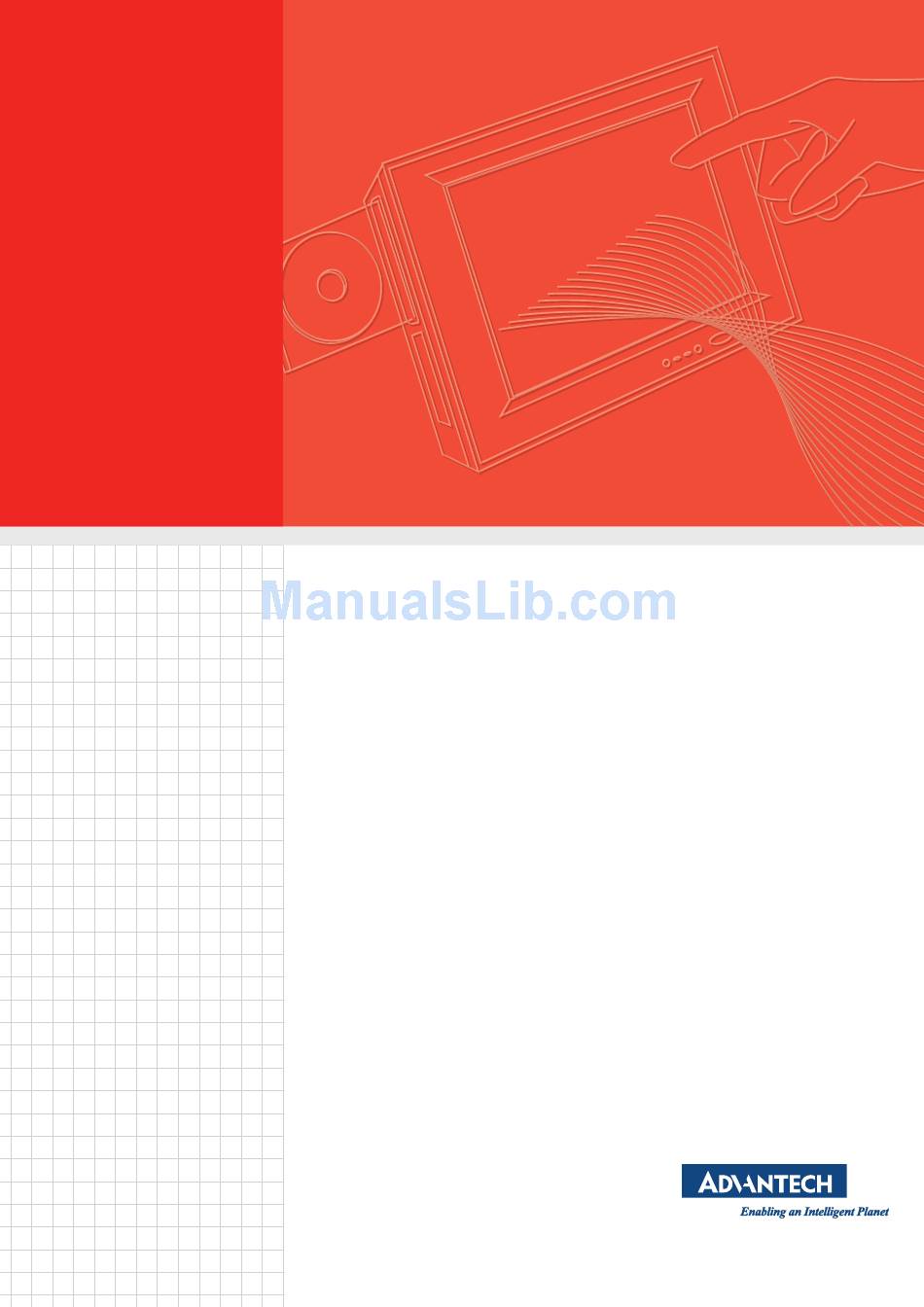

- Page 1 User Manual PPC-L157T Intel® Atom N270 Processor- based Fanless Panel PC with 15" TFT-LCD...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 3: Declaration Of Conformity
Consult the dealer or an experienced radio/TV technician for help. Warning! Any changes or modifications made to the equipment which are not expressly approved by the relevant standards authority could void your authority to operate the equipment. PPC-L157T User Manual... -
Page 4: Packing List
If any of these items are missing or damaged, contact your distributor or sales repre- sentative immediately. Additional Information and Assistance Visit the Advantech web site at www.advantech.com where you can find the lat- est information about the product. Contact your distributor, sales representative, or Advantech's cus- tomer service center for technical support if you need additional assistance. -
Page 5: Safety Instructions
The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. - Page 6 PPC-L157T User Manual...
-
Page 7: Table Of Contents
System Setup ........7 A Quick Tour of the Panel PC ..............8 Figure 2.1 Front view of PPC-L157T panel PC ......8 Figure 2.2 Rear view of Panel PC ..........9 Figure 2.3 Side view of the panel PC ........10 Figure 2.4 Bottom view of the panel PC ........ - Page 8 PCI Express Bus connector (CN16) ............31 Table A.9: PCIExpress pin assignments ........31 A.10 How to setup Teaming function on PPC-L128T/L157T ......32 A.10.1 Team together ................32 A.10.2 Dismiss! ..................37 A.10.3 TESTING ..................39 PPC-L157T User Manual viii...
-
Page 9: Chapter 1 General Information
Chapter General Information This chapter gives background information on the PPC-L157T panel PC. Sections include: Introduction General Specifications LCD Specifications Dimensions... -
Page 10: Introduction
IDE connector (for CF card), One SATA connector for HDD and one for ODD,and an PCI/PCIe expansion socket, the PPC-L157T is as compact and user friendly as a multifunction computer. In addition, its “fit anywhere” design makes it very flexible and able to be used in many different kinds of installations. -
Page 11: Vga/Lcd Interface
Teaming Function: Support Teaming Function(refer to A.10) 1.2.6 Touchscreen (Optional) Type Analog Resistive Resolution Continuous Light Transmission Controller USB interface Power Consumption <5 V @ 60 mA Software Driver Supports Windows 2000/XP Durability 35 million (touches in a lifetime) PPC-L157T User Manual... -
Page 12: Optional Modules
The color LCD display installed in the panel PC is high-quality and reli- able. However, it may contain a few defective pixels which do not always illuminate. With current technology, it is impossible to completely eliminate defective pixels. Advantech is actively working to improve this technology. PPC-L157T User Manual... -
Page 13: Dimensions
Dimensions Figure 1.1 Dimensions of PPC-L157T PPC-L157T User Manual... - Page 14 PPC-L157T User Manual...
-
Page 15: Chapter 2 System Setup
Chapter System Setup This chapter details system setup on the PPC-L157T panel PC. Sections include: A Quick Tour of the Panel PC Installation procedures Running the BIOS Setup Pro- gram Installing System Software Installing the Drivers... -
Page 16: A Quick Tour Of The Panel Pc
When you place the panel PC upright on the desktop, its front panel appears as shown in Figure 2.1. Figure 2.1 Front view of PPC-L157T panel PC PPC-L157T User Manual... -
Page 17: Figure 2.2 Rear View Of Panel Pc
Figure 2.2 Rear view of Panel PC Main power switch DC inlet USB2.0 x 3 Line-in Jach Ethernet Jack Line-out Jack USB2.0 Mic-in Jack PS2 mouse and keyboard Ethernet Jack PCI/PCIe expansion slot cover VGA port GPIO port Serial ports PPC-L157T User Manual... -
Page 18: Figure 2.3 Side View Of The Panel Pc
CompactFlash cover Wall mount hole Speaker Battery door Wall mount hole Figure 2.3 Side view of the panel PC Battery Figure 2.4 Bottom view of the panel PC PPC-L157T User Manual... -
Page 19: Installation Procedures
When you look at the rear side of the panel PC, you will see the power switch as shown in Figure 2.2. Power cord AC/DC Power adapter DC inlet Figure 2.5 Connect the power cord to the DC inlet PPC-L157T User Manual... -
Page 20: Running The Bios Setup Program
You can use the Ethernet port to download software to the HDD. 2.4.2 Method 2: Use the COM You can use Lap Link 6 or similar transmission software. Connect another PC to the PPC-L157T with an appropriate cable and transmit the software to the PPC-L157T. PPC-L157T User Manual... -
Page 21: Method 3: Use A Dvd-Rw
Note! The drivers and utilities used for the PPC-L157T panel PCs are subject to change without notice. If in doubt, check Advantech's website or con- tact our application engineers for the latest informa- tion regarding driv- ers and utilities. - Page 22 PPC-L157T User Manual...
-
Page 23: Chapter 3 Hardware Installation And Upgrading
Chapter Hardware Installation and Upgrading This chapter details installing the PPC- L157T panel PC hardware. Sections include: Overview of Hardware Installa- tion and Upgrading Installing the 2.5" Hard Disk Drive (HDD) Installing the battery pack... -
Page 24: Introduction
The HDD cable (SATA 7P+1*5P-2.5/SATA(15+7)P) is next to the metal brace. Connect the HDD cable to the PC board (CN5&CN6). Plug the other end of the cable into the SATA hard drive. Put the metal rear cover on and tighten the screws. PPC-L157T User Manual... -
Page 25: Figure 3.1 Installing Primary 2.5" Hdd
Pull up the battery door cover on the right bottom of PPC-L157T. Put the battery pack in, and then connect the battery cable to battery connector in the PPC-L157T. Make sure the red wire corresponds to Pin 1 on the connec- tor. -
Page 26: Figure 3.2 Installing The Battery Pack
Figure 3.2 Installing the battery pack PPC-L157T User Manual... -
Page 27: Chapter 4 Jumper Settings And Connectors
Chapter Jumper Settings and Connectors This chapter tells how to set up the panel PC hardware, including instructions on setting jumpers and connecting peripherals, switches and indicators. Be sure to read all the safety precautions before you begin the installation procedures. -
Page 28: Jumpers And Connectors
A pair of needle-nose pliers may be helpful when working with jumpers. If you have any doubts about the best hardware configuration for your application, contact your local distributor or sales representative before you make any changes. PPC-L157T User Manual... -
Page 29: Table 4.1: Jumpers And Connector Functions
4.1.2 Jumpers and connectors The motherboard of the PPC-L157T has a number of jumpers and connectors that allow you to configure your system to suit your applications. The table below lists the function of each of the board’s jumpers. Table 4.1: Jumpers and Connector functions... -
Page 30: Locating Jumpers And Connectors
4.1.3 Locating jumpers and connectors Figure 4.1 Jumpers and Connectors on the PPC-L157T motherboard CMOS Clear for External RTC (CN13(2-3)) Warning! To avoid damaging the computer, always turn off the power supply before setting "Clear CMOS". Set the jumper back to "Normal operation"... -
Page 31: Com1/Com2/Com3 Pin 9 Output Setting (Cn20&Cn21)
LCD panel power setting The panel PC's AGP SVGA interface supports 12V LCD displays. The LCD cable already has a built-in default setting. You do not need to adjust any jumper or switch to select the panel power. PPC-L157T User Manual... - Page 32 PPC-L157T User Manual...
-
Page 33: Appendix A I/O Pin Assignments
Appendix I/O Pin Assignments... -
Page 34: Keyboard And Ps/2 Mouse Connector (Cn27)
+5 V KB_CLK MS-CLK USB port (CN19) Table A.2: USB port (CN19) Signal +V5_USB DATA- DATA+ +V5_USB DATA- DATA+ COM1 RS-232 serial port (CN37) Table A.3: COM1 RS-232 serial port (CN37) Signal Signal DCD# DTR# DSR# RTS# CTS# PPC-L157T User Manual... -
Page 35: Com2 (Cn28)
COM2 (CN28) Table A.4: COM2 (CN28) Signal RS-232 RS-422 RS-485 DATA- DATA+ COM3 RS-232 serial port (CN38) Table A.5: COM3 RS-232 serial port (CN38) Signal Signal DCD# DTR# DSR# RTS# CTS# PPC-L157T User Manual... -
Page 36: Gpio Port (Cn29)
GPIO port (CN29) Table A.6: GPIO port (CN29) GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 VGA Connector (CN39) Table A.7: VGA connector (CN39) Signal GREEN BLUE SPDAT HSYNC VSYNC SPCLK PPC-L157T User Manual... -
Page 37: Pci Bus Connector (Cn18)
PCI Bus connector (CN18) Figure A.1 PCI connector PPC-L157T User Manual... -
Page 38: Table A.8: Pci Pin Assignments
Table A.8: PCI pin assignments Signal Signal IOCHK IRQ9 -5 V DRQ2 -12 V +12 V IORDY SA19 SA18 SA17 SA16 DACK3 SA15 DRQ3 SA14 DACk1 SA13 DRQ1 SA12 RFSH SA11 SCLk SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACk2 PPC-L157T User Manual... -
Page 39: Pci Express Bus Connector (Cn16)
PCI Express Bus connector (CN16) Table A.9: PCIExpress pin assignments Signal Signal +V12 +V12 +V12 +V12 +V12 SMB_CLK SMB_DATA +V3.3 +V3.3 +V3.3 +V3.3SB PLTRST# PCIe_WAKE# CLK_PCIe+ CLK_PCIe- PCIe_TX+ PCIe_TX- PCIe_RX+ PCIe_RX- PRSNT# PPC-L157T User Manual... -
Page 40: How To Setup Teaming Function On Ppc-L128T/L157T
A.10 How to setup Teaming function on PPC-L128T/ L157T A.10.1Team together Step 1. PPC-L128/L157 supports dual LAN function with each 1Gbps speed. PPC-L157T User Manual... - Page 41 Step 2. First, choose 1 LAN and open the properties panel. Then click on the Config- ure button. Step 3. Turn to Team page. Here you can create a new team or add to team. Click Create New Team. PPC-L157T User Manual...
- Page 42 Step 4. Name your team, and select the mode “Basic”. Step 5. Continue anyway. Step 6. The team has been created. PPC-L157T User Manual...
- Page 43 Step 7. Open the properties of another LAN, click “Add to Team” button. PPC-L157T User Manual...
- Page 44 Step 8. Choose the team this LAN should join in. Step 9. Now two LAN become one team with 2Gbps. PPC-L157T User Manual...
-
Page 45: A.10.2Dismiss
A.10.2Dismiss! Step 1. Open the configure page of teaming LAN. Two team members will show inside. PPC-L157T User Manual... - Page 46 Step 2. Choose the team member you want to kick out. Then click Remove Adapter button. Step 3. If you want to dismiss whole team. Click the Remove Team button and the team will be not available anymore. PPC-L157T User Manual...
-
Page 47: A.10.3Testing
A.10.3TESTING Step 1. Copy a big file to your disk through teaming LAN. Step 2. Unplug one cable. And the transmission of file still alive. Teaming function works!! PPC-L157T User Manual... - Page 48 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2011...
