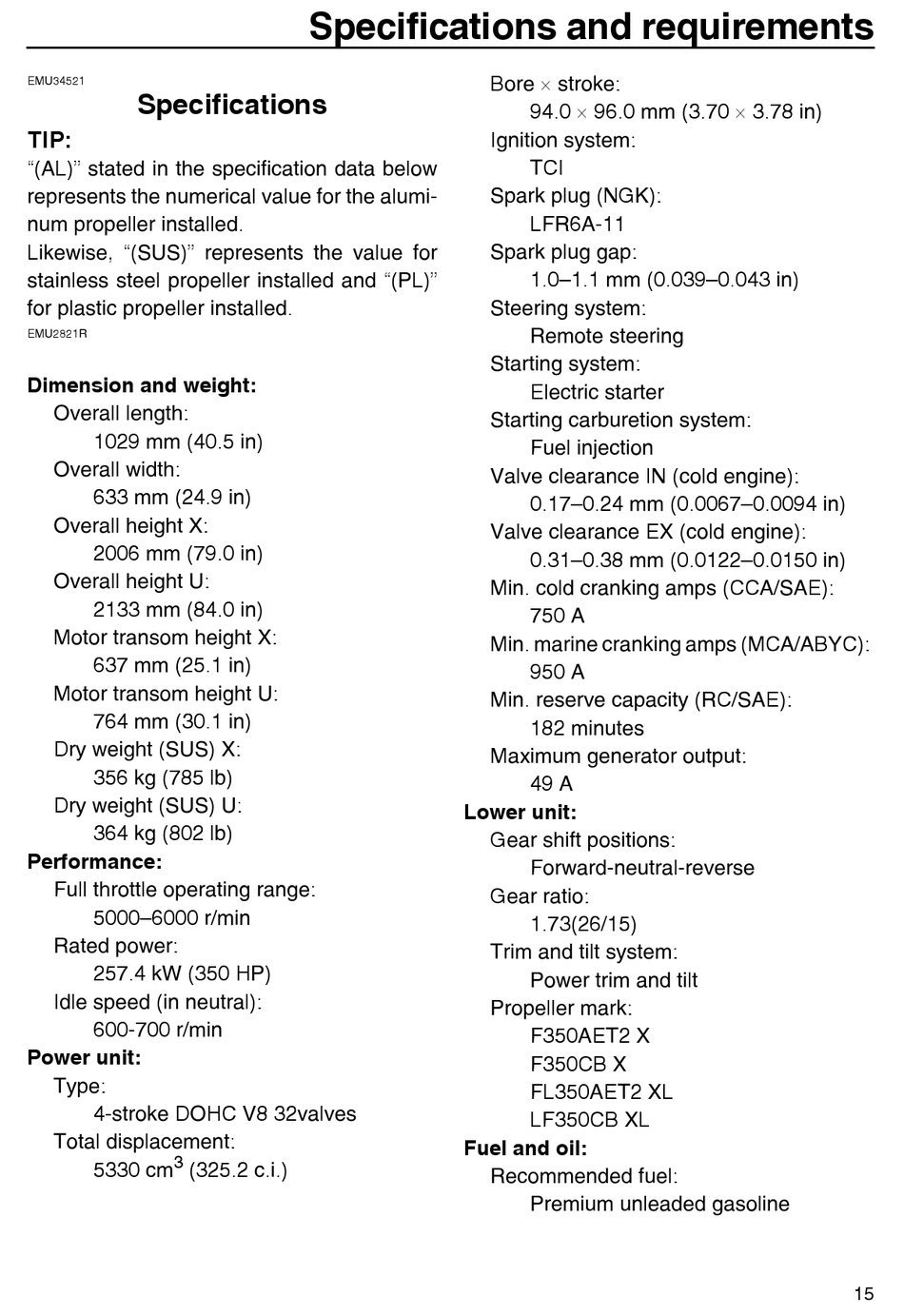

Specifications And Requirements; Specifications - Yamaha F350 Owner's Manual

EMU34521

Specifications

TIP:
"(AL)" stated in the specification data below
represents the numerical value for the alumi-
num propeller installed.
Likewise, "(SUS)" represents the value for
stainless steel propeller installed and "(PL)"
for plastic propeller installed.
EMU2821R
Dimension and weight:
Overall length:
1029 mm (40.5 in)
Overall width:
633 mm (24.9 in)
Overall height X:
2006 mm (79.0 in)
Overall height U:
2133 mm (84.0 in)
Motor transom height X:
637 mm (25.1 in)
Motor transom height U:
764 mm (30.1 in)
Dry weight (SUS) X:
356 kg (785 lb)
Dry weight (SUS) U:
364 kg (802 lb)
Performance:
Full throttle operating range:
5000–6000 r/min
Rated power:
257.4 kW (350 HP)
Idle speed (in neutral):
600-700 r/min
Power unit:
Type:
4-stroke DOHC V8 32valves
Total displacement:
3
5330 cm (325.2 c.i.)

Specifications and requirements

Lower unit:
Fuel and oil:
Bore  stroke:
94.0  96.0 mm (3.70  3.78 in)
Ignition system:
TCI
Spark plug (NGK):
LFR6A-11
Spark plug gap:
1.0–1.1 mm (0.039–0.043 in)
Steering system:
Remote steering
Starting system:
Electric starter
Starting carburetion system:
Fuel injection
Valve clearance IN (cold engine):
0.17–0.24 mm (0.0067–0.0094 in)
Valve clearance EX (cold engine):
0.31–0.38 mm (0.0122–0.0150 in)
Min. cold cranking amps (CCA/SAE):
750 A
Min. marine cranking amps (MCA/ABYC):
950 A
Min. reserve capacity (RC/SAE):
182 minutes
Maximum generator output:
49 A
Gear shift positions:
Forward-neutral-reverse
Gear ratio:
1.73(26/15)
Trim and tilt system:
Power trim and tilt
Propeller mark:
F350AET2 X
F350CB X
FL350AET2 XL
LF350CB XL
Recommended fuel:
Premium unleaded gasoline
15
