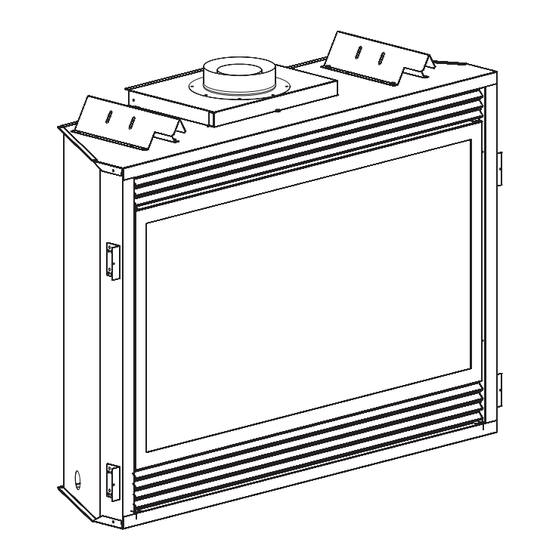

Direct Vent Zero Clearance Gas
Fireplace Heater
WARNING
Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
WARNING: If the information in these instructions
are not followed exactly, a fire or explosion may
result causing property damage, personal injury or
loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
INSTALLATION INSTRUCTIONS
GAS-FIRED
HOT GLASS
WILL
CAUSE BURNS.
DO NOT TOUCH
GLASS
UNTIL COOLED.
NEVER
ALLOW CHILDREN
TO TOUCH GLASS.
AND
OWNER'S MANUAL
LUXURY DIRECT VENT
GAS FIREPLACE HEATER
MODEL SERIES
MILLIVOLT STANDING PILOT
DVX36FP32CL(N,P)-2
DVX36FP33CL(N,P)-2
DVX36FP31L(N,P)-1
DVX42FP32CL(N,P)-2
DVX42FP33CL(N,P)-2
DVX42FP31L(N,P)-1
DIRECT IGNITION
DVX36FP53CLN-1
DVX42FP53CLN-1
INTERMITTENT PILOT
DVX36FP73CL(N,P)-2
DVX36FP71L(N,P)-1
DVX42FP73CL(N,P)-2
DVX42FP71L(N,P)-1
REMOTE RF MODELS
DVX36FP93CL(N,P)-3
DVX36FP91(N,P)-1
DVX42FP93CL(N,P)-3
DVX42FP91(N,P)-3
UL FILE NO. MH30033
WARNING: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by state or local
codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
kit is used.
DVX36FP51LN-1
DVX42FP51LN-1
Page 1
