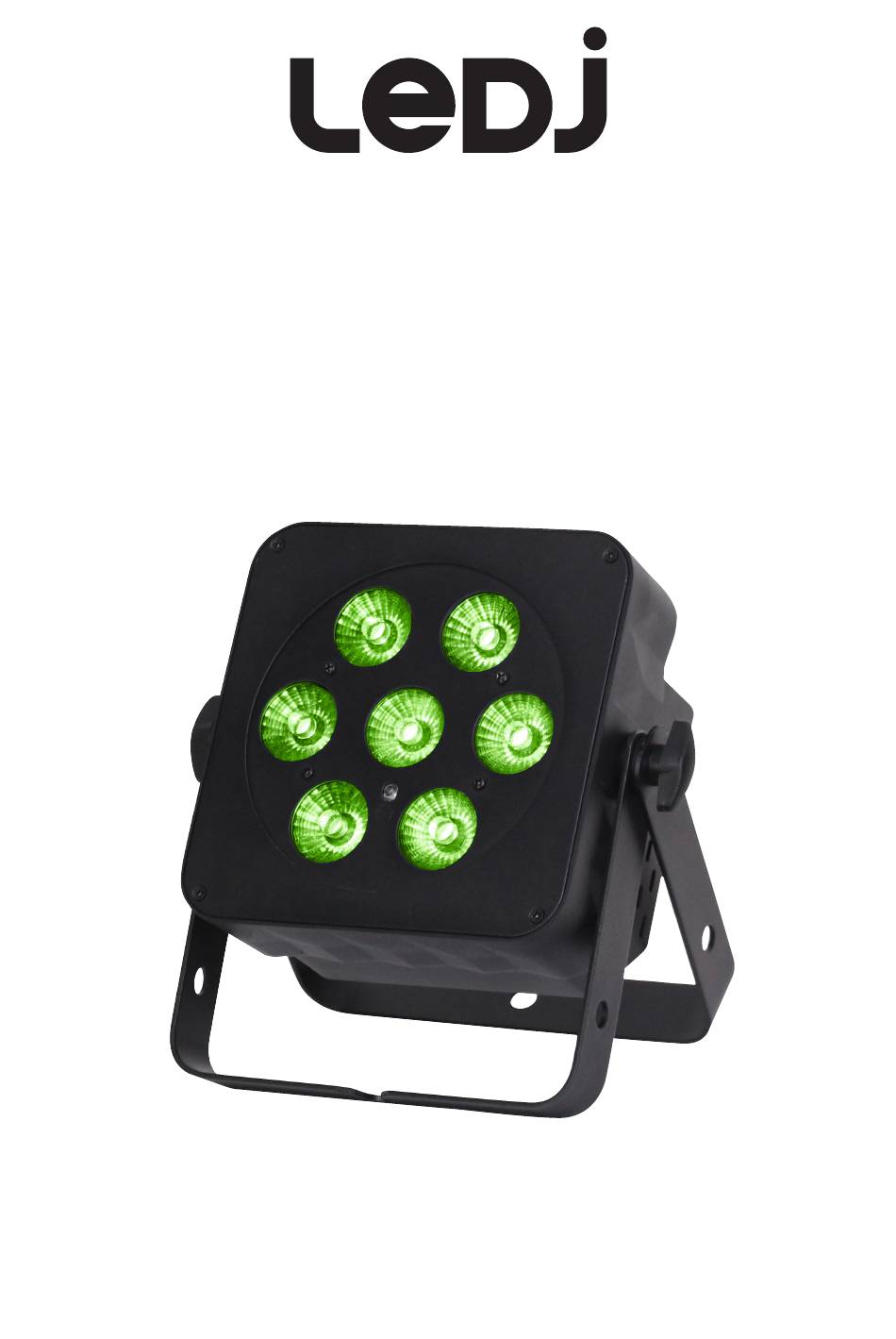

- Page 1 Slimline 7Q5 RGBL User Manual Order code: LEDJ560...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. • Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Slimline 7Q5 RGBL User Manual... - Page 3 5620 1405 7620 1905 Specifications Slimline 7Q5 RGBL 1296 51.8 9792 2448 1088 Power consumption Power supply 100~240V, 50/60Hz Fuse T1A 250V 25° Dimensions 220 x 212 x 105mm Weight 2.6kg Order code LEDJ560 www.prolight.co.uk Slimline 7Q5 RGBL User Manual...
-
Page 4: Technical Specifications
Technical specifications 212mm 161mm 55mm 95mm 105mm www.prolight.co.uk Slimline 7Q5 RGBL User Manual... - Page 5 In the box: 1 x fixture, 02 - Adjustment knobs 05 - 5-Pin DMX output 08 - PowerTwist TR1 input & 1 x power cable 03 - LED display 06 - 5-Pin DMX input 09 - Earth point www.prolight.co.uk Slimline 7Q5 RGBL User Manual...
-
Page 6: Installation
The installation should be checked annually by a qualified person. The LEDJ Slimline 7Q5 RGBL can be operated in a number of mounting positions as shown in the dia- gram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface. - Page 7 1. Fasten the clamp to the bracket on the top of the fixture. 2. Mount the fixture onto your truss system via the clamps and tighten to ensure it is secure. 3. Pull the safety cable through the bracket and around the truss. www.prolight.co.uk Slimline 7Q5 RGBL User Manual...
-
Page 8: Dmx Settings
P r 0 0 S P - 0 F - - 0 Built-in programs P r 2 0 S P - 9 F - - 9 C O 0 0 Colour temperature presets C 0 0 6 www.prolight.co.uk Slimline 7Q5 RGBL User Manual... - Page 9 Lilac 056-060 Lavendar 061-065 Yellow 066-070 Pink 071-075 Light Blue 076-080 White 081-150 Colour Change (fast-slow) 151-255 Colour Fade (fast-slow) 000-190 Master dimmer (0-100%) 191-200 Sound mode 201-247 Strobe (slow-fast) 248-255 Master dimmer (100%) www.prolight.co.uk Slimline 7Q5 RGBL User Manual...
- Page 10 LED display. To adjust the sensitivity of the sound mode, SU00 press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between (low) to SU99 (high). Press the “ENTER” button to confirm the setting. www.prolight.co.uk Slimline 7Q5 RGBL User Manual...
- Page 11 LED display. Now use the “UP” and “DOWN” C000 C006 buttons to choose between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Slimline 7Q5 RGBL User Manual...
-
Page 12: Important Notes
• If you do not press the “DMX MODE” button after you have changed the DMX address when you power down the fixture it will lose the address you have set www.prolight.co.uk Slimline 7Q5 RGBL User Manual... -
Page 13: Dmx Setup
Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Slimline 7Q5 RGBL User Manual... -
Page 14: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Slimline 7Q5 RGBL User Manual... - Page 15 Please note: Caution should be used when power linking other fixtures to the Slimline 7Q5 RGBL as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.
-
Page 16: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Slimline 7Q5 RGBL User Manual...
