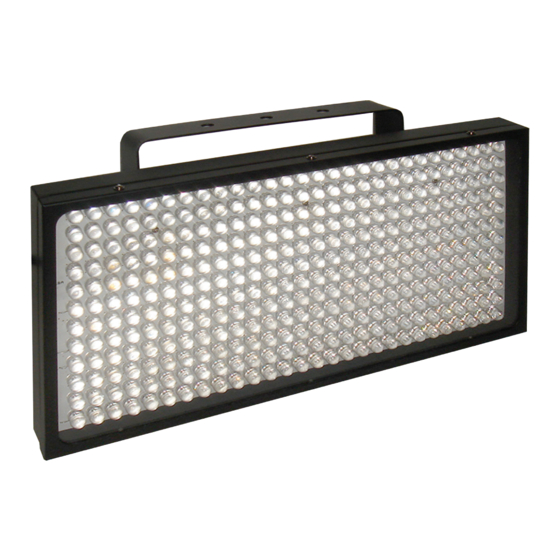

Ledj STRATOS SPOT User Manual

Ledj STRATOS SPOT User Manual

Advertisement

Quick Links

www.prolight.co.uk
STRATOS
(order code: LEDJ63)
(order code: LEDJ64)

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STRATOS SPOT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ledj STRATOS SPOT

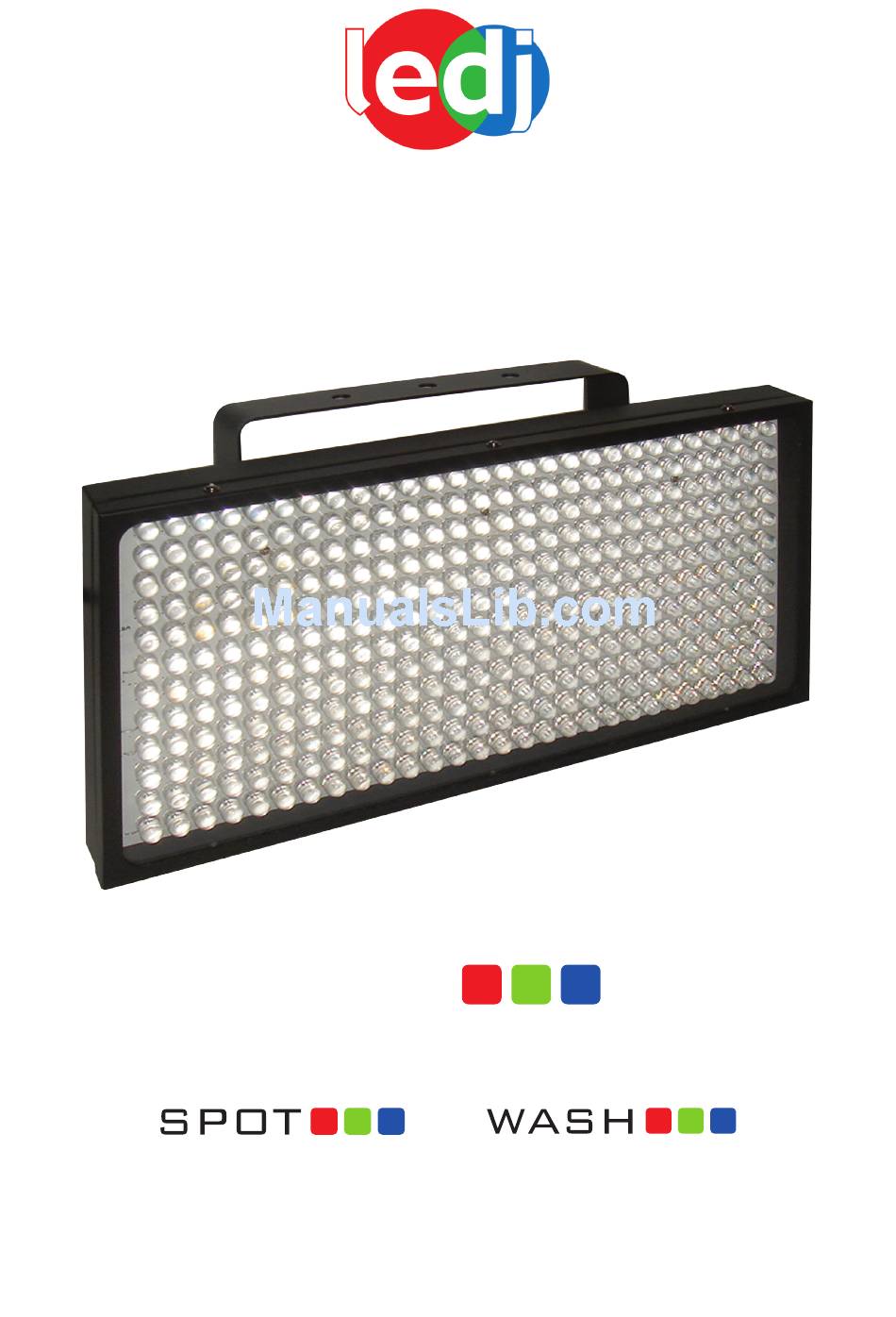

  • Page 1: User Manual

    www.prolight.co.uk STRATOS (order code: LEDJ63) (order code: LEDJ64) USER MANUAL...
  • Page 2 STRATOS SPOT & WASH SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
  • Page 3 STRATOS SPOT & WASH SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
  • Page 4: Operating Instructions

    STRATOS SPOT & WASH FEATURES Features • DMX channels: 3 or 6 selectable • 336 x 10mm LEDs: - Red (108), Green (108), and Blue (120) • Sound active, auto, master/slave and DMX modes • 0-100% dimming and variable strobe (via DMX) •...
  • Page 5 STRATOS SPOT & WASH PROGRAMMES Programme Selection: Static Colour Mode: Press the mode button and use the up and down buttons to select one of the 7 desired colours. 1, Red 2, Green 3, Blue 4, Yellow 5, Cyan 6, Purple 7 White Colour Changing Mode Press the mode button to select the Colour Change programme.
  • Page 6 CONTROL OPTIONS DMX Control Mode: The Stratos Spot/Wash has two DMX modes to choose from, 3 channel or 6 Channel. To access the 3 Channel mode, press the mode button to show a red dot illuminated under the first digit of the DMX address.
  • Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Stratos Spot/Wash can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
  • Page 8 STRATOS SPOT & WASH DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
