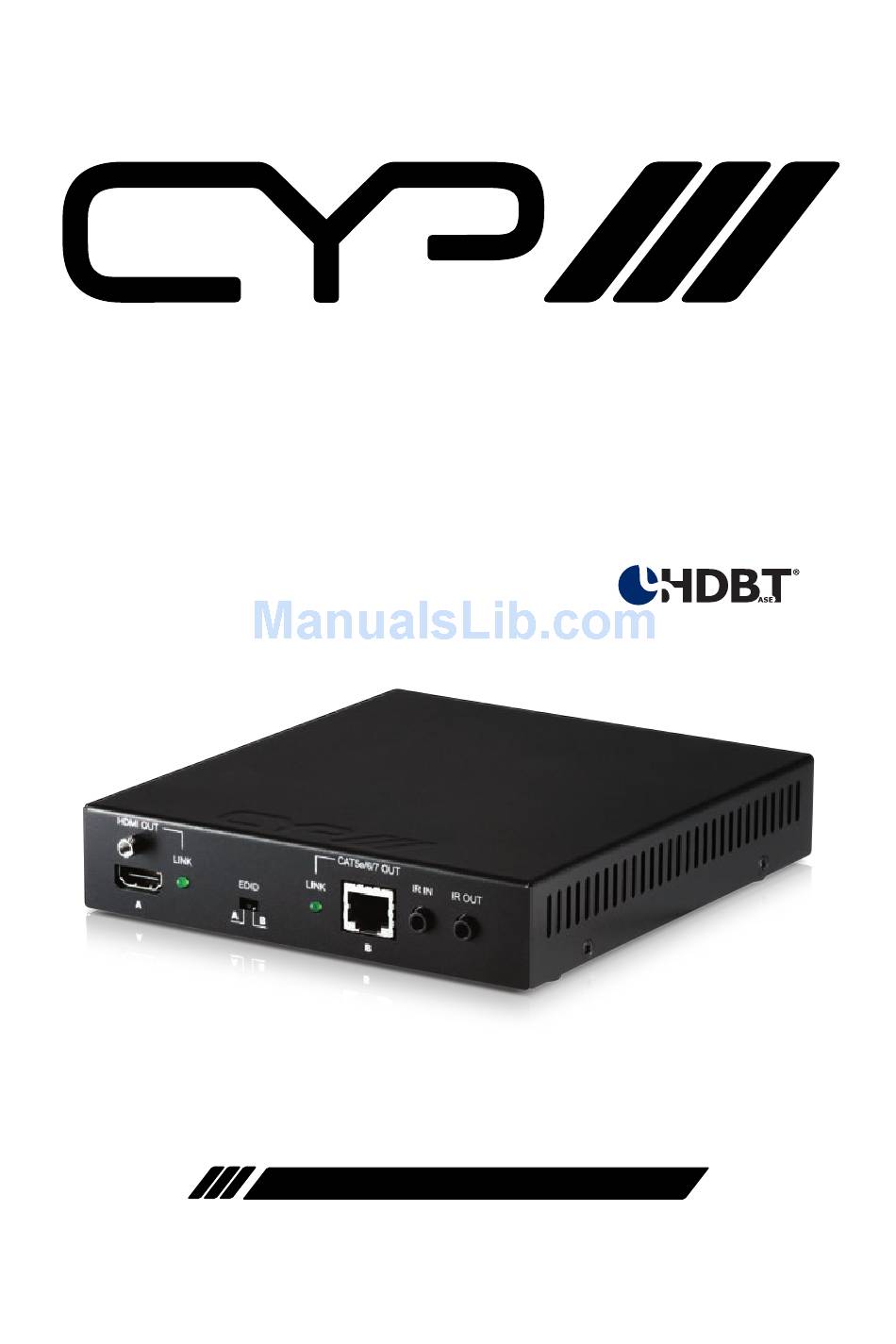

- Page 1 PU-HBTPL-ZE HDBaseT™ Lite Zone extender 1 x HDMI / 1 x HDBaseT out OPERATION MANUAL...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignment....5 7. -
Page 4: Introduction
1. INTRODUCTION The PU-HBTPL-ZE HDBaseT Lite Zone extender is designed to allow AV integrators to easily create additional zones for any HDBaseT distribution system whilst enabling the HDBaseT pass-through signal to be extended further over CAT5e/6/7 (up to 60m). This device... -
Page 5: Features
5. FEATURES • Supports uncompressed video/audio up to 10.2Gbps • Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings •... -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT5e/6/7 IN LINK POWER SERVICE DC 24V SERVICE: This slot is reserved for fi rmware update only. CAT5e/6/7 IN & LINK LED: Connect from HDMI over CAT5e/6/7 Transmitter device along with source device for input signal distribution up to 60m. -
Page 7: Rear Panel

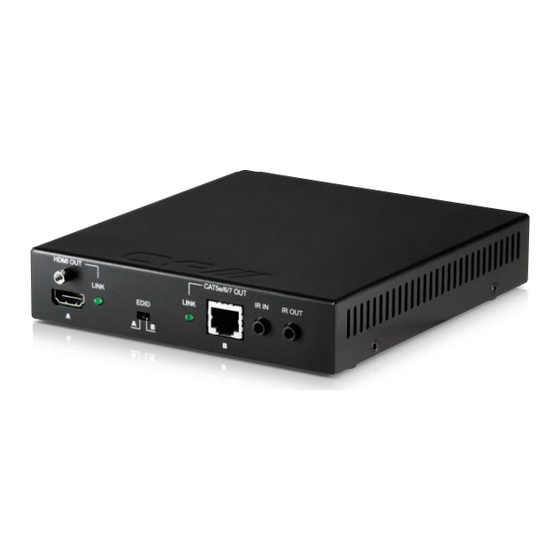

6.2 Rear Panel HDMI OUT CAT5e/6/7 OUT IR IN IR OUT LINK LINK EDID HDMI OUT & LINK LED: Connect to HDMI display for instant image display or cascade with another family type Transmitter. The LINK LED will illuminate once and active display signal is detected. This device obtain the last memory function therefore, the device will use the last output port's EDID when The output port is not connected to a display after power cycling. -
Page 8: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Grounding... -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player 1.5m HDMI RS-232 Adaptor 60° IR Blaster 60° IR2 Extender IR Extender HDMI In RS232 In IR1 Blaster RS-232 Router with Equipped CAT5e/6/7 Internet PC or Cable Connection Notebook 3D TV/Display CAT5e/6/7 IN Smartphone LINK POWER... -
Page 10: Specifi Cations
8. SPECIFICATIONS Video Bandwidth 340Mbps/10.2Gbps Input ports 1 x CAT5e/6/7, 1 x IR IN, 1 x USB (Service only) Output ports 1 x HDMI, 1 x CAT5e/6/7 1 x IR OUT, Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/ 4096x2160@24Hz/4K2K@60Hz YUV_420) HDMI Input & Output Up to 10m@8 or12-bit 1080p Cable Distance CAT5e/6/7 Output... -
Page 11: Cat5E/6/7 Cable Specifi Cation
8.1 CAT5e/6/7 Cable Specifi cation Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 (HD Video) bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
