Metra Electronics 95-7339S Installation Instructions Manual

Car radio kit

INSTALLATION INSTRUCTIONS FOR PART 95-7339

Hyundai Genesis Coupe 2.0 2010-up

KIT FEATURES

• DDIN head unit provision

• ISO stacked head unit provision

• Painted to match factory finish

95-7339B=Black 95-7339S=Silver

KIT COMPONENTS

• A) Trim Panel • B) Double DIN brackets • C) (6) PC-7503 Panel Clips

WIRING & ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness: • 70-7303 2009-Up Kia/Hyundai Harness

Antenna Adapter: • 40-KI11 2007-Up Kia Antenna Adapter

Panel Removal Tool • Phillips Screwdriver • Small Flat Blade Screwdriver • Socket Wrench

APPLICATIONS

(For models equipped with manual climate control)

95-7339B

95-7339S

TOOLS REQUIRED

METRA. THE WORLD'S BEST KITS.™

1-800-221-0932

metraonline.com

Table of Contents

Need help?

Do you have a question about the 95-7339S and is the answer not in the manual?

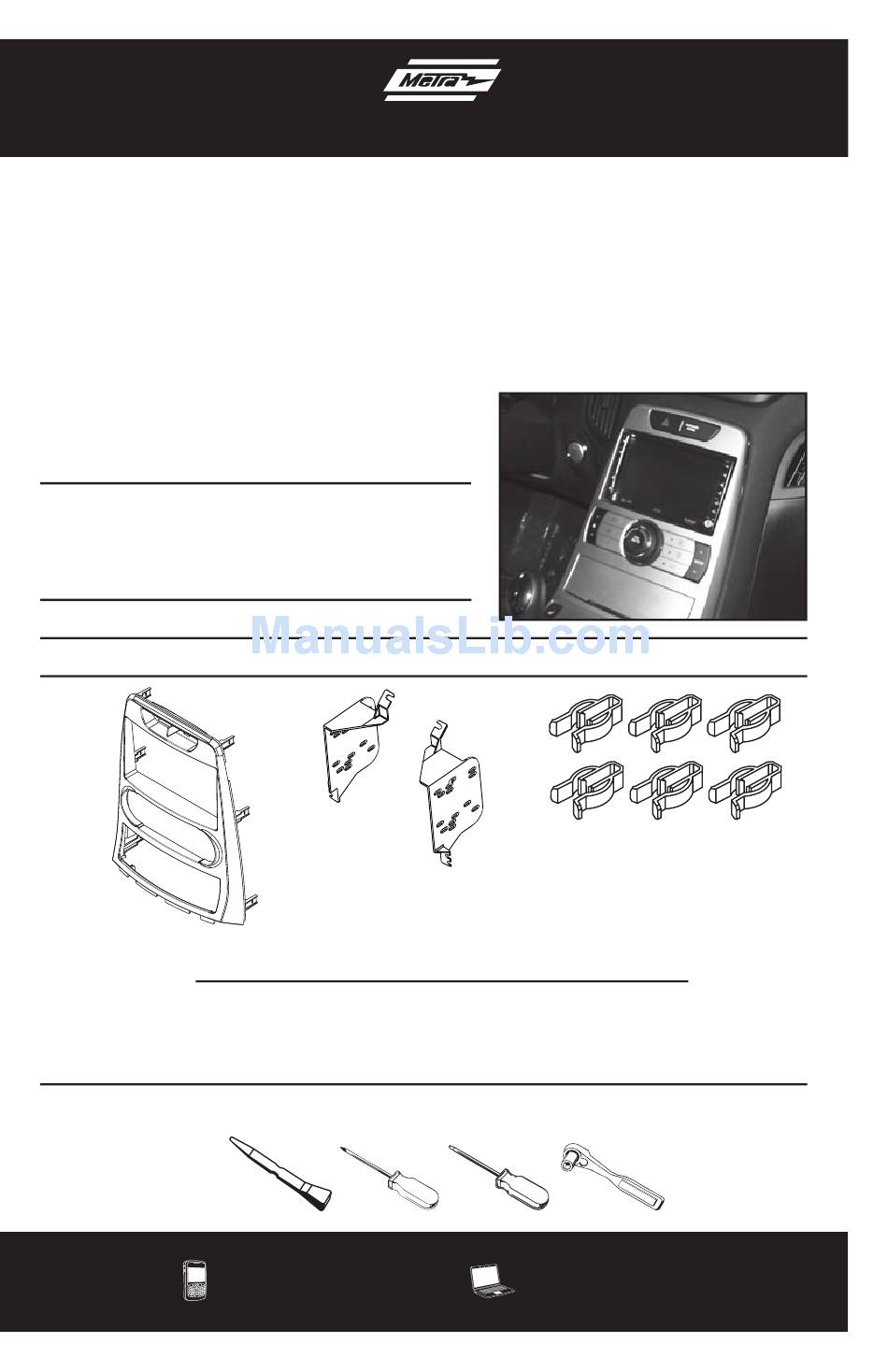

Page 1 Wiring Harness: • 70-7303 2009-Up Kia/Hyundai Harness Antenna Adapter: • 40-KI11 2007-Up Kia Antenna Adapter Panel Removal Tool • Phillips Screwdriver • Small Flat Blade Screwdriver • Socket Wrench METRA. THE WORLD’S BEST KITS.™ 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION APPLICATIONS 95-7339B 95-7339S TOOLS REQUIRED...
Page 2 Table of Contents Dash Disassembly – Hyundai Genesis Coupe 2.0 2010-up Kit Preparation – Hyundai Genesis Coupe 2.0 2010-up Kit Assembly – Double DIN/stacked ISO DIN head unit provision Caution Metra recommends disconnecting the negative battery terminal before beginning any installation.
Page 3 Dash Disassembly 1. Unclip and remove the shifter trim panel. (Figure A) 2. Unclip and remove the radio/climate control trim panel. (Figure B) 3. Unclip and remove the display trim panel above radio. (Figure C) 4. Remove (4) Phillips screws securing the radio.
Page 4 Kit Preparation 1. Attach the climate control to the 95-7339 trim plate using the factory hardware. (Figure A) 2. Attach the (6) panel clips to the 95-7339 trim plate. (Figure B) Continue to kit assembly 95-7339 (Figure A) (Figure B)
Page 5 Kit Assembly 95-7339 Double DIN/stacked ISO DIN head unit provision 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
