ver 1.2
Universal Wireless Communicator
Compatible with all PowerSeries keypads
Installation & Programming Guide
CL3050
WARNING: This manual contains information on limitations regarding product use
and function and information on the limitations as to liability of the manufacturer.
Read the entire manual carefully.
Advertisement
Table of Contents
Related Manuals for DSC Skyroute CL3050 ver 1.2
Summary of Contents for DSC Skyroute CL3050 ver 1.2

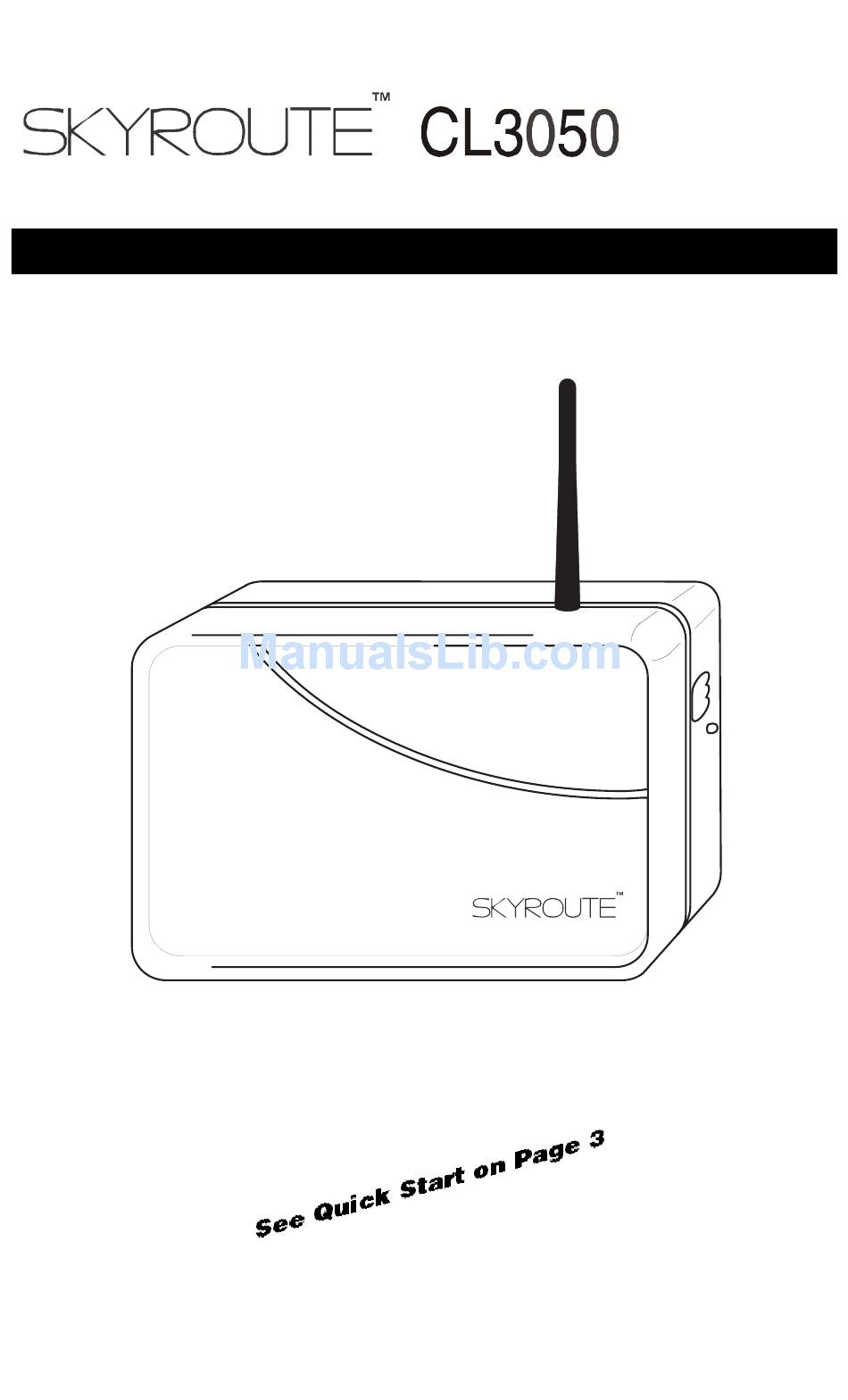

- Page 1 ver 1.2 Universal Wireless Communicator Compatible with all PowerSeries keypads Installation & Programming Guide CL3050 WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. Read the entire manual carefully.
- Page 2 For Your Records Location Test Time & Day Additional Notes CONNECT 24 Enrollment Information Note: Only authorized dealers can enroll a wireless system to Connect 24. Dealer application forms and additional information on the Connect 24 Voice Response Unit can be found at the Connect 24 web site. http://www.connect24.com/dealer.htm The information required for activation is listed below.
-
Page 3: Table Of Contents
Table of Contents Section 1: Introduction................1 1.1Specifications......................2 1.2Unpacking ......................2 Section 2: Quick Start................3 2.1Installation ......................3 2.2Testing ........................4 2.3Resetting to Factory Defaults .................. 4 Section 3: Controls & Indicators ............. 5 3.1LED Indicators......................5 3.2Enroll Button......................6 3.3Terminal Connections.................... - Page 4 NOTE:...
-
Page 5: Section 1: Introduction
Introduction Section 1: Introduction The Skyroute CL3050 is a standalone wireless communicator that sends alarm system infor- mation to Connect 24. Connect 24 then forwards this information to the central station. The Skyroute CL3050 has four modes of operation. It can operate in one of three opera- tional modes or;... -
Page 6: Specifications
Introduction 1.1 Specifications • Power Supply Ratings Voltage: 10.6-14 V or V Current: 500 mA (Max) Low DC Trouble: 8.8 V Low DC Restore: 9.0 V Low AC Trouble: 7.5 V Low AC Restore: 8.0 V • Current Drain Standby: 100 mA Receiving: 150 mA Transmitting: 850 mA (350 mA from external power supply) •... -
Page 7: Section 2: Quick Start
Skyroute CL3050 Universal Wireless Communicator Section 2: Quick Start 2.1 Installation Determine The Operating mode required The operating mode (modes 1, 2, or 3) will determine how the unit is to be wired up. Refer to section 6, Programming Descriptions, section [10] for available options and for programming defaults. -
Page 8: Testing
Quick Start Mount Unit • Remove the front cover if required • Disconnect flying leads from battery and power leads from the RED and BLK terminals (if connected). • Remove two screws securing battery clamp. Remove battery • Mount backplate of unit to wall or over electrical junction box using the four screws provided. -
Page 9: Section 3: Controls & Indicators
Skyroute CL3050 Universal Wireless Communicator Section 3: Controls and Indicators Figure 2 Antenna Mounting Holes Green LED Yellow LED Red LED Battery (6 VDC) Battery (6 V 1.3 Ah Enroll Button Wire Access Tamper Switch RED BLK YEL GRN COM PGM 3.1 LED Indicators (see figure 2) Yellow LED During normal operation, the yellow LED will indicate the system status with a... -
Page 10: Enroll Button
Controls and Indicators NOTE: Multiple trouble conditions are displayed (flashed) in sequence. Red LED The red LED will flash to provide event transmission status for the following events: 1 Flash Enroll button held down for 2 seconds 1 Flash Event transmitted to cellular network 2 Flashes Event acknowledged by Connect 24. -
Page 11: Section 4: Power Up Sequence
Section [13] on page 11. Relay NOTES: The PGM output can sink 50 mA (maximum). For UL Installations, use DSC RM-1 Relay Module. Section 4: Power up Sequence On first-time power up, the Skyroute CL3050 will generate a random test trans- mission time and random day of the week to send it. -
Page 12: Section 5: System Programming
System Programming Section 5: System Programming The Skyroute CL3050 is programmed using any PowerSeries keypad. Refer to Section 1.1 Specifications. NOTE: Power down the Skyroute CL3050 when connecting or removing other Keybus modules from the system. If the Skyroute CL3050 is connected to a con- trol panel (mode 1), the control panel must also be powered down. -
Page 13: Zone 3-8 Definitions
Skyroute CL3050 Universal Wireless Communicator Mode 3 [02] Zone 3 - 8 Definitions This allows programming of the six additional zone definitions when operating in mode 3 with a PC5108 zone expander. See section [01] for details Default - [01] zones 3 - 8 Modes 2 [03] Zone 1, 2 Loop Response This entry determines how quickly a zone will respond to changes in state. -
Page 14: Skyroute Cl3050 Configuration Options 1
In this mode, the YEL and GRN terminals Skyroute GRN COM PGM CL3050 will be used as zone inputs. These zones will support the DSC standard EOL configura- Input Voltage tion and loop response. Pro- 10.6-14 V or V gramming sections will allow the... -
Page 15: Skyroute Cl3050 Configuration Options 2
Default - Not Enrolled. Options 7, 8 - System Use All Modes CAUTION: Do NOT change these settings unless it is requested by DSC technical support personnel. Default - OFF. [12] Skyroute CL3050 Configuration Options 2 Option 1 - Swinger Shutdown Enabled/Disabled... -
Page 16: System Time
Programming Descriptions Control Panel Skyroute CL3050 Zx COM BLK YEL GRN COM PGM 5.6K NOTE: A relay may be required for proper operation in other configurations. See paragraph 3.3 Terminal Connections. Option 1 - Low battery All Modes If the battery voltage drops below 5.72V a trouble will be indicated until the battery voltage rises to 5.87V Default - ON... -
Page 17: System Day
Skyroute CL3050 Universal Wireless Communicator NOTE: If AC Power is detected, it will be used to provide the time base for the internal clock. If AC power is not detected the internal clock will automatically use the crystal time base. All Modes [16] System Day of the Week See section [15]. - Page 18 Programming Descriptions When the system sees an open circuit across any zone a zone tamper is gener- ated. DEOL resistors are required for zone tamper reporting. In Section [11], Option [2] must be set to OFF and Option [3] must be set to ON. In Section [13], Option [3] must be set to ON and the Skyroute CL3050 must be operating in mode 2 or 3.
-
Page 19: System Event Communication Options
Skyroute CL3050 Universal Wireless Communicator [21] System Event Communication Options NOTE: Section [20], Option [7] must be enabled for these events to be communi- cated. Option 1 - Input Supply Failure All Modes If AC power is absent or if DC power drops below 8.8V on the RED and BLK terminals, a trouble will be sent after the delay programmed in section [22] has expired. -
Page 20: Section 7: Programming Worksheets
Programming Worksheets Section 7: Programming Worksheets Zone Definitions (For Sections [01] -[02]) 00 Null Zone (Not Used) 05 Gas* 10 Low Temp* 06 High Temp* 11 Sprinkler* 01 Burglary 02 Fire 07 Medical* 12 Hold-up 03 Panic 08 Emergency 13 CL3050 Communications Zone 04 Technical 09 Water Level* (1 zone max.) - Page 21 Skyroute CL3050 Universal Wireless Communicator [12] Skyroute CL3050 Configuration Options 2 Default Opt Option On Option Off I___I Swinger Shutdown Swinger Shutdown Disabled Enabled I___I 2-8 For Future Use NOTE: Option must be disabled for UL Installations. [13] Skyroute CL3050 Trouble Mask Default Opt Option On Option Off...
- Page 22 Programming Worksheets [18] Test Transmission Day *Selected at random on power up Default Opt Option On Option Off I___I Sunday Disabled I___I Monday Disabled I___I Tuesday Disabled I___I Wednesday Disabled I___I Thursday Disabled I___I Friday Disabled I___I Saturday Disabled I___I For Future Use [20] Transmission Options Default Opt...
- Page 23 Programming Worksheets [24] Number of Attempts Default Range I___I___I 01-FF (Hex) [25] Response Wait Time Default Range I___I___I 01-FF (Hex seconds) For UL Installations program 5A.
-
Page 24: Glossary Of Terms
Glossary of Terms Glossary of Terms Cellemetry A network allowing short data packets to be sent on cellular control chan- nels. Connect 24 Connect 24 is the service provider that provides the Skyroute service to the security industry and links the Skyroute cellemetry communicator to the cen- tral station. -
Page 25: Appendix A: Reporting Codes
Skyroute CL3050 Universal Wireless Communicator Appendix A: Reporting Codes Events Reporting Codes Events Reporting Codes Contact Contact Zone Alarms Zone Restores Burglary Zone BAXX E130 Burglary Zone BHXX R130 Fire Zone FAXX E110 Fire Zone FHXX R110 Panic Zone PAXX E120 Panic Zone PHXX... - Page 26 Skyroute CL3050 Universal Wireless Communicator Event Reporting Code Event Reporting Code Contact Contact Zone Tamper Alarms Zone Tamper Restores Burglary Zone BTXX E380 Burglary Zone BJXX R380 Fire Zone FTXX E373 Fire Zone FJXX R373 Panic Zone PTXX E380 Panic Zone PJXX R380 Technical Zone...
-
Page 27: Limited Warranty
Limited Warranty DSC warrants that for a period of one year from the date of purchase, the product shall be free of defects in material and workmanship under normal use and that in fulfillment of any breach of such warranty, DSC shall, at its option, repair or replace the defective equipment upon return of the equipment to its repair depot. - Page 28 ©2003 Digital Security Controls Ltd. Toronto, Canada • www.dsc.com Tech Support: 1-800-387-3630 (Canada & US) or 905-760-3036 Printed in Canada 29034673 Rev 001 Direct all comments concerning this publication to pubs@dscltd.com...
