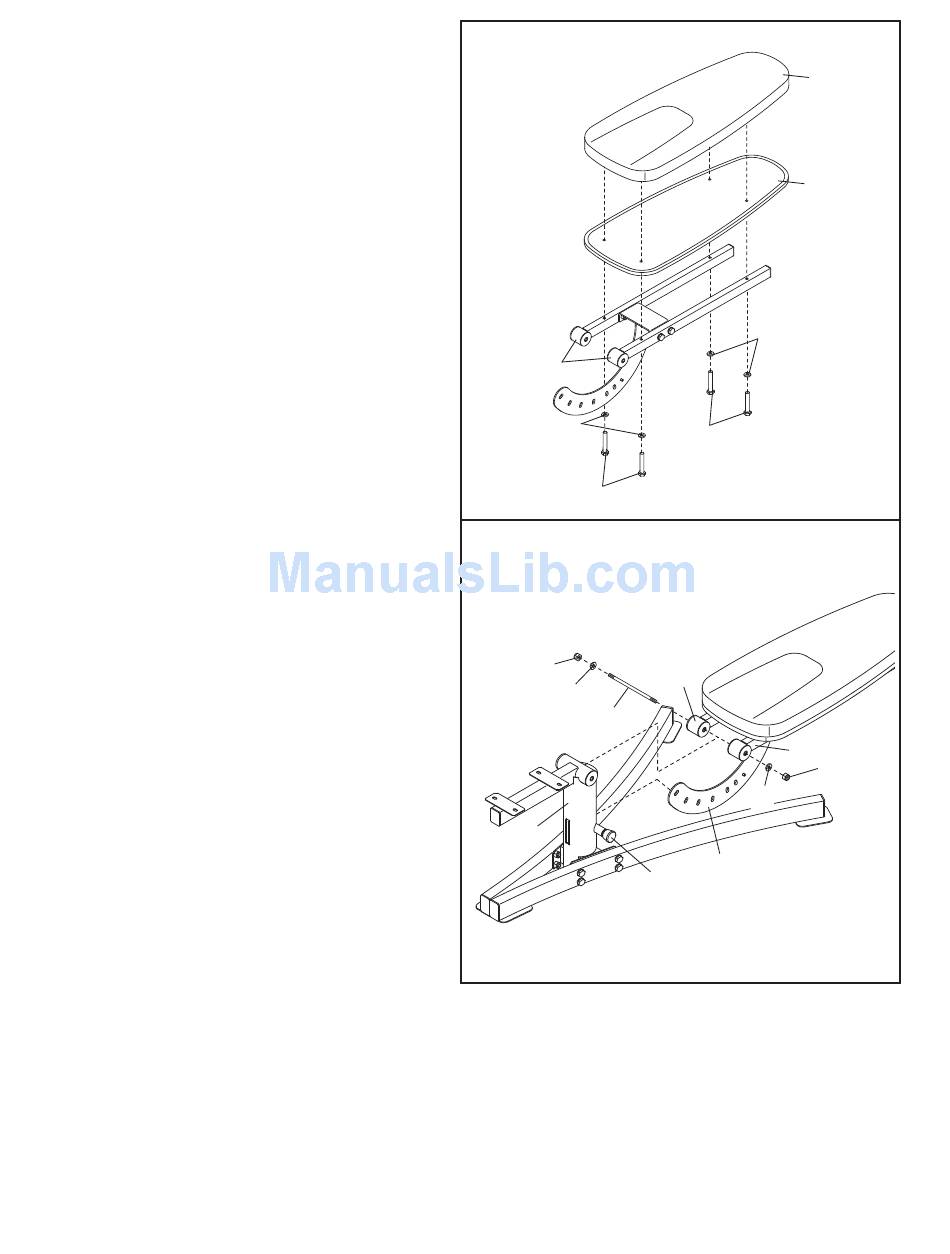

4. Attach the Backrest Plate (6) and the Backrest
(7) to the Backrest Frames (5) with four M6 x
60mm Screws (19) and four M6 Washers (23).
See step 3 and tighten the M10 Nylon
Locknuts (24).
5. Pull the Backrest Knob (15) out as far as it will
go. Insert the Backrest Bracket (4) into the
Seat Frame (3), and engage the Backrest
Knob in one of the holes in the Backrest
Bracket.
Apply a small amount of the included grease
to an M10 x 256mm Bolt (17). Attach the
Backrest Frames (5) to the Seat Frame (3)
with the Bolt, two M10 Washers (22), and two
M10 Nylon Locknuts (24). Do not overtighten
the Nylon Locknuts; the Backrest must
pivot freely.
