AdaptiveRate
MaxRate
MinRate
FixedRate
Terminal Type
Annex Type
3 . 2 L A N
3 . 2 L A N
Local Area Network (LAN) is a group of subnets regulated and ruled by router. The design of
network structure is related to what type of public IP addresses coming from your ISP.
3 . 2 . 1 B a s i c s
3 . 2 . 1 B a s i c s
The most generic function of Vigor router is NAT. It creates a private subnet of your own. As
mentioned previously, the router will talk to other public hosts on the Internet by using public
IP address and talking to local hosts by using its private IP address. What NAT does is to
translate the packets from public IP address to private IP address to forward the right packets
to the right host and vice versa. Besides, Vigor router has a built-in DHCP server that assigns

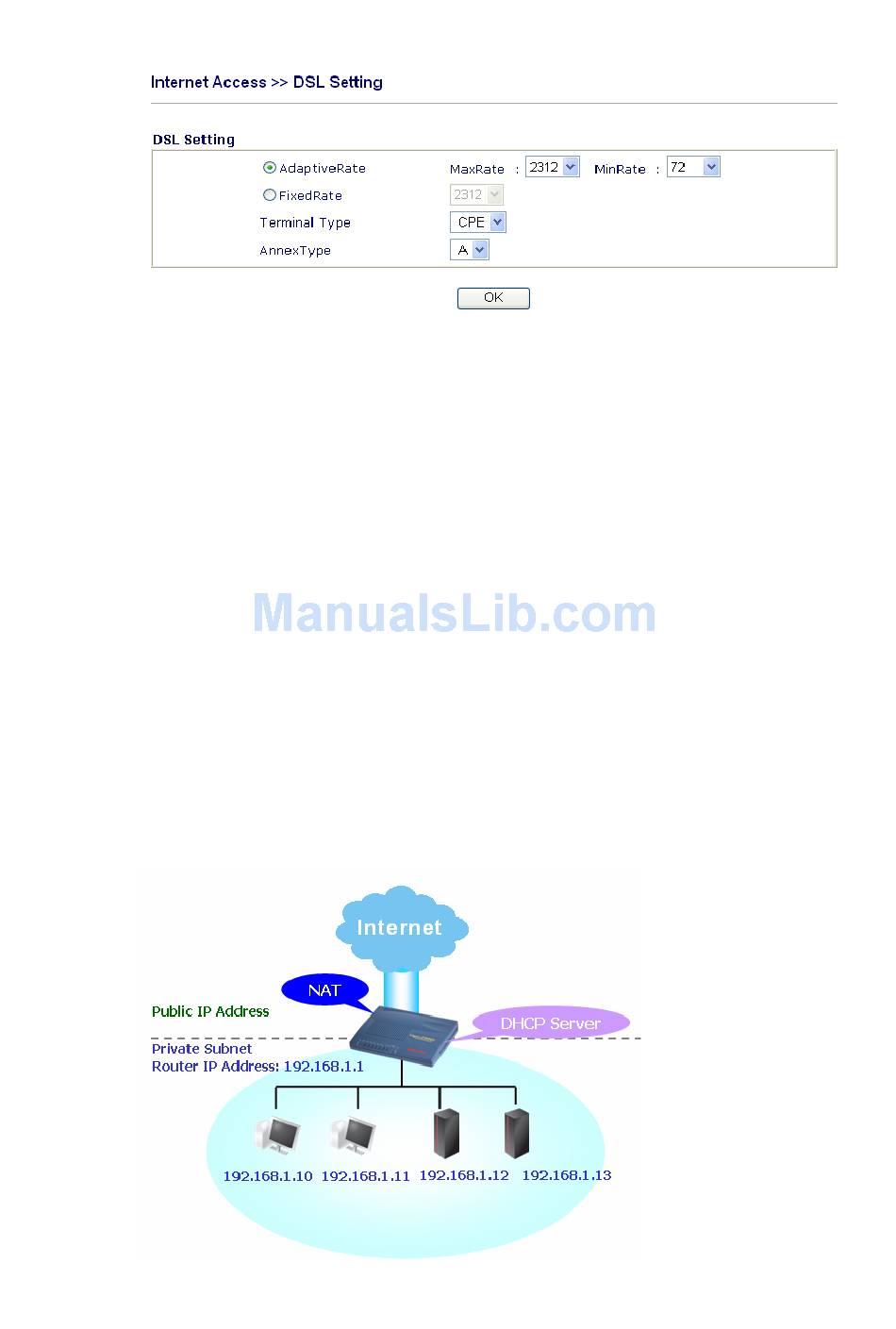

private IP address to each local host. See the following diagram for a briefly understanding.
22
Set the connection rate for the network.
Select the maximum rate for this setting. Use the drop down list to
select the one that suits your router. The default value is 2312.
Select the minimum rate for this setting. Use the drop down list to
select the one that suits your router. The default value is 72.
If you select this one, only the fixed value is useful.
Determine the role of this device as a CPE or CO.
Choose the correct annex type (A or B) for your router.
o f L A N
o f L A N
