Reserved Bandwidth Ratio It is reserved for the group index in the form of ratio of reserved
Setup
Enable UDP Bandwidth Control Check this and set the limited bandwidth ratio on the right
Limited_bandwidth Ratio
Basic button
Advanced button
Vigor3100 Series User's Guide
bandwidth to upstream speed and reserved bandwidth to
downstream speed.
There are two-level of settings:
Basic - setup Reserved Bandwidth Ratio according to the traffic
service type. We provide a list of common service types.
Advance - custom setting of Reserved Bandwidth Ratio based
on the source address, destination address, DiffServ CodePoint,
and service type.
field. This is a protection of TCP application traffic since UDP
application traffic such as streaming video will exhaust lots of
bandwidth.
The ratio typed here is reserved for limited bandwidth of UDP
application.

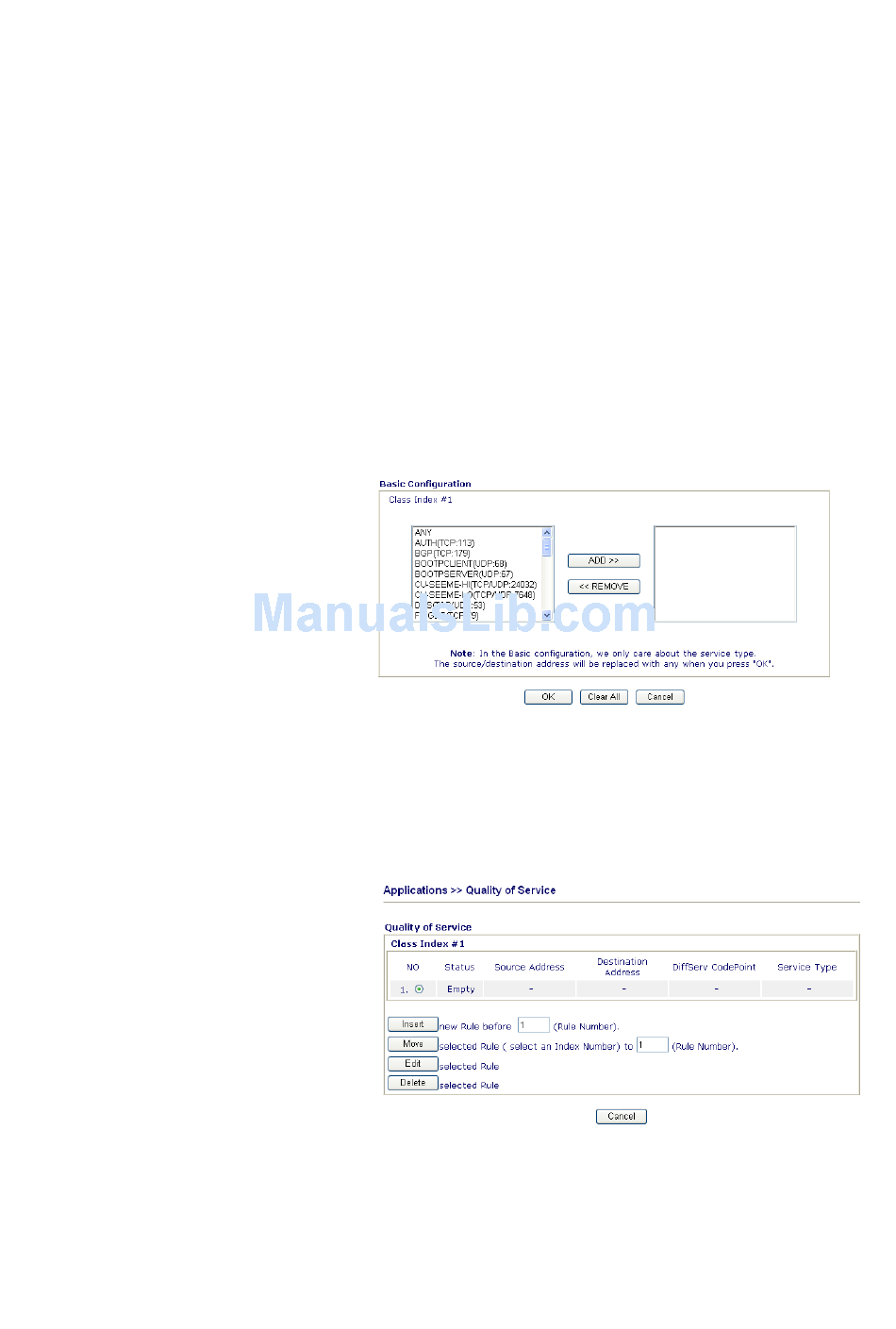

Click this button to open basic configuration for each index
number.
Choose one of the items from the left box and click ADD>>.
The selected one will be shown on the right box. To remove the
selected on from the right box, simply choose the one again and
click <<Remove.
Click this button to open advanced configuration for each index
number. You can insert, move, edit or delete select rule in this
page.
For inserting a rule, click Insert to open the following page.
59
