Upnp - Draytek Vigor 3100 Series User Manual

Enable
Server IP Address
Destination Port
Shared Secret
Re-type Shared Secret
3 . 5 . 4 U P n P
3 . 5 . 4 U P n P
The UPnP (Universal Plug and Play) protocol is supported to bring to network connected
devices the ease of installation and configuration which is already available for directly
connected PC peripherals with the existing Windows 'Plug and Play' system. For NAT routers,
the major feature of UPnP on the router is "NAT Traversal". This enables applications inside
the firewall to automatically open the ports that they need to pass through a router. It is more
reliable than requiring a router to work out by itself which ports need to be opened. Further,
the user does not have to manually set up port mappings or a DMZ. UPnP is available on
Windows XP and the router provides the associated support for MSN Messenger to allow full
use of the voice, video and messaging features.

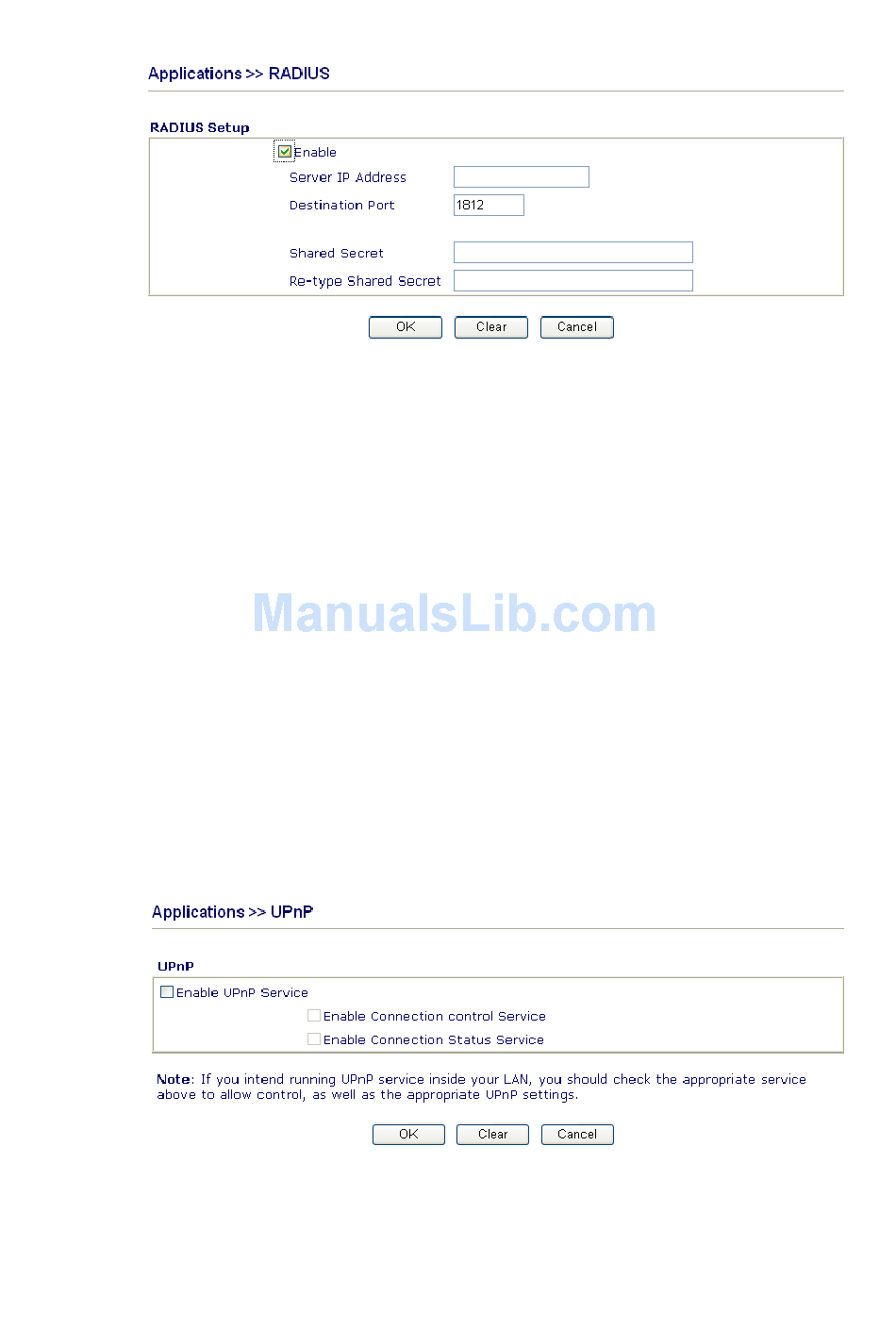

Enable UPNP Service
Vigor3100 Series User's Guide
Check to enable RADIUS client feature
Enter the IP address of RADIUS server
The UDP port number that the RADIUS server is using. The
default value is 1812 , based on RFC 2138.
The RADIUS server and client share a secret that is used to
authenticate the messages sent between them. Both sides must
be configured to use the same shared secret.
Re-type the Shared Secret for confirmation.
Accordingly, you can enable either the Connection Control
Service or Connection Status Service.
55
