Syslog/Mail Alert - Draytek Vigor 3100 Series User Manual

Click Restore button and wait for few seconds, the following picture will tell you that
3.
the restoration procedure is successful.
3 . 8 . 4 S y s l o g /
3 . 8 . 4 S y s l o g /

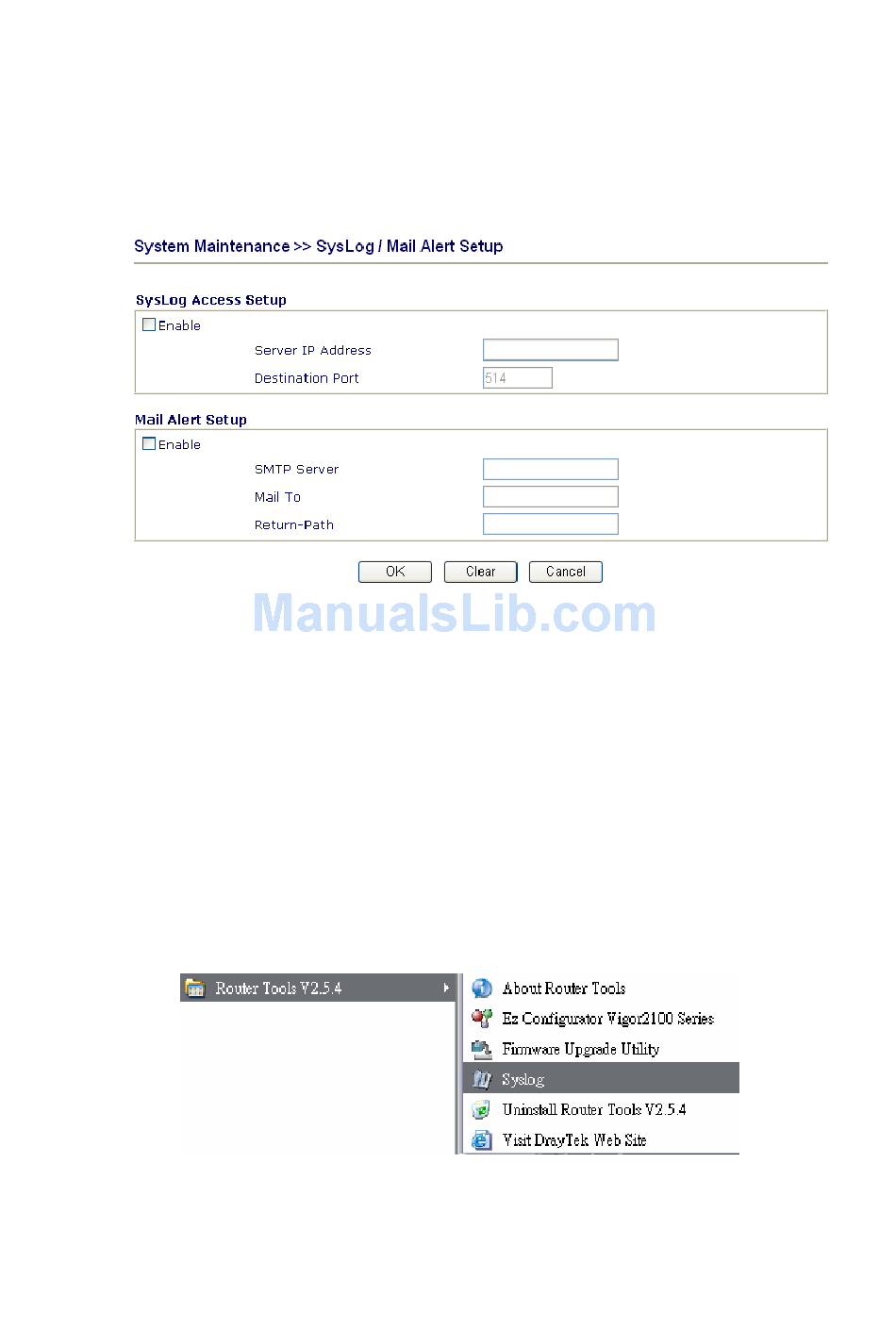

SysLog function is provided to help users to monitor router. There is no bother to directly get
into the Web Configurator of the router or borrow debug equipments.
Enable
Syslog Server IP
Destination Port
SMTP Server
Mail To
Return-Path
Click OK to save these settings.
For viewing the Syslog, please do the following:
1. Just set your monitor PC's IP address in the field of Server IP Address
2. Install the Router Tools in the Utility within provided CD. After installation, click on the
Router Tools>>Syslog from program menu.
3. From the Syslog screen, select the router you want to monitor. Be reminded that in
Network Information, select the network adapter used to connect to the router.
Otherwise, you won't succeed in retrieving information from the router.
80
M a i l A l e r t
M a i l A l e r t
Click "Enable" to activate this function.
The IP address of the Syslog server.
Assign a port for the Syslog protocol.
The IP address of the SMTP server.
Assign a mail address for sending mails out.
Assign a path for receiving the mail from outside.
Vigor3100 Series User's Guide
