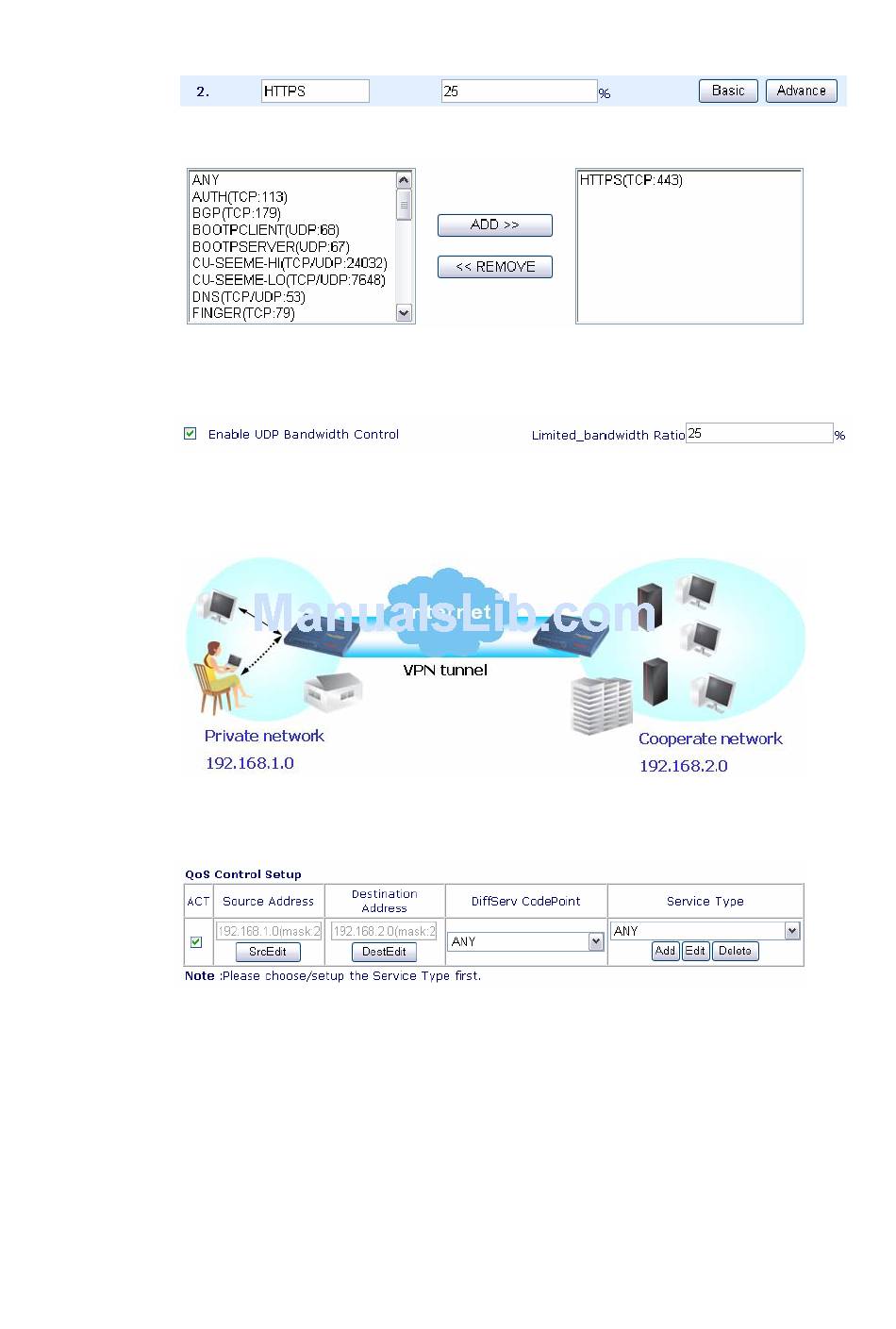

HTTPS. And click Basic button on the right.
5.
Select HTTPS in the list on the left column and click on ADD to add to right column.
Click OK to exit.
6.
Check the Enable UDP Bandwidth Control on the bottom to prevent enormous UDP
traffic of VoIP influent other application.
7.
If the worker has connected to the headquater using host to host VPN tunnel. (Please
refer to Chapter 8 VPN for detail instruction), he may set up an index for it. Enter the
Class Name of Index 3. In this index, she will set reserve bandwidth for 1 VPN tunnel.
And click Advance button on the right.
8.
Click edit to open a new window. First, check the ACT box. Then click SrcEdit to set a
Jane's subnet address. Click DestEdit to set headquarter's subnet address. Leave other
fields and click OK.
4
.
4
L
A
N
–
C
r
e
4
.
4
L
A
N
–
C
r
e
An example of default setting and the corresponding deployment are shown below. The
default Vigor router private IP address/Subnet Mask is 192.168.1.1/255.255.255.0. The built-in
DHCP server is enabled so it assigns every local NATed host an IP address of 192.168.1.x
starting from 192.168.1.10.
Vigor3100 Series User's Guide
a
t
e
d
b
y
U
s
i
n
g
a
t
e
d
b
y
U
s
i
n
g
N
A
T
N
A
T
99
