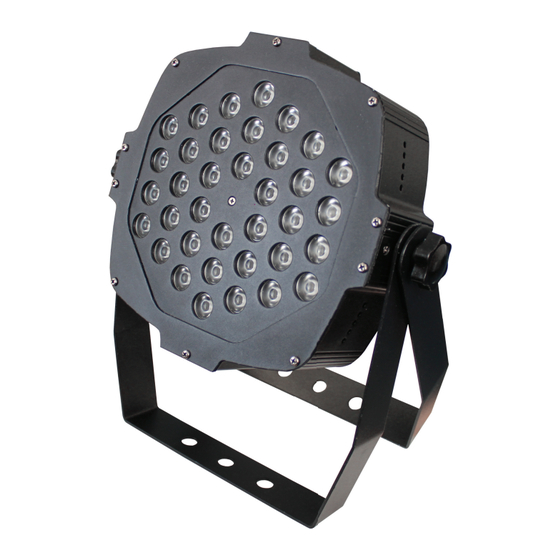

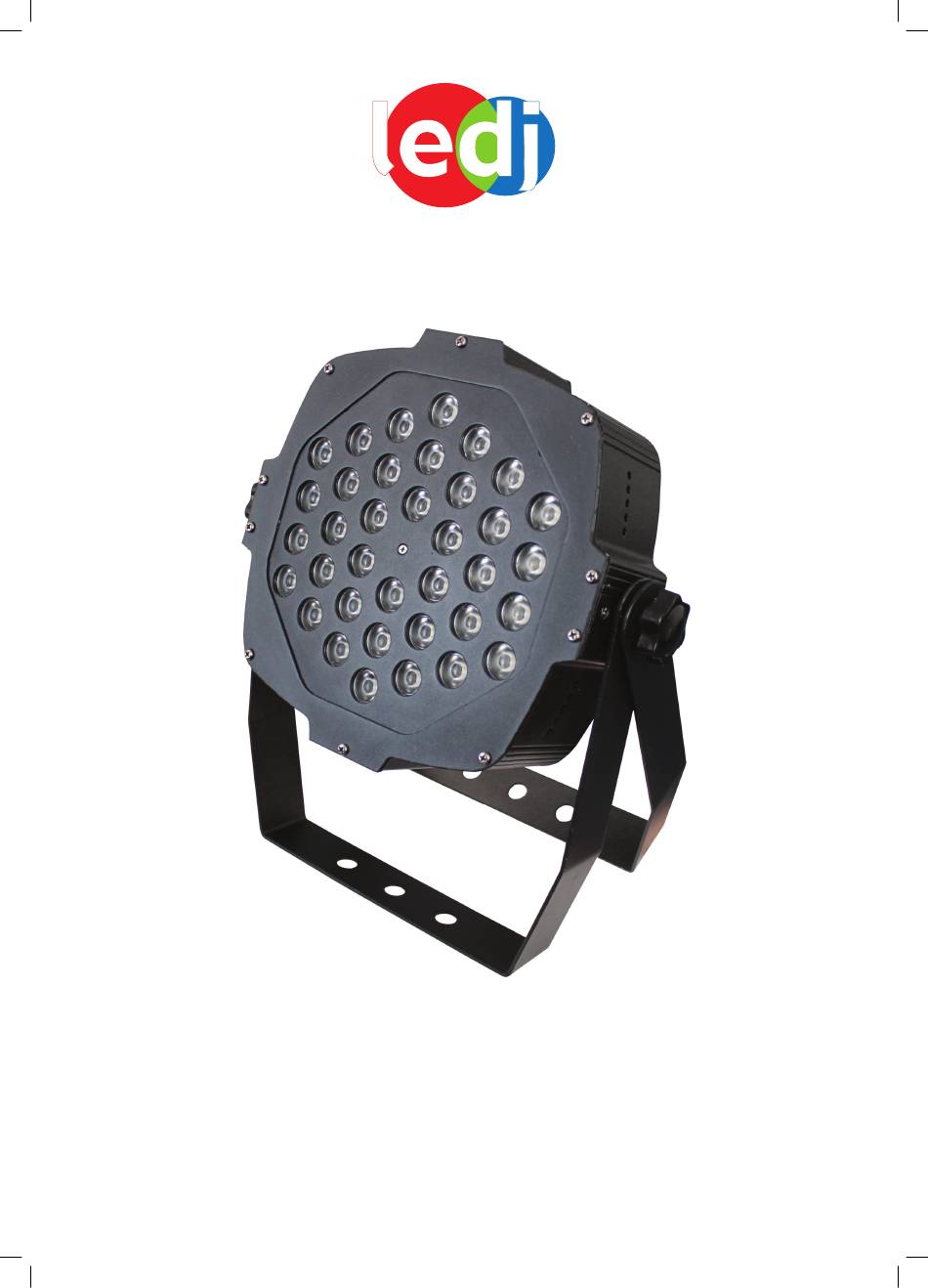

Slimline 36 RGBW
(Order code: LEDJ55)
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slimline 36 RGBW and is the answer not in the manual?

Questions and answers

Summary of Contents for Ledj Slimline 36 RGBW

  • Page 1 . p r o l i g h t . c o . u k Slimline 36 RGBW (Order code: LEDJ55) USER MANUAL...
  • Page 2 LEDJ Slimline 36 RGBW Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
  • Page 3 LEDJ Slimline 36 RGBW Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
  • Page 4 LEDJ Slimline 36 RGBW Technical specifications You should find inside the LEDJ carton the following items: 1, Slimline 36 RGBW Unit 2, Instruction manual 3, Power cable Technical Specifications: DMX channels: 7 400Hz flicker free 3W RGBA LEDs Power supply: AC 240 ~ 50Hz...
  • Page 5 Operation 1, RGBW colour mix mode In this mode you can set the Slimline 36 RGBW to any colour and any brightness. Press the “MODE” button to show “C1” with two digits after it. The “C1” represents Red, “C2” = Green, “C3” = Blue, “C4” = White and “CF” = strobe.
  • Page 6 LEDJ Slimline 36 RGBW Operation 7 Channel DMX chart Channel Value Function 000-255 Master dimmer 000-255 Strobe 000-255 Red (0 - 100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) Blackout 5-80 Colour Macro 81-150 Colour change 151-255 Colour fade...
  • Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Slimline 36 RGBW can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
  • Page 8 LEDJ Slimline 36 RGBW DMX Setup Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
