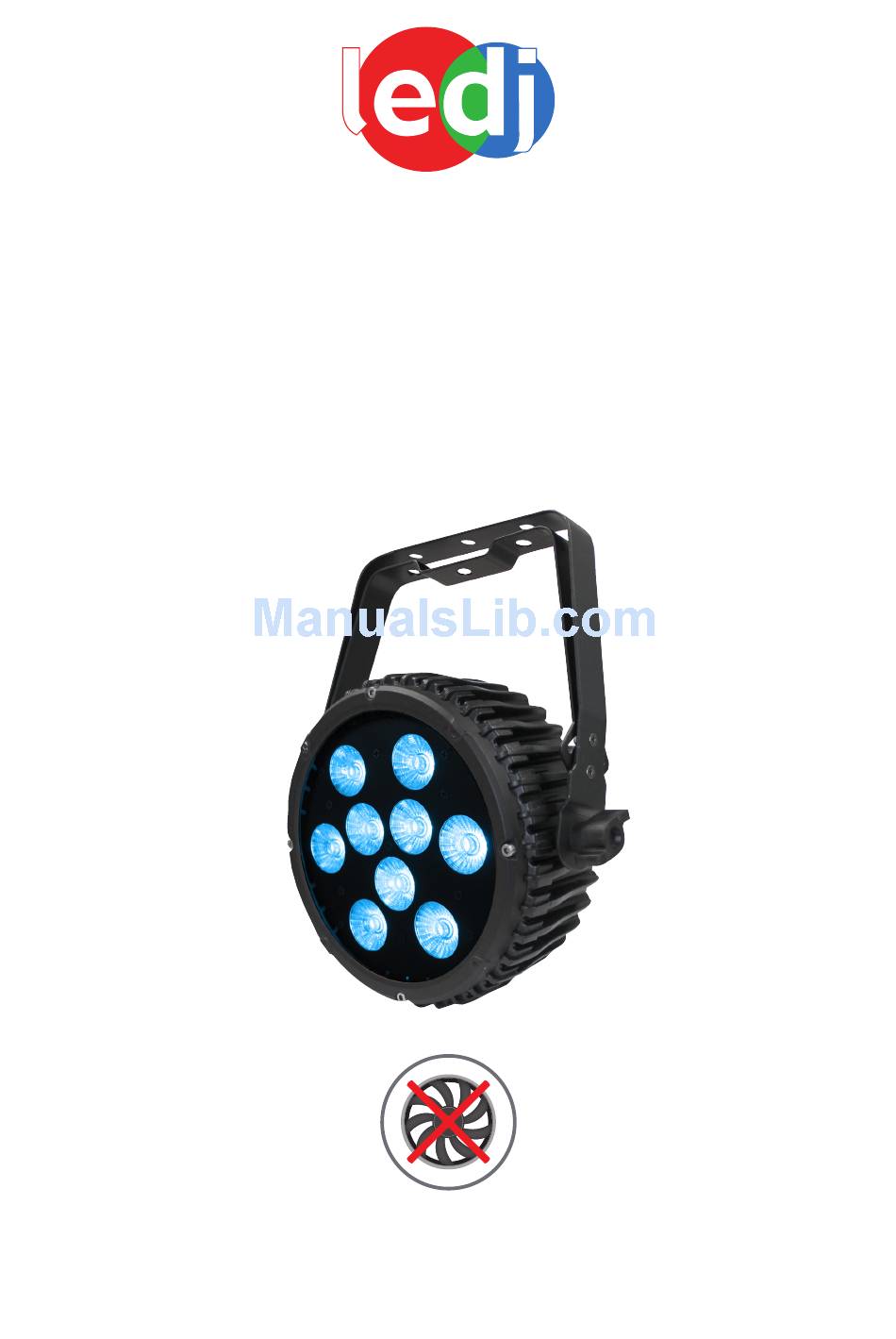

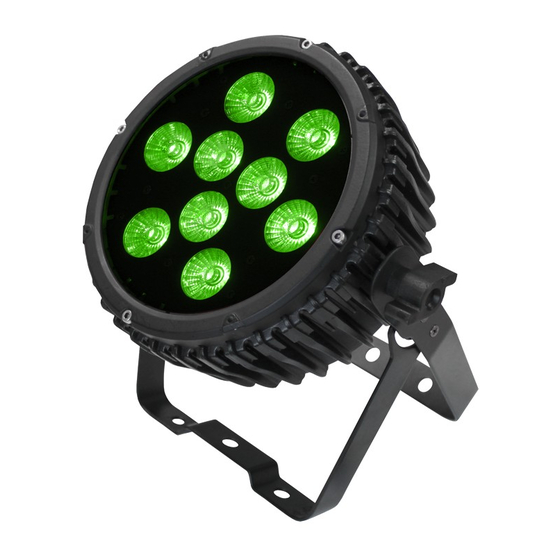

Page 1: User Manual
Intense 9HEX10 LED Slim Par 9 x 10W 6-in-1 colour LEDs (RGBWAUV) User Manual Convection cooled, no fan! Order code: LEDJ254A... -
Page 2: Safety Advice
• If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 100~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual... - Page 3 • Static colour, colour change, colour fade, auto run, sound active and master/slave modes • 0 - 100% dimming with variable strobe • Bracket allows for multiple rigging and floor standing applications • 4 push button menu with LED display • IEC power in/out sockets • 3-pin XLR in/out sockets • Convection cooled • Optional barn door/gel frame kit (LEDJ253A) Specifications Intense 9HEX10 25° - Lux 8650 2244 Power consumption Power supply 100~240V, 50/60Hz Fuse T1.5A 250V 25° Dimensions 295 x 260 x 93mm Weight 2.6kg Order code LEDJ254A 260mm 93mm www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual...
-
Page 4: Technical Specifications
POWER OUT DMX OUT 100~240V, 50/60Hz FUSE: F1A 250V 01 - Bracket 05 - Function buttons 09 - IEC power in socket In the box: 1 x fixture, 02 - Bracket tightening knobs 06 - Safety bond point 10 - IEC power out socket 1 x power cable & 03 - Earth point 07 - DMX input socket 11 - Fuse F1A 250V 1 x user manual 04 - LED display 08 - DMX output socket www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual... -
Page 5: Operating Instructions
Function 000-255 Master dimmer (0-100%) 000-016 000-255 colour macro 017-033 Green 034-050 Blue 051-067 White 068-084 Amber 085-101 102-118 Yellow (R - 255, G - 200, A - 255) 119-135 Cyan (G - 255, B - 255) 136-152 Lavender (R - 170, B - 210) 153-169 Bright green (G - 255, A - 180) 170-186 Magenta (R - 255, B - 90, UV - 255) 187-203 Turquoise (G - 255, B - 180, UV - 255) 204-220 Orange (R - 200, A - 200) 221-237 Cool white (R - 70, G - 190, B - 255, A - 200) 238-255 Warm white (R - 230, G - 255, B - 255, A - 255, W - 255) www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual... - Page 6 5 channel mode: 6 channel mode: Channel Value Function Channel Value Function 000-255 Red (0-100%) 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 000-255 White (0-100%) 000-255 Amber (0-100%) 000-255 Amber (0-100%) 000-255 UV (0-100%) www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual...
- Page 7 068-084 Amber 085-101 UV 102-118 Yellow (R - 255, G - 200, A - 255) 119-135 Cyan (G - 255, B - 255) 136-152 Lavender (R - 170, B - 210) 153-169 Bright green (G - 255, A - 180) 170-186 Magenta (R - 255, B - 90, UV - 255) 187-203 Turquoise (G - 255, B - 180, UV - 255) 204-220 Orange (R - 200, A - 200) 221-237 Cool white (R - 70, G - 190, B - 255, A - 200) 238-255 Warm white (R - 230, G - 255, B - 255, A - 255, W - 255) 000-255 Program speed when channel 8 is 001-241 000-255 Sound sensitivity (0-31) when channel 8 is 242-255 000-255 Strobe (slow-fast) www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual...
-
Page 8: Master/Slave Mode
. Now use the “UP” and “DOWN” r. 0 00 r. 2 55 buttons to select the brightness between . Press the “ENTER” button and repeat for green, blue, white, amber and UV. Value: 000 - 255 (000 = low, 255 = high) To exit out of any of the above options, press the “MODE” button. Master/slave mode: To set the master unit, press the “MODE” button on the rear of the master unit then select your desired program (sound active, auto, static colour or one of the built-in programs). SLAU To set the other units in slave mode, press the “MODE” button on the rear of the unit to show on the LED display and press the “ENTER” button to confirm the setting. The units will now run in sequence with the master unit. To exit out of any of the above options, press the “MODE” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual... - Page 9 0 00~g. 2 55 G b. 0 00~b. 2 55 B u. 0 00~u. 2 55 W A. 0 00~A. 2 55 A I. 0 00~I. 2 55 UV Auto mode AUTO Slave mode SLAV Sound active mode SU00~SU31 DMX mode 2CH, 3CH, 3CH, 4CH, 4CH, 5CH, 6CH, 8CH, 10CH Address setting A001~A512 www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual...
-
Page 10: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual... -
Page 11: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual... -
Page 12: Weee Notice
Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual... -
Page 13: Optional Accessories
Optional accessories Please contact your local retailer to purchase these accessories. Optional barn door/gel frame Order code: LEDJ253A Optional Quad Case (Holds 4 x fixtures) Order code: CASE65 To keep up-to-date on the latest accessories and product range additions please visit www.prolight.co.uk www.prolight.co.uk Intense 9HEX10 LED Slim Par User Manual...
