Summary of Contents for Ledj Q Pix Batten LEDJ97

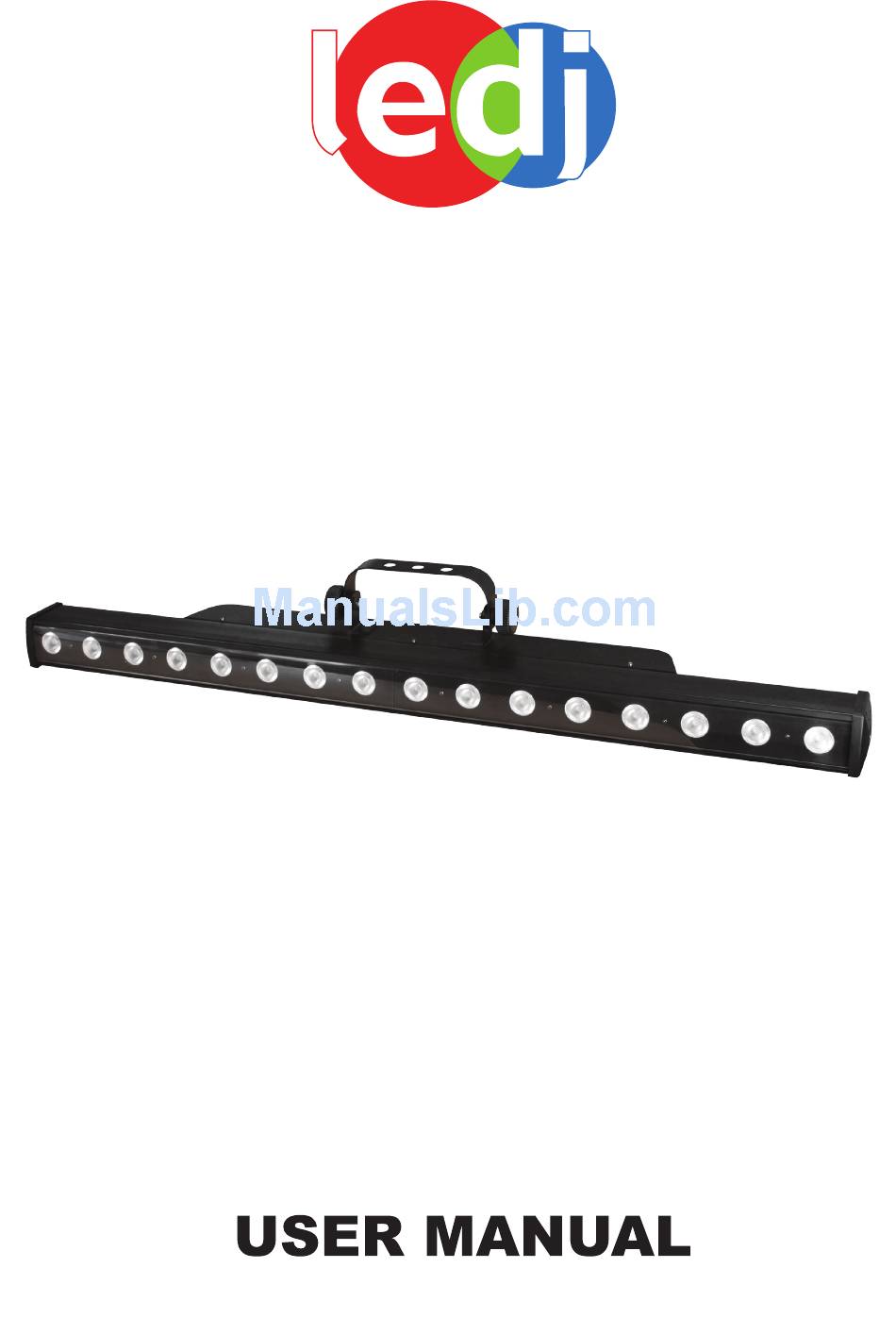

- Page 1 www.prolight.co.uk ORDER CODE: LEDJ97...
-
Page 2: Safety Instructions
LEDJ Q Pix Batten Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
LEDJ Q Pix Batten Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 LEDJ Q Pix Batten Technical specifications You should find inside the carton the following items: 1, LEDJ Q Pix Batten 2, Power cable 3, User manual 4, Mounting Brackets Technical Specifications: DMX channels: 4, 6, 10, 18, 32 or 34 selectable...
- Page 5 LEDJ Q Pix Batten Operation modes Operation modes: DMX mode: To select DMX mode, press the “MENU” button to show “ADDR” on the display and press the “ENTER” button. Now use the “UP” and “DOWN” buttons to set the DMX address from 001-512.
- Page 6 LEDJ Q Pix Batten DMX Charts Software version mode: To show the Software version, press the “MENU” button to show “VERS” on the display. Now press the “ENTER” button to display the units software version “xxx”. 4 channel DMX chart:...
- Page 7 LEDJ Q Pix Batten DMX Charts 18 channel DMX chart: CH10 Speed 0-100% 0-100% 0-100% 0-100% 0-100% 0-100% 0-100% 0-100% CH11 CH12 CH13 CH14 CH15 CH16 CH17 CH18 0-100% 0-100% 0-100% 0-100% 0-100% 0-100% 0-100% 0-100% 32 channel DMX chart: LEDs controlled in pairs...
- Page 8 LEDJ Q Pix Batten DMX Set Up DMX Control Mode Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently.
- Page 9 LEDJ Q Pix Batten DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 10 LEDJ Q Pix Batten Notes Notes:...
- Page 11 LEDJ Q Pix Batten Notes Notes:...
- Page 12 Create the mood www.prolight.co.uk...
