External Battery Expansions

PROTECT C. 2000 R, C. 3000 R and C. 6000 R require at least
one external battery module for accurate operation. To achieve
longer backup time, it is possible to connect multi-battery
packs. Connect exclusively the following products together:
PROTECT C. 1000 R
PROTECT C. 2000 R
PROTECT C. 3000 R
PROTECT C. 6000 R
PROTECT C.R with 1 battery expansion

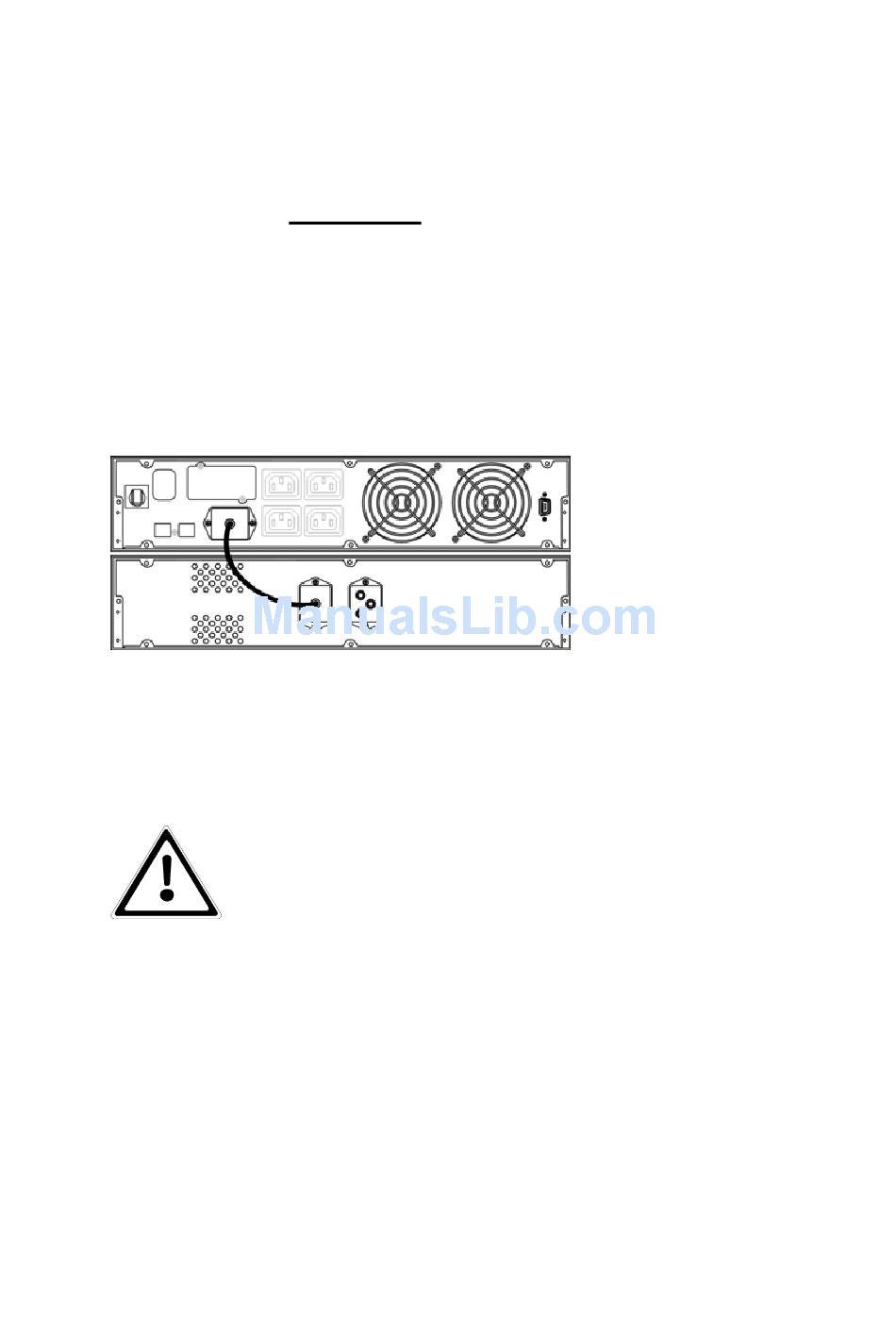

Fig.: PROTECT C. 2000 R and C. 2030 R BP
1.
2.
with
with
with
with
Check the correct fit of the UPS and the battery
unit (compare the stated DC voltage on the label
of the UPS and the battery unit).
Never connect different battery voltage levels
with each other!
Now connect both battery connectors using the
supplied battery
connecting, make sure that you push the plug
quickly and firmly in the battery connectors.
PROTECT C. 1000 R BP
PROTECT C. 2030 R BP
PROTECT C. 2030 R BP
PROTECT C. 6000 R BP
connection
28
cable. When
