4.3.3

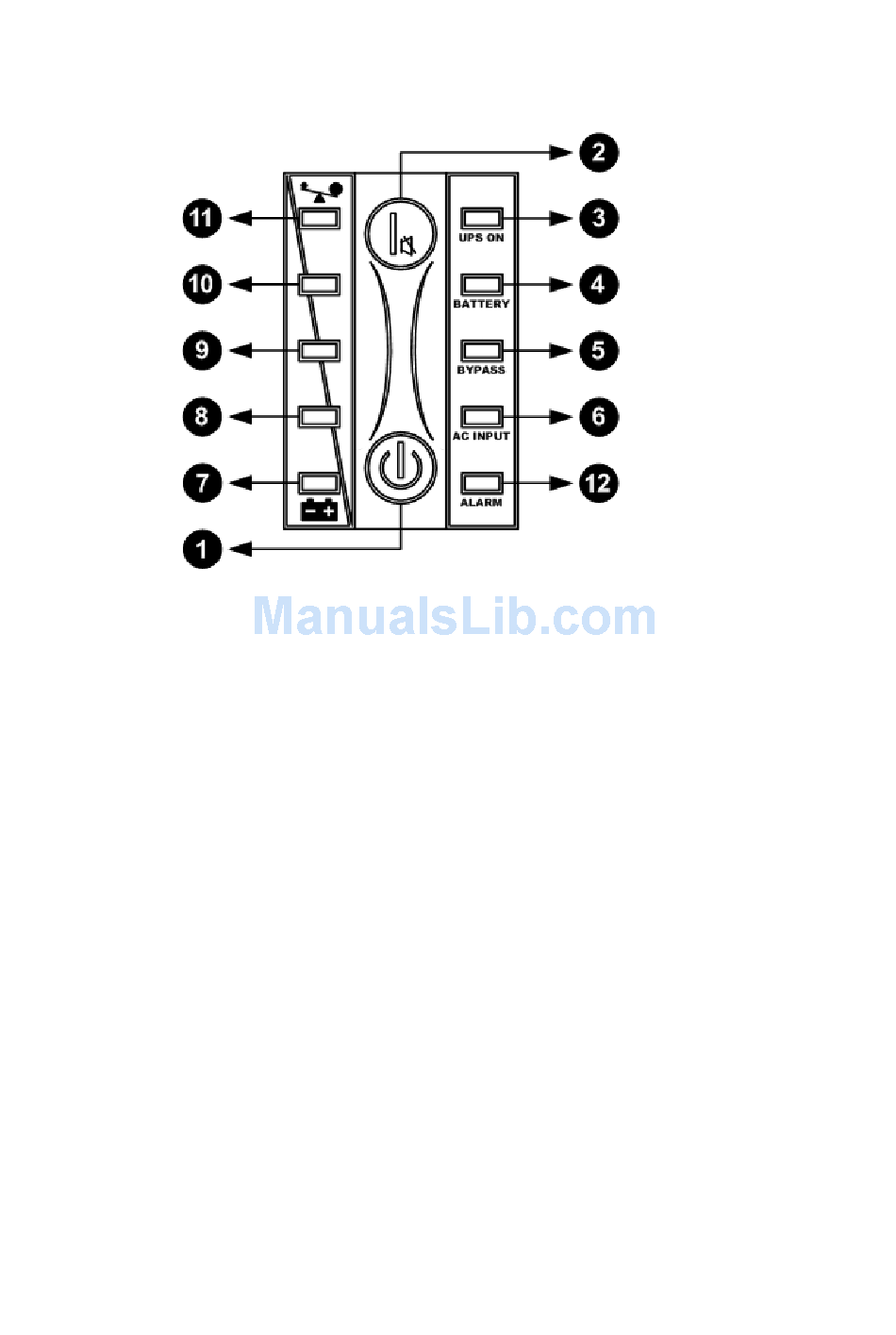

Display

Explanations
1. ON-Pushbutton
2. OFF-Pushbutton (Off) / Alarm off
3. Green LED rectifier (UPS ON)
4. Orange LED for battery mode (BATTERY)
5. Orange LED bypass (BYPASS)
6. Green LED for net state (AC INPUT)
7. - 11. Bar graph LEDs ( 7-10 green, 11 orange) for
7. LED load (0-35%)
8. LED load (36-55%)
9. LED load (56-75%)
10. LED load (76-95%)
11. LED load (96-105%)
12. Red fault LED (ALARM)
You will find detailed explanations of the displays on page 38.
UPS battery utilization respectively capacity
(remaining autonomy time)
battery capacity (96-100%)
battery capacity (76-95%)
battery capacity (51-75%)
battery capacity (26-50%)
battery capacity (0-25%)
