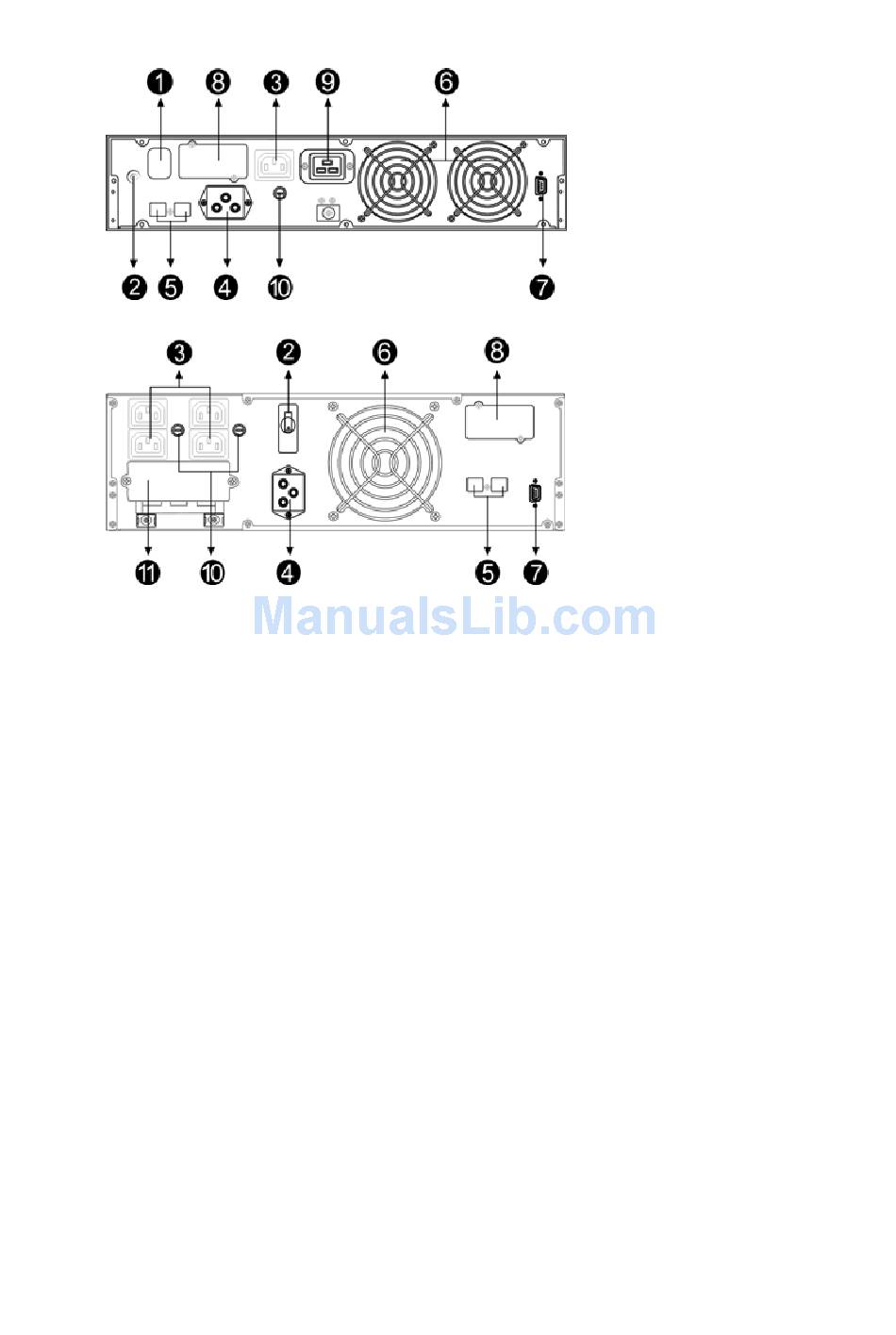

PROTECT C. 3000 R (S)
PROTECT C. 6000 R
Comments
1. Mains connection (UPS input)
PROTECT C. 6000 R via terminal block (Pos. 11)
2. Mains input circuit breaker
3. Load connections (UPS outputs) PROTECT C. 3000 R (S)
with additional load connection (IEC 320-16A – Pos.9).
PROTECT C. 6000 R additionally via terminal block (Pos.11)
4. Connection for external battery module
5. Data interface for telephone, modem fax (RJ11)
or 10/100 MBit/s network (RJ 45)
6. Vent (Attention: At least 10 cm of free area are
required behind the vent for free ventilation!)
7. Communication interface RS232 (SUB-D9)
8. Communication slot for optional expansion cards:
SNMP, AS/400
9. Outlet 16A (only for PROTECT C. 3000 R (S))
10. Circuit breaker for appliance connectors
(PROTECT C. 3000 R (S) and PROTECT C. 6000 R)
11. Connector via terminal block (only C. 6000 R)
