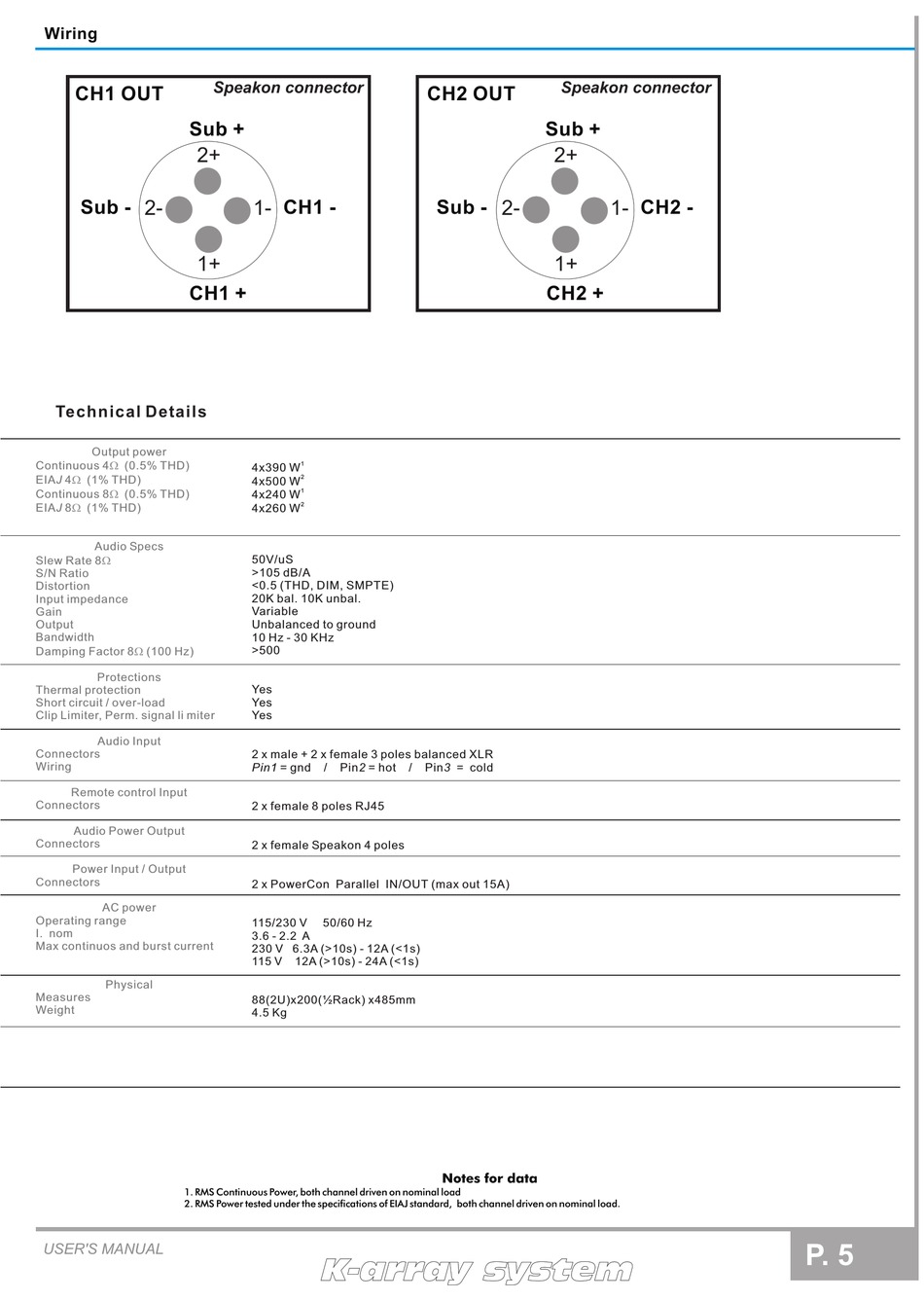

Wiring
CH1 OUT
Sub +
2+
Sub - 2-
1+
CH1 +
Technical Details
Output power
Continuous 4 (0.5% THD)
W
EIA 4 J W (1% THD)
Continuous 8 (0.5% THD)
W
EIA 8 J W (1% THD)
Audio Specs
Slew Rate 8 W
S/N Ratio
Distortion
Input impedance
Gain
Output
Bandwidth
Damping Factor 8 W (100 Hz)
Protections
Thermal protection
Short circuit / over-load
Clip Limiter, Perm. signal li miter
Audio Input
Connectors
Wiring
Remote control Input
Connectors
Audio Power Output
Connectors
Power Input / Output
Connectors
AC power
Operating range
I. nom
Max continuos and burst current
Physical
Measures
Weight
1. RMS Continuous Power, both channel driven on nominal load
2. RMS Power tested under the specifications of EIAJ standard, both channel driven on nominal load.
USER'S MANUAL
Speakon connector
1- CH1 -
1
4x390 W
2
4x500 W
1
4x240 W
2
4x260 W
50V/uS
>105 dB/A
<0.5 (THD, DIM, SMPTE)
20K bal. 10K unbal.
Variable
Unbalanced to ground
10 Hz - 30 KHz
>500
Yes
Yes
Yes
2 x male + 2 x female 3 poles balanced XLR
Pin1 = gnd / Pin = hot 2
2 x female 8 poles RJ45
2 x female Speakon 4 poles
2 x PowerCon Parallel IN/OUT (max out 15A)
115/230 V 50/60 Hz
3.6 - 2.2 A
230 V 6.3A (>10s) - 12A (<1s)
115 V 12A (>10s) - 24A (<1s)
88(2U)x200(½Rack) x485mm
4.5 Kg
Speakon connector
CH2 OUT
Sub +
2+
Sub - 2-
1+
CH2 +
/ Pin 3 = cold
Notes for data
1- CH2 -
