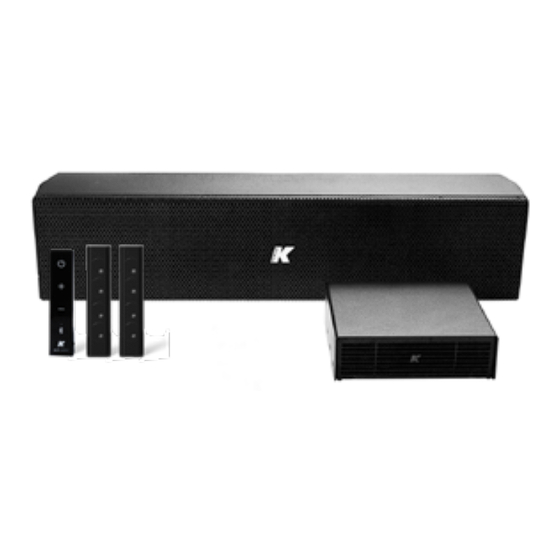

- Page 1 Azimut USER GUIDE Minimalist design, maximum connectivity Azimut-KAMUT2L1 Azimut-KAMUT2L14 Azimut-KAMUT2V25 Azimut-KAMUT2L...
- Page 2 AZIMUT-uguide-v4.4...
-
Page 3: Table Of Contents
Azimut User Guide Index Unpacking Remote Connectivity Azimut-KAMUT2L1 Azimut Discovery app Azimut-KAMUT2V25 Bluetooth pairing Azimut-KAMUT2L14 Reset Network Parameters Azimut-KAMUT2L Azimut Control Interface Main menu Hardware Configuration Network & Bluetooth Azimut-KAMUT2L1 Local streaming Azimut-KAMUT2V25 Advanced settings Azimut-KAMUT2L14 SYSTEM UPDATE Azimut-KAMUT2L UPDATE VIA USB Loudspeaker Wirings Lyzard wirings Hardware control setup... - Page 4 This device complies with Restriction of Hazardous moisture, does not operate normally, or has been dropped. Substances Directive. • K-array will not shoulder any responsibilities for products modified without prior authorization. • K-array cannot be held responsible for damage caused by improper use of the loudspeakers.
- Page 5 Azimut User Guide Thank you for choosing this K-array product! To ensure proper operation, please carefully read this owner’s manual and safety instruction before using the product. After reading this manual, be sure to keep it for future reference. Should you have any questions about your new device please contact K-array customer service at support@k-array.com or contact the official K-array distributor...
-
Page 6: Unpacking
Azimut Unpacking User Guide Each K-array amplifier is built to the highest standard and A. Lyzard-KZ1 thoroughly inspected before leaving the factory. Upon arrival, B. Lyzard-KZ14 carefully inspect the shipping carton, then examine and test C. Vyper-KV25 D. Truffle-KTR24 your new amplifier. If you find any damage, immediately notify E. -
Page 7: Hardware Configuration
Azimut Hardware Configuration User Guide Azimut-KAMUT2L1 Azimut-KAMUT2L14 Output Subwoofer Output RIGHT Output Subwoofer Output RIGHT Output LEFT Output LEFT Subwoofer connector Subwoofer connector Available optional: Lyzard-KZ1, Truffle-KTR24 Available optional: Lyzard-KZ14, Truffle-KTR25 Up to 4 Lyzard-KZ1 per channel can be Up to 4 Lyzard-KZ14 per channel can be connected in parallel. -
Page 8: Loudspeaker Wirings
Lyzard wirings Lyzard loudspeakers are already pre-wired with 5 m (16.4 ft) of ultra-thin speaker cable to be directly connected to the K-array Kommander-KA02 power amplifier. Before connecting the loudspeaker cable to the amplifier: • insure the amplifier’s minimum loading impedance... -
Page 9: Installation
Azimut User Guide Installation 2. Drill a 4 mm (0.15 in) diameter hole in the surface with a deep of at least 20 mm (0.80 in); Adhesive strips and Dual Lock pads The adhesive strips and Dual Lock pads are intended for quick and clean installation on flat surfaces, being ready to 4 mm (0.15 in) use for either fixed and temporary installations. -
Page 10: Subwoofer
Azimut User Guide Wireless Remote Subwoofer Truffle subwoofer are designed to be easy to conceal on top or bottom of the furnitures. Insure to leave enough free space Status LED all around the subwoofer in order to let the sound propagate Bluetooth System power properly. -
Page 11: Wired Remote
Azimut User Guide Wired Remote Remote Connectivity Name and password for accessing the Azimut Control Status LED Interface are collected on a label underneath the Kommander- Power button KA02 amplifier. Volume UP Default IP: 192.168.10.1 Volume DOWN Default password: 12345678 Pairing LED Azimut Discovery app Bluetooth switch... -
Page 12: Reset Network Parameters
Azimut User Guide Reset Network Parameters Azimut Control Interface With the system on, keep pressed for 10 seconds the network reset button on the rear panel to revert the network parameters to the default factory settings. Main menu The network addressing mode reverts to DHCP and the Audio sources default Wi-Fi IP address and password are restored. -
Page 13: Main Menu
Azimut User Guide Main menu Network & Bluetooth Pairing Click this button to set the system in Pairing mode waiting for a connection. Edit Password Click this button to set a new password for the local Wi-Fi of the Azimut system Remote control The default view with Audio sources and Players selections. -
Page 14: Local Streaming
Azimut User Guide Local streaming This feature allows to manage a group of Kommander-KA02 Azimut amplifiers by a single Azimut system. Preliminary setup: Master This device will • Connect all the Kommander-KA02 to the same network; stream audio to • Set a unique name on each device in order to ease its detection and any Slave system setup (see Advanced section for details);... -
Page 15: Advanced Settings
2. Browse the Main menu and click on Advanced; 3. Expand the Version Info section: if the Azimut system is connected to Internet, the system will look for updates on K-array website. When a new firmware version is available, the Download button lights on. -
Page 16: Hardware Control Setup
Azimut User Guide Hardware control setup The Kommander-KA02 Azimut amplifier provides a General Purpose Input connector designed to connect up to four external normally open (NO) switches* to be set as a further remote user customizable controls. In order to bind the remote control to an Azimut operating functionality (actions) follow these step: 1. -
Page 17: Output Configuration
Azimut User Guide Output configuration This view allows to modify the loudspeaker assignment to the Kommander-KA02 amplifier output channels. These configuration shall be set by authorized operators. WARNING: wrong loudspeaker selection may seriously damage connected loudspeakers. Routing This view allows to modify the LEFT and RIGHT input channel assignment to the Kommander-KA02 amplifier output channels. -
Page 18: Azimut Remote App
Azimut User Guide Azimut Remote App In order to connect the Azimut Remote to the Azimut system: 1. Be sure that the Azimut systemn and your iOS device are connected to Azimut Remote is a iOS application that the same network. 2. - Page 19 Azimut User Guide In order to customize the action associated to the four You can eventually control a different device within the programmable buttons: network setting preceding the action string with the IP address of the target device; e.g. pause playback of the 1.
-
Page 20: Technical Specifications
Azimut User Guide Technical Specifications Lyzard-KZ1 Lyzard-KZ14 Vyper-KV25 Type Point source Line array Line array Rated Power 3.5 W 15 W 75 W Frequency Response 500 Hz – 18 kHz (-6 dB) 500 Hz – 18 kHz (-6 dB) 150 Hz – 18 kHz (-6 dB) Maximum SPL 86 dB (peak) 98 dB (peak) - Page 21 Azimut User Guide Truffle-KTR24 Truffle-KTR25 Truffle-KTR26 Rumble-KU44-2 Type Point source Point source Point source Point source Rated Power 60 W 80 W 100 W 120 W Frequency Response 45 Hz – 150 Hz (-6 dB) 45 Hz – 150 Hz (-6 dB) 45 Hz –...
- Page 22 Azimut User Guide This page left intentionally blank...
- Page 24 Designed and Made in Italy K-ARRAY surl Via P. Romagnoli 17 | 50038 Scarperia e San Piero - Firenze - Italy ph +39 055 84 87 222 | info@k-array.com www.k-array.com...
