K-array KA10-10 User Manual page 28

1
2
3
4

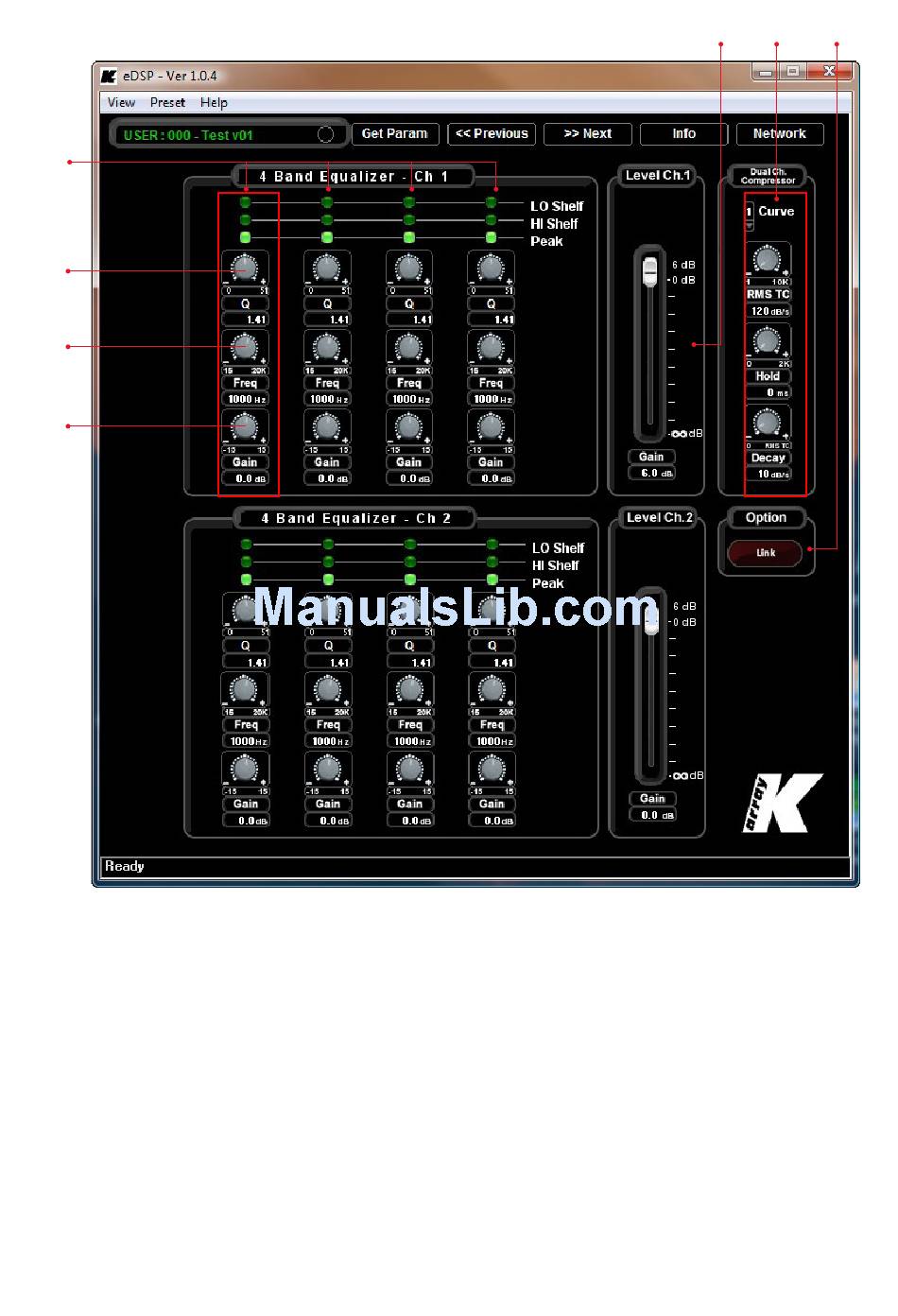

pic.5
Four different cells of EQ. can be enabled in three different modes: Low
1.
Shelf, High Shelf or Peak. The Low and High Shelf filters boost (or reduce)
energy at the set frequencies and all frequencies above it(in low shelf) or below
it (in high shelf) . The Peak filter boosts (or reduces) energy at the set frequency
and across a band of frequencies close to the set frequency.
The 'Q' value sets the width of the band of frequencies that will be boosted
2.
(or reduced)
The 'Freq' value sets the frequency around which you are operating.
3.
The 'Gain' value sets how much energy has to be boosted (or reduced)
4.
around the set frequency.
Main CH1 INPUT level
5.
Dedicated stereo dynamic processor.
6.
Press the 'Link' button to group together CH1 and CH2 settings.
7.
20
ENGLISH
5 6 7
