Control Panel Buttons - Blackmagicdesign ATEM Camera Converter Installation And Operation Manual

Using ATEM Camera Converter
11
PGM
OPTICAL VIDEO
PGM
OPTICAL VIDEO
PGM
TICAL VIDEO

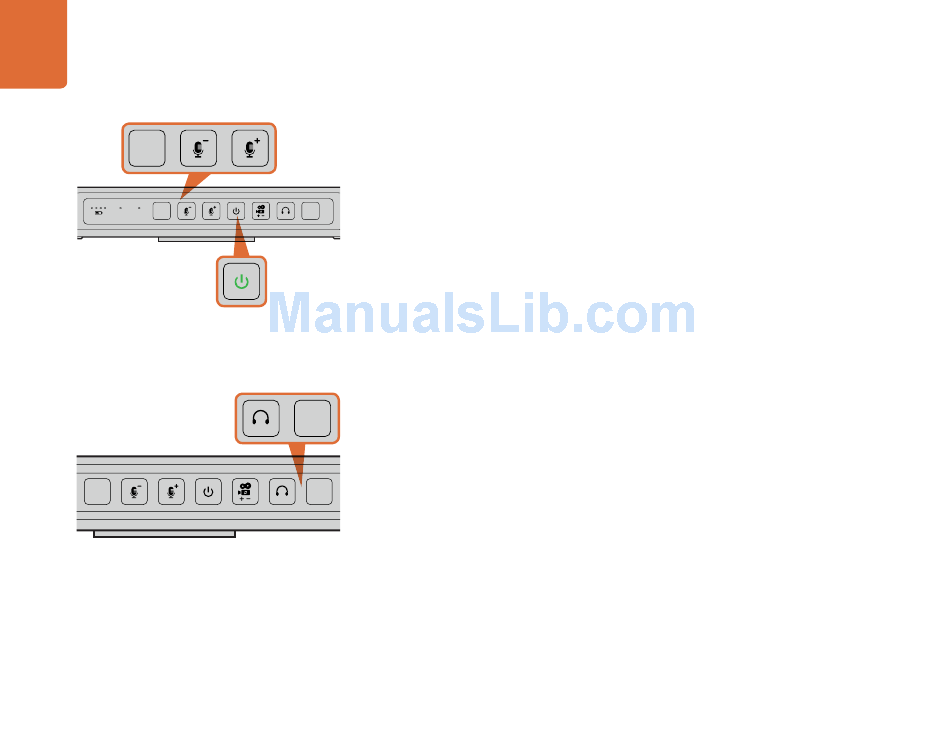

PGM button, microphone volume level and power on/off
buttons. The buttons will illuminate when pressed or activated.
GM
PGM
OPTICAL VIDEO
Talkback headphone volume, and press to talk buttons.

Control Panel Buttons

PTT
PGM
Pressing the program (PGM) button selects program video output or camera video output. The selected
output will be displayed on the attached monitor.
Microphone Volume Down/Up
PTT
The microphone volume buttons provide a quick way to adjust external audio levels. Each press of the
microphone volume buttons provide a smooth increase or decrease in volume over 1 second. When
maximum or minimum microphone volume is reached, or if at maximum or minimum volume at power up,
the relevant button will illuminate for 3 seconds. These buttons do not affect embedded SDI and HDMI
PTT
audio levels received directly from the camera.
Power On/Off
Press and release to instantly power on. Hold for 1 second to power off.
Camera Number
This button is used to set the camera number on your ATEM Camera Converter so your tally lights function
correctly. Refer to the section "Setting the Camera Number" on the next page for a detailed description.
Talkback Headphone Volume
PTT
Press this button to increase the volume of the talkback headphones. When maximum volume is reached, or
if at maximum volume at power up, the button will illuminate for 3 seconds. The next press will reduce the
volume to minimum before the volume is increased again.
PTT
PTT
Press to talk (PTT) allows camera operators to talk to the switcher operator. The button is held down while
talking. If the PTT button is pressed twice in quick succession, it will stay on to allow hands free communication.
If PTT is pressed again, it will revert to normal press-to-talk behavior.
