Connecting to a Switcher

The last steps in getting started is plugging into a live production switcher and confirming that your ATEM
Converters are working together properly. ATEM Studio Converter should typically be located within close
proximity to the switcher so the operator can easily access the talkback buttons.
SDI OUT

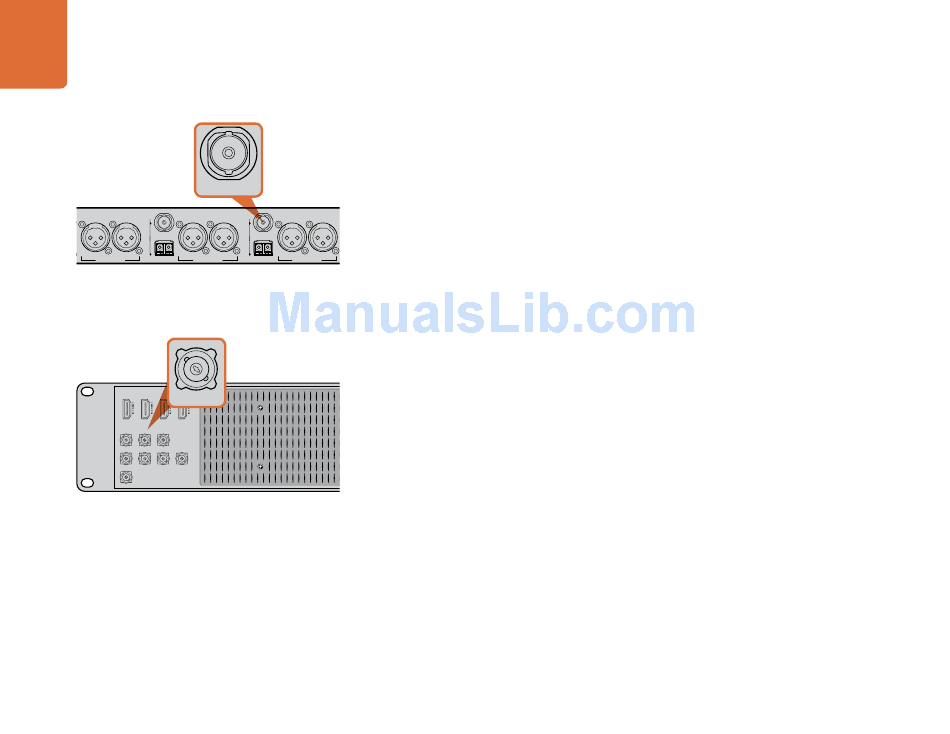

Step 1. Connect each of ATEM Studio Converter's SDI camera outputs to the appropriate SDI camera
inputs on your switcher using a BNC connector and cable.
AES/EBU TALKBACK LOOPS
OUT OUT
If using an ATEM switcher, tally signals are embedded in the program output so each ATEM Camera
IN IN
R
Converter can display tally indicators. You'll need to map your switcher buttons, and rename video inputs
OPTICAL OUT/IN
MIC H/PHONE
and Multi View labels to match the camera numbers set on each ATEM Camera Converter. For details,
refer to the 'Changing Switcher Settings' and 'Button Mapping' sections of the ATEM Production Switchers
manual.
Step 2. Connect your switcher's SDI program output into ATEM Studio Converter's PGM SDI input using a
BNC connector and cable.
If using more than four cameras, you can loop multiple ATEM Studio Converters together. For more detailed
descriptions on how to connect to a switcher, including looping multiple ATEM Studio Converters, refer to
'Connecting to an ATEM Switcher' on page 17.
