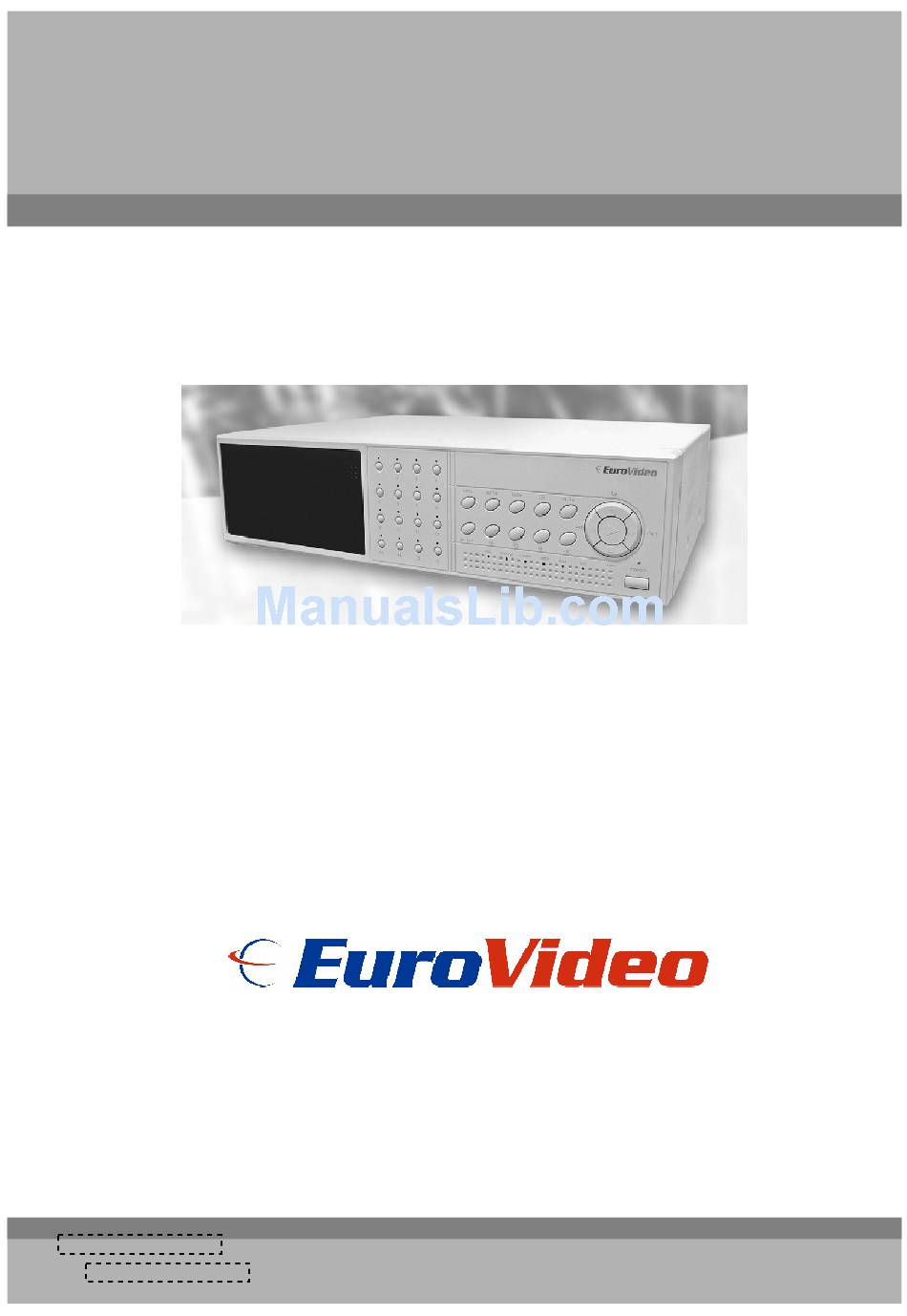

Page 1: User Manual
Digital Video Recorder User Manual Please read this instructions thoroughly before operation and retain it for future reference. EV-D1660 November 2004 V 1.2 www.eurovideo-cctv.com www.eurovideo-cctv.com... - Page 2 WA RN I N G All the safety and operating instructions should be read before operation. The improper operation may cause permanent damage. Please use the provided adaptor (Other adaptor is not suitable for this machine). Please lift and place this equipment gently. Do not expose this equipment to open sunlight.
-
Page 3: Table Of Contents
T A B L E OF CON T EN T S What do you get What do you get FEATURES ---------------------------------------------------------------------------------------- PACKAGE INCLUDING ------------------------------------------------------------------------ Before Operation Before Operation INSTALLATION GUIDE ------------------------------------------------------------------------ FRONT PANEL ----------------------------------------------------------------------------------- BACK PANEL ------------------------------------------------------------------------------------- Basic Operation Basic Operation START THIS UNIT -------------------------------------------------------------------------------- OPERATION ---------------------------------------------------------------------------------------- Detailed Menu Setup... -
Page 4: What Do You Get
What do you get ? FEA T U RES DVR Features Wavelet Compression Format replaces Time-Lapse VCR + Multiplexer 4 Audio inputs / 2 Audio outputs On Screen Display and RTC (Real time clock) Function Support from 4 channel to 7/9/10/13/16 channels video inputs Picture-In-Picture (PIP) is available in live and DVR playback modes Motion detection function and 4 Level video quality adjustable on each channel Alarm Input &... -
Page 5: Before Operation
Before Operation I N ST A L L A T I ON GU I DE 1. Connect cameras and monitor with the DVR. 2. Shown below is one example for connecting the DVR to your existing Observation System. 3. Install HDDs (The compatible HDD Brands are listed in the following table.) Please refer to page.20 Appendix #1 for installation instructions. -
Page 6: Front Panel
FRON T PA N EL 1. REMOVABLE HDD CARTRIDGE Please refer to page.20 Appendix #1. 2. MENU Press MENU to enter main menu. 3. ENTER Press ENTER for confirmation. 4. ZOOM Press ZOOM to enlarge the picture display. Press PIP button for Picture in Picture screen. 6. - Page 7 7, 9, 10, 13 channels display mode 16 channels display mode 11. LED LIGHT The LED Light is ON under following condition. HDD : HDD is activated HDD Full : HDD is full ALARM : If you want to turn off the ALARM LED light, please refer to page.14 and set the Camera / ALARM item as OFF.
-
Page 8: Back Panel
B A CK PA N EL MONITOR AUDIO AUDIO LOOP INPUT CALL RISK OF ELECTRIC SHOCK POWER EXTERNAL I/O DO NOT OPEN WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 9: Basic Operation
Basic Operation ST A RT T H I S U N I T Before using the DVR, please have the HDDs installed ready. (refer to Appendix #1 for installation or removal of HDDs). Connect the AC Power Cord with Power Adapter and plug into an electrical outlet. The Red LED indicator light will be ON and the DVR is in Standby mode. - Page 10 PLAY Press PLAY button, the DVR will show the last recording. 1. FAST FORWARD (F.F. ) & FAST REWIND (F.R.) You can increase the speeds of Fast Forward and Rewind on the DVR. In the Play mode, press once to get 2X speed forward and press twice to get 4X speed, and the maximum speed can reach 32X.
-
Page 11: Detailed Menu Setup
Detailed Menu Setup A CCESS M EN U The Menu allows you to configure your DVR settings. Please follow below steps to access the Menu : Password: 0000 Press the Menu button. The password screen will appear: The default Password is 0000. Simply press the Enter button to access the Menu. NOTE : To key-in the Password, press the Right and Left buttons to move between numbers, and use the Up and Down buttons to input the number. -
Page 12: Menu Options
M EN U OPT I ON S SYSTEM 1. AUDIO INPUT (MENU) To choose one of 4 channels to record. ( only can select 1 during operation for recording SEARCH TIMER 2. INT AUDIBLE ALARM RECORD To set the INTERNAL AUDIBLE ALARM. It will be trigged by event occurrence when CAMERA the setting is ON. - Page 13 11. NEW PASSWORD : XXXX (Default password : 0000) To set the new password. 12. CLEAR HDD Delete all the contents of your HDD. When you choose YES on this option, you will be prompted with the question shown : Press to clear HDD or press to confirm not to clear HDD.
- Page 14 TIMER 1. DAY Select the day, or days of the week (Mon Fri / Sat-Sun / Daily) that you wish to schedule the DVR to automatically record. NOTE : 1.Special Date could be changed by Enter , Up and Down buttons. 2.
-
Page 15: Motion Trigger Record
(MENU) RECORD SEARCH TIMER 1. HDD OVERWRITE RECORD Select YES to overwrite previous recording video in HDD. CAMERA NOTE : When the HDD is full under O/W Recording mode, previous recorded files SYSTEM may be overwritten without further warning notices. EVENT 2. -
Page 16: Motion Detection
M OT I ON DET ECT I ON MOTION DETECTION SETUP 1. Press MENU to enter the menu set up, then Down to CAMERA setup. 2. Press ENTER twice to enter the Motion Detection Setup. 3. Each screen displays the current camera picture overlaid with the motion targets (as Figure 1). You can push the button Left or Right , Up or Down to adjust motion detection in ON or OFF. - Page 17 Figure 1-1 MOTION DETECTION SETUP 1~15 Figure 1 MOTION DETECTION SETUP Figure 1-3 MOTION DETECTION SETUP-- ALL Figure 1-2 MOTION DETECTION SETUP-- LINE EVENT There are only 16 recorded events will be shown on a single page and please press to change the pages or press + to CLEAR the EVENT record.
-
Page 18: Advanced Operation
Advanced Operation OPERA T I ON OPT I ON S SELECT This device allows user to get the ideal view size. Press button to make different view size. Press Select then Left or Right button to locate the desired position. Press Camera Select (1-16) to select the appointed camera. -
Page 19: Key Lock
K EY L OCK For further security, you can Lock all buttons on your DVR. Locking disables the buttons and prevents other people from using the system. Press ENTER and MENU at the same time to enable Key Lock. Press ENTER and MENU at the same time and key in password (Default : 0000), then press ENTER to disable Key Lock. RS2 3 2 REM OT E PROT OCOL You can use the PC keyboard to simulate DVR keypad. -
Page 20: Trouble Shooting
T ROU B L E SH OOT I N G When malfunction occurs with DVR, it may be not serious and can be corrected easily. The table below describes some typical problems and their solutions. Please check them before calling your DVR dealer. PROBLEM SOLUTION HDD Not Found... -
Page 21: Installing The Hdd
A PPEN DI X # 1 I N ST A L L I N G t h e H DD Please follow the next steps carefully in order to ensure correct installation. The compartment located on the front panel of the DVR is the removable Cartridge Casing in which you insert the HDD. The various parts of the Cartridge Casing are labeled for your reference. - Page 22 Secure the HDD in the Casing (optional) Use the supplied screws and tighten them, positioning the HDD into place. Slide the top Cover over the Cartridge Casing Slide the Cover forward over the Cartridge Case. Ensure it is secured in place over the release latch. 6.Reinsert the Cartridge Casing into the DVR Fully insert the Cartridge Case into the DVR.
-
Page 23: Appendix #2 Pin Configurations
A PPEN DI X # 2 PI N CON FI GU RA T I ON S 25 pin com port 9 pin com port www.eurovideo-cctv.com... - Page 24 PIN 1. GND GROUND PIN 2. PIN 9. ALARM INPUT To connect wire from ALARM INPUT ( PIN 2 -- 9 ) to GND ( PIN 1 ) connector, DVR will start recording and buzzer will be on. When Menu/ Camera/ Alarm is set up to Low : When alarm input signal is Low , the unit starts to record and buzzer.
-
Page 25: Appendix #3 Rack Mount
A PPEN DI X # 3 RA CK M OU N T Screws and brackets for rack mounting applications can be purchased as an optional accessory. Front Angle with Rock Mount Side View with Rack Mount www.eurovideo-cctv.com... -
Page 26: Appendix #4 Recording Speed
A PPEN DI X # 4 RECORDI N G SPEED The Record Time is different based on Record Speed and Record Quality. Please refer to following table. NTSC SYSTEM PAL SYSTEM Note: Above data is from actual test data obtained from recording normal TV program. (Reference only) www.eurovideo-cctv.com...
