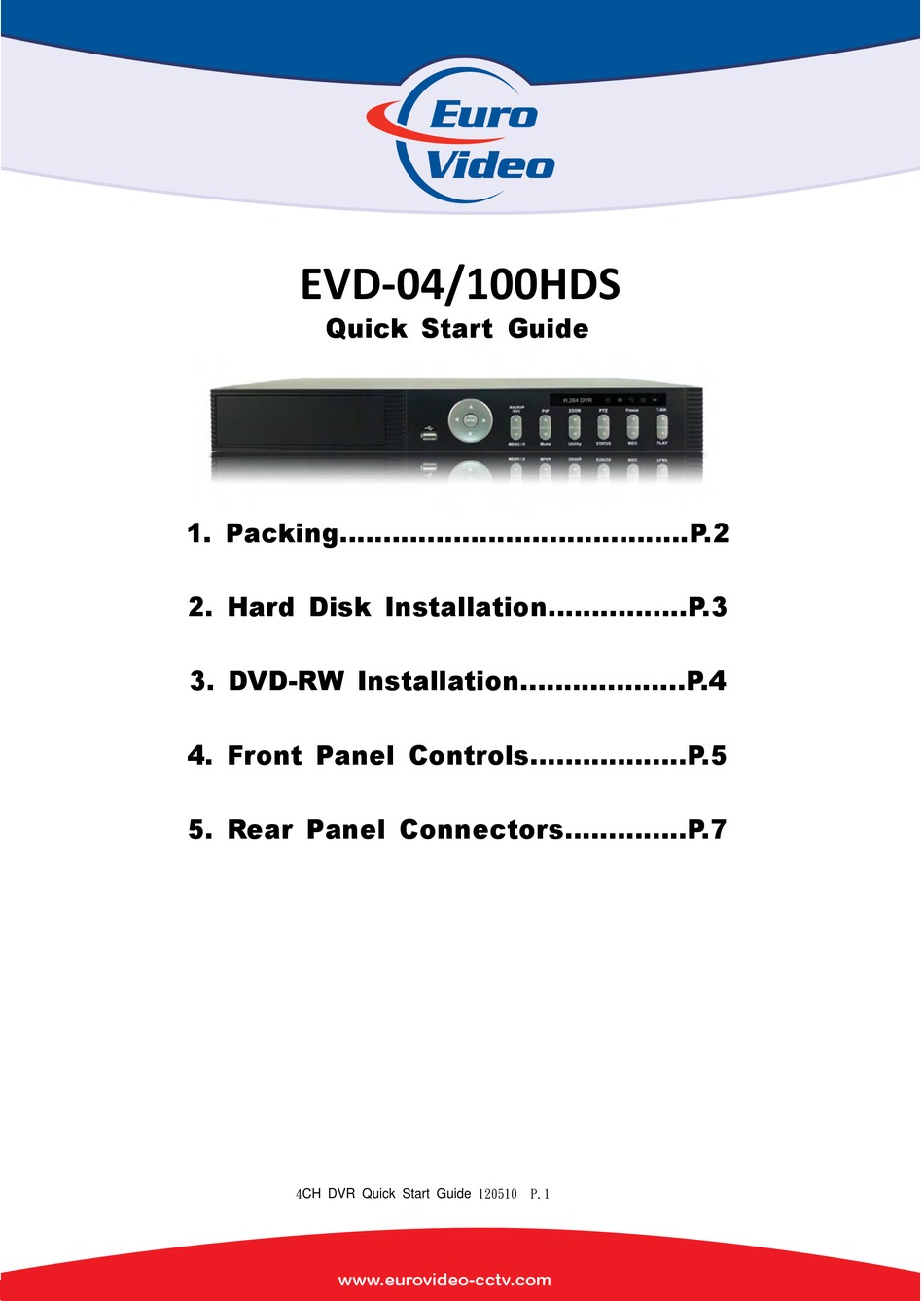

EVD-04/100HDS
4CH DVR

Quick Start Guide

1. Packing........................................P.2
2. Hard Disk Installation................P.3
3. DVD-RW Installation...................P.4
4. Front Panel Controls..................P.5
5. Rear Panel Connectors..............P.7
4CH DVR Quick Start Guide 120510 P.1
www.eurovideo-cctv.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVD-04/100HDS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Euro Video EVD-04/100HDS

Summary of Contents for Euro Video EVD-04/100HDS

  • Page 1: Quick Start Guide

    EVD-04/100HDS 4CH DVR Quick Start Guide 1. Packing........P.2 2. Hard Disk Installation....P.3 3. DVD-RW Installation....P.4 4. Front Panel Controls....P.5 5. Rear Panel Connectors....P.7 4CH DVR Quick Start Guide 120510 P.1 www.eurovideo-cctv.com...

  • Page 2: Quick Start

    1. DVR 2. Quick Start 3. IR Remote Control Pressed "DVR1" Button before use 4. Battery 5. CD 6. Hard Disk Mount 7. Screws 8. IDE to SATA Power Cord 9. Power Cord 10. SATA Cord Note: Standard shipping products do not include HDD 4CH DVR Quick Start Guide 120510 P.2...
  • Page 3 Step 1) Fix the HDD to rack mount with the screws as indicated. Step 2) Place the HDD on the HDD plate and screw it as indicated. Step 3) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual 4-9 System Tools for reference.

  • Page 4: Dvd-Rw Installation

    DVD-RW Installation Standard shipping products do not include HDD and DVD-RW) Step 1: Remove the front cover from DVR. Step 2: Put the DVD-RW into the unit as indicated. Step 3: Put DVR bottom up, screw to fix the DVD-RW as indicated. Step 4: Connect the power and the flat cables as indicated.
  • Page 5 Control Keys Description Optional DVD-RW backup device. DVD Writer Port for USB external devices (USB flash drive devices use, the mouse USB 2.0 Port behind the back of the USB ports installed).. In SETUP mode, press to enter values. ENTER In LIVE mode, press to display the BACKUP menu.
  • Page 6 16. STATUS Show DVR Status. Start or stop recording. Play back in normal speed. 18. PLAY 4CH DVR Quick Start Guide 120510 P.6...

  • Page 7: Video Input

    ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 1. VIDEO INPUT Video input port for cameras, 4 in total 2. VIDEO OUT Video output port for main monitor & the second monitor (SPOT) 3. AUDIO OUT RCA output port for audio signal, 2 in total 4.
