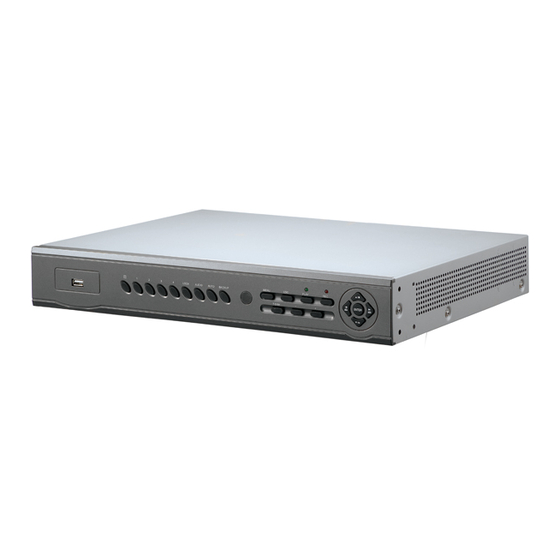

- Page 1 User Manual Thank you for purchasing our product. Please read this User’s Manual before using the product. Change without Notice 4 Channel Digital Video Recorder User’s Manual EVD-04/050A1MJN www.eurovideo-cctv.com...
-
Page 2: Safety Precautions
ON-OFF switch is the ON position. The power cord is the main power disconnect for all unites. There are no serviceable parts for this unit, call for your agent for details. Warranty and Service EVD-04/050A1MJN www.eurovideo-cctv.com... -
Page 3: About This Document
3. Put the DVR unit at well-ventilated place and do not put heat-generating objects on the unit. When it is installed inside 19 inch mounting rack together with other devices, please check built-in ventilation fan of the rack is properly running. EVD-04/050A1MJN www.eurovideo-cctv.com... - Page 4 - Consult the dealer or an experienced radio/TV technician for help. * You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. EVD-04/050A1MJN www.eurovideo-cctv.com...
-
Page 5: Front Panel
: Press this button to start recording image 21. - BUTTON : Reduce - values change 22. USB 2.0 : Pan Driver slot *User needs to plug in USB again if ActiveX loaded; image backup or version updated. EVD-04/050A1MJN www.eurovideo-cctv.com... -
Page 6: Rear Panel
Power code in 12V/5A, power switcher (ON / OFF) Camera 1 ~ 4 input BNC type Monitor out VGA out (optional) Audio channel input x 1 and output x 1 Alarm / Relay / RS 485 connector RJ-45 (Network connector) PS 2 type mouse connector EVD-04/050A1MJN www.eurovideo-cctv.com... - Page 7 DVR Initialing or detect a new hard disk **Notice** Please set HDD to Master if only one installed. Live screen Recording icon Overwrite Motion Alarm Event (Motion / Alarm) Video loss Keypad lock * 111111 is the default password EVD-04/050A1MJN www.eurovideo-cctv.com...
-
Page 8: Mouse Control
: Press Enter button to confirm set or value change DIRECTION BUTTON : MENU item select + BUTTON : Increase + values change - BUTTON : Reduce - values change BACKUP : To backup mode ) MOVE (ENT) SELECT (MENU) EXIT EVD-04/050A1MJN www.eurovideo-cctv.com... - Page 9 : Press this button to playback time search PLAY : Press this button to playback REC BUTTON : Press this button to start recording image + BUTTON : Increase + values change - BUTTON : Reduce - values change EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 10 DVR unit. Main MENU – Camera Set – Title Camera title setup function allows 5 characters for each channel. Select Shift to next page and then Enter to confirm camera title. EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 11 Record Set – Event Rec Duration: 5 / 10 / 15 / 20 / 25 / 30 Record Set – Auto Record: After 1 ~ 8 minutes, auto start to record if no operation. Record Set - Data Retention Set: 1 ~ 15 days Record Set – Schedule Record EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 12 2. In 24 hours, user can adjust each channel frame rate of different record mode. Such as schedule, motion detection, and alarm record more. 3. Press button to change different of record modes. Schedule record mode Motion record mode Alarm record mode Schedule, motion, and alarm record mode EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 13 Hard disk compatible table Seagate Hitachi WD(AAJB) Status 80 ~ 750 GB OK 80 ~ 750 GB OK 80 ~ 750 GB OK SATA Hitachi WD(AAJB) Seagate 80 ~ 750 GB OK 80 ~ 750 GB OK Fail Status EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 14 Alarm Signal type depends on Alarm Sensor polarity define on NO (N/Open) or NC (N/Close) mode. NO + COM: Normally, motion relay is NO + COM connector. Relay action: Relay: NO (Normal open) Alarm trigger Relay: NC (Normal Close) EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 15 Main Menu – Motion Detection – Motion area selection Direction button Left or Right + ENTER to cancel detection area. Select start (right-up corner) point and end (left-below corner) point of detect area. Start EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 16 Main Menu – Screen – Border: Quad border On / Off display Main Menu – Screen – Video Adjustment: Video screen position movement Main Menu – Screen – VGA Frequency and VGA After adjusted, press ENTER to see if it has change the dialogue resolution, press ENTER to EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 17 - Please format hard disk before starting recording after all the HDD installation Main Menu – System Set – Hard Disk Main Menu – System Set – Format HDD Main Menu – System Set – Hard Disk Setup – Format HDD – Password EVD-04/050A1MJN www.eurovideo-cctv.com...
-
Page 18: Menu Protection
Main Menu – System Set – Security Protection - Password Change Menu Protection: On / Off. User needs to login password before enter to menu. Auto Key Lock: After 1 ~ 60 seconds system automatically key lock which means before operate DVR user EVD-04/050A1MJN www.eurovideo-cctv.com... - Page 19 And decrease - button is opposite. If the DVR is under a network system, suggest enable NTP server to get a network request automatically. Main Menu – System Set – Dwell Time Setup (Channel auto sequence) Main Menu – System Set – Network Settings Network Settings – Local IP EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 20 Network Settings – Local IP – DHCP Select static IP address / Gateway / Net Mask Auto IP detected under IP sharing or router Main Menu – System Set – Network – PPPOE Main Menu – System Set – Network – PPPOE ID EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 21 IP would not correctly appear on screen if any firewall or router authority management. User type the IP to Net viewer or IE browser to view image via network. Main Menu – System Set – Network – D/DNS set EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 22 Click Create Account to make a new ID name. Fill in all the personal information, password, email requested; please go to user’s email account to active your new account. Return to DynDNS website; click Account to long in page. cv1000 123456 EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 23 User Manual Type your applied Username and Password Logged In page Click “My Services” icon Click Add Host Services: EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 24 User Manual Click “Add Host Service” Add static DNS Host: Select Static DNS: add Static DNS Host Type a Hostname user decided. No useful df6020 Add Host EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 25 Insert DynDNS password On IE browser blank bar, type df6020.dyndns.org; and then user can get on line. DNS address is required. (Please ask local ISP). DNS only works under DDNS mode. Network stream speed depends on the locality bandwidth. EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 26 Press AUTO to start auto presets, AUTO again to cancel. The AUTO command is 76 + Preset. The command would be different if connect to others PTZ dome. It is normal if no any action after press AUTO. EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 27 User Manual Main Menu – System Set – F/W Upgrade Stop all hard disk working before update, select F/W upgrade and then press ENTER to search firmware. Press PLAY to start version update. DVR auto reboot after version update. EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 28 Main Menu – System Set – Load Active-X Control Stop all hard disk working before load Active-X control 1. Before DVR IE connection, please download the ActiveX to DVR hard disk from CD-ROM, and then you can view DVR image via internet any PC. EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 29 Main Menu – Search – Event List Main Menu – Search – Time Search Press ENTER to select data and time. Direction left and right button to move value item. ENTER or + / - button to change value. EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 30 ENTER to start playback. Playing Forward speed: x 2 / x 3 / x 4 (Direction right button) Reverse speed: x 8 / x 16 / x 32 (Direction left button) Press STOP to search list, press ESC to live mode. EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 31 Mode 1: On live mode, press backup button to file backup page. Total hard disk data time range Select start and end time of backup After select backup time, apply to count data size. After size appears, press backup button to USB page. DVR is reading pan driver EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 32 Mode 3: On mode 2, user can press T-SRH button to the page like mode 1, and then to mode 3. Here, user only can adjust End date and time, after the back way is same as mode 1. EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 33 Mode 4: On event list, choose an event record data, and then press backup button. Pages go to USB page, after data size appears, press backup button to the page which is same as mode 1 USB compatible(Max. 4G) ADATA / Transcend / San Disk / Kingston EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 34 User Manual Main Menu – Language – English or Chinese Main Menu – Exit User needs to save changes if any function value has changed. And then exit menu. EVD-04/050A1MJN www.eurovideo-cctv.com...
-
Page 35: Viewer Function
6. DVR direction button: Up (Item select, Play Stop) / Down (Item select, Play Pause) Left (Item select, Play Reverse) / Right (Item select, Play Forward) SEL (ENTER): Item confirm/select, values change) 7. DVR menu pop-up 8. Audio volume (PC site) EVD-04/050A1MJN www.eurovideo-cctv.com... - Page 36 Always on Top: Player or viewer always on top even other data folders open Auto Reconnection: Reconnection if non artificial network disconnect. Path for local recording: Please select a path of your PC. About Viewer Viewer version Exit Close viewer EVD-04/050A1MJN www.eurovideo-cctv.com...
-
Page 37: Player Button
User Manual File Player: Click browser to open file which you saved Player button Open \ Fast Backward \ Play Reverse \ Previous Frame \ Pause \ Next Frame \ Play Fast Forward \ Still Capture EVD-04/050A1MJN www.eurovideo-cctv.com... - Page 38 Play back mode and speed select. Same as Player button Audio Audio volume adjust (PC site) Full screen Player screen to full size Maximize Player to full of screen Aspect Ratio Player resolution adjust Options See Next page EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 39 Show time: Show the PC time of when user start recording backup file On Screen display date/time (Show time) format: Please select the date format you want. %Y/%m/%d %H:%M:%S: 2007/06/15 15:32:29 %y/%m/%d %H:%M:%S: 07/06/15 15:32:29 %Y/%m/%d %p %I:%M:%S: 2007/06/15 PM 03:32:29 EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 40 VVF file export to AVI Click audio on if the image includes audio. Browse the file source Browse a path for file output File preview Select a compression codec Percentage of the export AVI progress Users please wait until file export completed. EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 41 Channel: Select PTZ channel Preset: Preset setup Select preset 1 ~ 4, and then click SET to save. Click CALL to run preset. Click AUTO to start all presets. Click STOP to terminate. CLEAR, delete preset 1 ~ 4 EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 42 Steps: CD disk ActiveX USB pan drive DVR (with hard disk) USB Menu - System Set – Load Active-X Control ENTER button 2. Also install ActiveX to your personal computer. Net viewer is packaged with ActiveX.exe. EVD-04/050A1MJN www.eurovideo-cctv.com...
-
Page 43: Specification
RCA x 1 Audio Output RCA x 1 HDD Record Mode Full stop / overwrite Remote Backup Through client application PTZ Control PELCO-D, PELCO-P, MERIT LI-LIN Key Lock Dwell Time Programmable with adjustable dwell time. 0 ~ 999 seconds EVD-04/050A1MJN www.eurovideo-cctv.com... - Page 44 Client Application Display / playback / PTZ / DVR control Power Supply DC 12V / 5A Weight N.W./G.W. 3.06kg/3.68kg Dimension 426(W) x 328.5(D) x 65(H) mm Operating Temperature 41 ºF~104 ºF (5 ºC~+40 ºC) Operating Humidity Less than 90% EVD-04/050A1MJN www.eurovideo-cctv.com...
-
Page 45: Sata Installation
2. SATA interface port Accessories: 1. SATA type Hard disk 2. SATA converter board 1. SATA converter board 2. SATA type Hard disk Plug in both of them and tight it up EVD-04/050A1MJN www.eurovideo-cctv.com... - Page 46 After all cables connected, put hard disk back to screws position base. Make all screws fixed Move back the DVR front case and done SATA type Hard disk compatible Hitachi series 80 ~ 750 GB OK WD(AAJB) series 80 ~ 750 GB OK EVD-04/050A1MJN www.eurovideo-cctv.com...
- Page 47 User Manual EVD-04/050A1MJN www.eurovideo-cctv.com...
