Euro Video EVD-04/100A1RN User Manual

4, 8, 16 channel digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

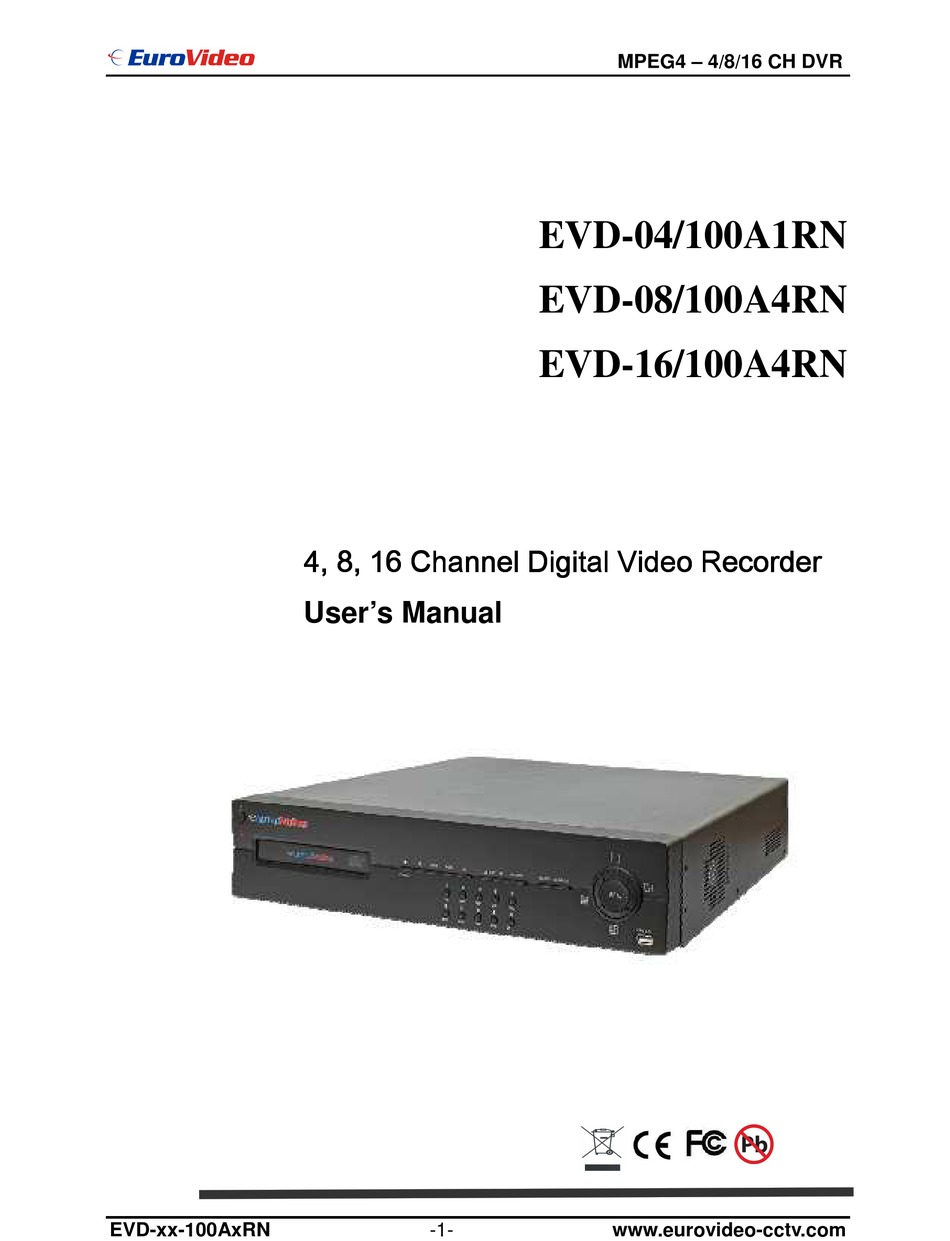

EVD-xx-100AxRN
4 4 4 4 , 8, 16
, 8, 16 Channel Digital Video Recorder
, 8, 16
, 8, 16
Channel Digital Video Recorder
Channel Digital Video Recorder
Channel Digital Video Recorder
User's Manual
-1-
MPEG4 – 4/8/16 CH DVR
EVD-04/100A1RN
EVD-08/100A4RN
EVD-16/100A4RN
www.eurovideo-cctv.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVD-04/100A1RN and is the answer not in the manual?

Questions and answers

Related Manuals for Euro Video EVD-04/100A1RN

Summary of Contents for Euro Video EVD-04/100A1RN

  • Page 1 MPEG4 – 4/8/16 CH DVR EVD-04/100A1RN EVD-08/100A4RN EVD-16/100A4RN 4 4 4 4 , 8, 16 , 8, 16 , 8, 16 , 8, 16 Channel Digital Video Recorder Channel Digital Video Recorder Channel Digital Video Recorder Channel Digital Video Recorder User’s Manual...
  • Page 2 MPEG4 – 4/8/16 CH DVR WARNING: To prevent a risk of fire of electric shock, do not expose this product to rain or moisture. • This installation should be made by a qualified service person and should conform to all local codes.

  • Page 3: Table Of Contents

    MPEG4 – 4/8/16 CH DVR Contents FOR THE SAFETY OF CUSTOMERS………………..………………………….…………………………4 DESCRIPTION OF PARTS AND FUNCTION…………...…………………………………………………..7 COMPOSITION OF UNIT………………………………..…………………………………………………7 FEATURES …………………………………………………...……………………………….………………..8 DESCRIPTION OF PARTS AND FUNCTION ……………...………….…………..……..……………….. 9 Front Panel……………………………………………………….……………………………..…………..9 Rear Panel………………………………………………………….……………………………………… …11 Connection diagram………………………………………………………..……………………………….13 OSD Description..............................15 MENU………………………………………………………………...………….…………………………..16 MENU TREE…………………………………………………………..………………………………………16 MAIN MENU…………………………………………………………..……………….………………………..18 Display Set……………………………………………………..……………….……………………..18 Recording Set ….……..………..……………………………………..………………………………………..20...

  • Page 4: For The Safety Of Customers

    MPEG4 – 4/8/16 CH DVR 1. FOR THE SAFETY OF CUSTOMERS Caution before use Please read this manual for proper use. The caution described in this manual contains very important information for the safe use, so, please follow the instruction. Please keep it whether you could reach after read.
  • Page 5 MPEG4 – 4/8/16 CH DVR Caution for proper usage During use In following cases, please turn off the power and remove the plug then, please contact technical support. If you use it continually, it could be a reason for a fire or electric shock. If smoke comes out of the device or when you smell something burning.
  • Page 6 MPEG4 – 4/8/16 CH DVR Use the designated HDD Please use the designated SATA HDD. Otherwise, recording may be operated improperly. Maker HDD Capacity Western Digital 80GB, 160GB, 250GB, 320GB, 640GB, 1TB (8,16 channel only) Seagate * * * * Manufacturer guarantees the combination of some HDD capacity only. i.e.) 320GB X 2pcs : Okay.

  • Page 7: Description Of Parts And Function

    MPEG4 – 4/8/16 CH DVR 2-1 COMPOSITION OF UNIT Standard Accessories Digital Video Recorder System Please read this manual before using Power Cable Remote Controller Battery User Manual When you have received a product “without HDD” , the accessories 1) stand for HDD installing 2) fixing screws will be supplied. ※...

  • Page 8: Features

    MPEG4 – 4/8/16 CH DVR 2-2 FEATURES ● Convenience - User-friendly GUI( Graphic Based User Interface) - Easy-to-use menu composition - Easy-to-use recorded data search (Time, Date, Motion, Alarm) ● Stability - Auto restart after power interruption DB structure offers data stabilization and best storage utilization ●...

  • Page 9: Description Of Parts And Function

    MPEG4 – 4/8/16 CH DVR 2-3 DESCRIPTION OF PARTS AND FUNCTION 2-3-1 Front Panel (1) LED - REC : Recording status (When recording is on, the red light is blinking) - PWR : System Power On/Off (When power is on, the green light is lit up) (2) USB 2.0 PORT - USB2.0 connector (3) POWER BUTTON...

  • Page 10: Rear Panel

    MPEG4 – 4/8/16 CH DVR (10) STOP / EJECT ( █ ) To stop playback and go back to live mode. To eject CD-RW (11) REC (● ● ● ● ) ) ) ) It starts & stop manual recording of relevant camera in a full screen live mode. (12) VOL (▲▼) - To make the volume up and down.
  • Page 11 MPEG4 – 4/8/16 CH DVR < 8/16 CH DVR> (1) Video Input (BNC) - 4,8,16 Camera input (1.0 v p-p, 75 ) (2) Video Out (BNC / S-VIDEO / VGA) - Composite Output through BNC / S-VIDEO / VGA (3) Line Audio Input - 1Audio (Economic 4ch / 4ch), 4 Audio Input through line (4) Audio Output - 1 Audio Output...
  • Page 12 MPEG4 – 4/8/16 CH DVR - 1 Serial Communication for Pan / Tilt Camera (9) Alarm/Sensor - Alarm / 4 Sensor input / 1 output port (10) AC Power - AC 110~240 V (Free Voltage) ATTENTION When the video format is changed, the system should be re-booted The video format should be selected before booting Default Passwords “00000000”...

  • Page 13: Connection Diagram

    MPEG4 – 4/8/16 CH DVR 2-3-3 System Connection Diagram < 4CH DVR > < 8/16 CH DVR > EVD-xx-100AxRN -13- www.eurovideo-cctv.com...

  • Page 14: Remote Controller

    MPEG4 – 4/8/16 CH DVR 2-3-4. Remote Controller 1.Power : Power ON/OFF 2. Rec : Start & Stop Recording 3.ⓞ~⑨:Key for figure and character 4. P/T/Z: Entering PTZ menu directly 5. OSD : Operating OSD ON/OFF 6. SEQ : Key for SEQ operation 7.

  • Page 15: Osd Description

    MPEG4 – 4/8/16 CH DVR 2-3-5. OSD Description Recording on HD :99%, This shows how much as a percentage is It shows ; “Power fail”, “USB stick in” occupied on the Hard Disk Drive “Network”. You would see other icons as 04-11-2008 15:26:12 : It shows the system date &...

  • Page 16: Menu

    MPEG4 – 4/8/16 CH DVR 3-1. Menu tree Monitor Adjustment (4CH Only) Camera Covert Main Menu Camera Name Display Set OSD On/Off Set Display Sequence Event Clear Audio Camera Control Repeat Recording Watermark Record Resolution Save and exit Global Parameter Recording Set Frame Rate Normal Recording...
  • Page 17 MPEG4 – 4/8/16 CH DVR Network Set DDNS SET DDNS DDNS User ID DDNS Password HOST Name DDNSStatus Check Save and Exit Use Dynamic IP IP address Gate Way Net Mask DNS Server IP SET XDSL User ID XDSL Password DVR Port Web Server Port Event Notification...

  • Page 18: Main Menu

    MPEG4 – 4/8/16 CH DVR 3-2 Main Menu NOTE Before using, be sure to setup the unit properly. Below menu shows when you press the menu button on the front while the system is on. Please use UP( ) or DOWN( ) on the front cover to move to next menu. To move to the submenu, use the “SELECT”...
  • Page 19 MPEG4 – 4/8/16 CH DVR Monitor Adjustment- (4CH Only) It controls the verticality and horizontality of live picture. With the background screen shown, use Left( ◀), Right(▶), Up(▲), Down(▼) button for setting the location. Camera Covert It allows hidden Camera, which mean, even live monitoring screen isn’t shown on the screen(just blue screen), the recording( if recording is “on”...

  • Page 20: Recording Set

    MPEG4 – 4/8/16 CH DVR Camera Control Recording Set In our system, all recorded data can be saved in the format of watermark or scrambling when user select “watermark :On” So, After downloading the saved data you want to check , user can confirm it whether is changed by someone using our PC software we provided.
  • Page 21 MPEG4 – 4/8/16 CH DVR Alarm recording It executes the recording when sensor is taken. Motion recording It executes the recording when motion is captured. Schedule recording It executes the recording as per the programmed time table. Recording priority It specify the priority among 4 kinds of recording methods. NOTE “Instant playback”...
  • Page 22 MPEG4 – 4/8/16 CH DVR Audio Recording(8/16CH) 8/16CH: 4 Audio are available. (Audio 1,2,3,4 are fixed to Video 1,2,3,4). Repeat recording It sets the recording mode when the HDD capacity is exceeding. It can be selected between “On” (overwrite) / “Off” (stop). Watermark Can select either Watermark On or OFF.
  • Page 23 MPEG4 – 4/8/16 CH DVR Normal Recording Frame Rate (fps) :4channel The above shows available frame rate each channel. In 360x240 mode, 0~30fps is available each channel (4 channel totally 120fps) and 720x 240 is 1~15fps each (4 channel totally 60fps, available max.
  • Page 24 MPEG4 – 4/8/16 CH DVR Recording Quality It selects among High, Mid, Low . Save and Exit All the set-up value will be stored and move to higher menu. Alarm Recording Either one is taken among 4 sensors, the recording will be activated as per set-up value. Frame Rate (fps) :4channel The above shows available frame rate each channel.

  • Page 25: Motion Recording

    MPEG4 – 4/8/16 CH DVR Frame Rate (fps) :8/16 channel The above shows available frame rate each channel. In 360x240 mode, 7.5 fps is available each channel (16/8 channel totally 120fps) and 720x 240 is 3 fps each (16/8 channel totally 60fps). Individual frame rate control is available as 4channel.
  • Page 26 MPEG4 – 4/8/16 CH DVR Frame Rate (fps) : 8/16 channel The above shows available frame rate each channel. In 360x240 mode, 7.5 fps is available each channel (16/8 channel totally 120fps) and 720x 240 is 3 fps each (16/8 channel totally 60fps). Individual frame rate control is available as 4channel.

  • Page 27: Schedule Recording

    MPEG4 – 4/8/16 CH DVR The following will be displayed when user selects the menu. The detection area is divided 8x6 cells. Default is all-cells activating mode. 1,2,3,4 cells(white color background) is disabled area. “SEL” button is required for selecting some area. Motion Sensitivity It consists of High, Mid, Low.
  • Page 28 MPEG4 – 4/8/16 CH DVR Frame Rate (fps) : 8/16 channel The above shows available frame rate each channel. In 360x240 mode, 7.5 fps is available each channel (16/8 channel totally 120fps) and 720x 240 is 3 fps each (16/8 channel totally 60fps). Individual frame rate control is available as 4channel.

  • Page 29: System Set

    MPEG4 – 4/8/16 CH DVR Recording Priority It sets the priority among 4 kinds of recording methods. If Normal is 1 priority, the recording is proceeded as per normal recording’ setup value . System Set Basic EVD-xx-100AxRN -29- www.eurovideo-cctv.com...
  • Page 30 MPEG4 – 4/8/16 CH DVR Language The default is English or Hungarian is eligible. Initialization All the menu value will be returned to the factory default. To initialize the system, “the recording off” will be required Date Format Can select among the formats, mm-dd-yyyy / dd-mm-yyyy, yyyy-mm-dd. If date format needs to be changed, “Recording off”...

  • Page 31: Disk Format

    MPEG4 – 4/8/16 CH DVR Disk Format Password is required for Disk to be formatted (default password is “00000000” , which is same when you access at “recording off”). Also, Both “recording off” & ‘Playback off ’ are required when you try to format the HDD. Client Account Client on the network will be registered at “Add New Account”...

  • Page 32: Auto Delete Mode

    MPEG4 – 4/8/16 CH DVR program”, “New program found” will be displayed on the screen. Then, please buttons “Select” Key. Processing percentage will be displayed. NOTE . 1. If the system doesn’t recognize “new program”, “ New program not found” will be displayed. 2.
  • Page 33 MPEG4 – 4/8/16 CH DVR Ptotocol is available Pelco D,P / Baud Rate can be selected among 2400, 4800, 9600BPS. PTZ Controller Model is available TB-CN 3R1 / Baud Rate can be selected among 2400, 4800, 9600BPS. EVD-xx-100AxRN -33- www.eurovideo-cctv.com...

  • Page 34: Network Set

    MPEG4 – 4/8/16 CH DVR Network Set To enter Network set menu, system ask password (Default is 00000000). In DDNS environment, need to be changed DVR & Web server port, please refer to Appendix 4 and 5. With DDNS Server, User can connect private fixed IP over Lan under router(Please register your ID &...

  • Page 35: Event Notification

    MPEG4 – 4/8/16 CH DVR Event Notification At E-Mail registration menu, user register the e-mail address to receive several “Event Notification “. To register the e-mail address, 1) input the address 2) push “Save and Exit” 3) Try “ Send the test mail”. NOTE : 1.

  • Page 36: Search

    MPEG4 – 4/8/16 CH DVR Notification Out When event happens, the each output is operated as per setup value. Events such as “ Video Loss/ Alarm/ Motion/Power Loss” will be sent to E-Mail address or Beep or Alarm according to setup value.

  • Page 37: Date / Time Search

    MPEG4 – 4/8/16 CH DVR Date / Time Search If you select date/time search, the following will be shown. the (▲),(▼) buttons for selecting the clauses . When you select the specific time/date, then select “Play”, which execute the playback. Calendar Search Following screen shows when “...
  • Page 38 MPEG4 – 4/8/16 CH DVR The hour which has data will be shown in white bar and the hour which you want to play is selected with “SEL” button, then the following sub-menu will be shown. The area which has data will be shown in white and using “SEL”, user can start the playback. EVD-xx-100AxRN -38- www.eurovideo-cctv.com...

  • Page 39: Backup

    MPEG4 – 4/8/16 CH DVR Back Up 1. INTERNAL Backup Device Internal CD-R or DVD-R is available. > Note : 1. Manufacturer guarantee 1) CD-R drive : LG GCE 8527B( CD-R Disk: Imation or Melody brand, 52x Max ) 2) DVD-R drive : LG GSA-H22N/H42N( DVD-R disk: Imation or Melody brand, 8x Max) 2.
  • Page 40 MPEG4 – 4/8/16 CH DVR Channel When you select exclusive, all channels can be downloaded at the same time. But, can be selected one channel in case of AVI file. Transfer Downloading the backup data to internal disk . Percentage during downloading will be shown. >...

  • Page 41: Client Program

    MPEG4 – 4/8/16 CH DVR From/ To You can set up the time which is required to be backed up to the memory stick . Channel You can select one channel among CH 1 ~ 16 in case of AVI file but , if you select exclusive, Even all channels can be downloaded at the same time.

  • Page 42: Client Program

    MPEG4 – 4/8/16 CH DVR 5-1. Network Connection Minimum PC specification (4, 8/16CH) CPU : 4CH- Pentium III 750MHz over, 8/16CH- Pentium 1.7GHz over. Graphic Memory : 4CH- 32M over, 8/16CH – 64M over. IP Insertion Connection will be done just writing DVR IP address on the Internet Explorer window. If domain is kept to reach DVR by DDNS server, it is allowed to write domain name directly.
  • Page 43 MPEG4 – 4/8/16 CH DVR Termination of Live monitoring Live monitoring will be terminated when user pushes “Live Off” button. Live monitoring will be re-started when user pushes “Live On” button.. Recording & Playback Step backward / Backward / Play / Pause / Recording / Stop / Step forward in left order.
  • Page 44 MPEG4 – 4/8/16 CH DVR NOTE : To off ‘recording’, push the red recording button again. Then, shadow bottom will disappears and system is asking password. To stop recording of system, please input password. And, check if the system is out of recording mode. 2) Local Recording To save the live video onto client PC HDD, press the recording button when the local icon is on green.
  • Page 45 MPEG4 – 4/8/16 CH DVR Select the number and push ‘start’ button. Then Local playback will be done as above. EVD-xx-100AxRN -45- www.eurovideo-cctv.com...
  • Page 46 MPEG4 – 4/8/16 CH DVR Remote playback It works when System button is in activated. When push the Play button(▶), the window is shown besides. After input “start” and “end” time, push “OK” button. Then, list will be shown as above. EVD-xx-100AxRN -46- www.eurovideo-cctv.com...
  • Page 47 MPEG4 – 4/8/16 CH DVR Select the number and push ‘start’ button. EVD-xx-100AxRN -47- www.eurovideo-cctv.com...
  • Page 48 MPEG4 – 4/8/16 CH DVR Then, remote playback will be shown as above. Setup Setup menu is composed of 1) Remote Setup 2) Local Setup 3) Firmware Upgrade menu. Remote setup Note: When the main system is entering “ menu OSD”, remote setup doesn’t work.
  • Page 49 MPEG4 – 4/8/16 CH DVR recording priority. Among ‘System Set’ menu, PTZ Camera & Schedule Backup menu are unavailable for 4channel DVR. If is designed for 8,16channel only. Others are the same as local system configuration. ‘Event Set’ menu has 1) E-Mail registration 2) E-Mail report 3) Notification out . EVD-xx-100AxRN -49- www.eurovideo-cctv.com...
  • Page 50 MPEG4 – 4/8/16 CH DVR The menu is same as local menu tree. Local setup The detail will be shown when you click the ‘Local Setup’ menu. 1) Draw Mode: User can select between YUV format using Direct X or RGB. 2)Date Format: Select the time/ date format .
  • Page 51 MPEG4 – 4/8/16 CH DVR Firmware Upgrade When user select ‘Firmware Upgrade’ menu, if higher version exits in C:\KWClient\Upgrade fold, ‘New Program Found!’ message will be shown besides. If higher version in C:\KWClient\Upgrade fold, ‘New Program Not Found’ message will be displayed.
  • Page 52 MPEG4 – 4/8/16 CH DVR When firmware Upgrade is done successfully, ‘Firmware Upgrade success!’ message will be displayed. The local system should be re-booted . EVD-xx-100AxRN -52- www.eurovideo-cctv.com...
  • Page 53 MPEG4 – 4/8/16 CH DVR Download, Image Save, Stop, Connect Download It is for transmitting the recorded data on HDD to client PC. When ‘download’ button is pushed, User select ‘Download’ and push ‘OK’ button User select ‘Start time’ and ‘End time’ to download data and push ‘OK’ button. EVD-xx-100AxRN -53- www.eurovideo-cctv.com...
  • Page 54 MPEG4 – 4/8/16 CH DVR Select the number among list for ‘Start Time’ . Select the number among list for ‘End Time’. EVD-xx-100AxRN -54- www.eurovideo-cctv.com...
  • Page 55 MPEG4 – 4/8/16 CH DVR Processing bar will be shown above and wait till downloading is finished. When downloading is finished, push ‘PC’ button and click play(▶) button. User select ‘Live Backup’ and click ‘OK’ button. User select ‘Start time’ and ‘End time’ to download data and push ‘OK’ button. EVD-xx-100AxRN -55- www.eurovideo-cctv.com...
  • Page 56 MPEG4 – 4/8/16 CH DVR The download list will be shown besides. Select the number which you want to play then click ‘Start’. Local Play (from downloaded files) will be shown like above. EVD-xx-100AxRN -56- www.eurovideo-cctv.com...
  • Page 57 MPEG4 – 4/8/16 CH DVR Image Save It stands for saving format. Either JPEG or BMP . The file will be stored C:\KWClient\Save . Stop It is for stopping Downloading. Connect Re-connecting when access is failed Pan/Tilt, Zoom/Focus, OSD 1) Pan / Tilt Using arrow key, controls the Pan/Tilt ( 4 channel doesn’t support P/T/Z control) 2) Zoom / Focus...
  • Page 58 MPEG4 – 4/8/16 CH DVR The relevant information like Log, Event, Info, Status will be shown as above. Event Clear The relevant OSD turns to green color when DVR has an event like Alarm, Motion, Video loss. Reset for event button (event clear) Timer It shows the client PC timer when monitoring is working.

  • Page 59: Q & A

    MPEG4 – 4/8/16 CH DVR Q & A Q : The message “ can’t display the page” is shown and failed to connect to DVR , though input the IP address or domain name on the internet explorer window. A : 1) DVR is out of work or 2) a problem on the network connection. Please check the DVR is working properly and , if it does, check the connection both DVR and PC .
  • Page 60 MPEG4 – 4/8/16 CH DVR Q : Client program(internet explorer) was disappeared when I have entered new several web site. A : Since some web site is possible to remove the existing explorer , please disable “ re-use the window in executing shortcut” under “ Tools-> Internet Option-> advance( advance is located under “Search”.

  • Page 61: Appendix 1

    MPEG4 – 4/8/16 CH DVR Appendix 1. 1. HDD INSTALLATION 1) Components The attached components are as follows, 3.5x6 round screw : 4pcs. 3x5 round screw : 4pcs. HDD power cable: 1pc. HDD SATA cable : 1pc. HDD rack : 1pc. ⑥...
  • Page 62 MPEG4 – 4/8/16 CH DVR 2) HDD Install Processing Insert the HDD(⑥) into the HDD rack(⑤). Fix the HDD(⑥) with the 3.5x6 round screw(①) to the HDD rack(⑤). Fix the HDD rack(⑤) with 3x5 round screw (②) to main body. Connect the HDD power cable(③) and the HDD SATA cable(④) to the HDD(⑥).

  • Page 63: Appendix 2

    MPEG4 – 4/8/16 CH DVR Appendix 2 SENSOR INSTALLATION 1. Components 1) External Sensor : 1 (You should prepare one set) 2) DVR System : 1 2. Inner Circuit for Sensor Input The inner circuit of Mpeg 4 DVR is as follows, 12V DC 5V DC 2.2k...
  • Page 64 MPEG4 – 4/8/16 CH DVR Power dissipation Collector-emitter voltage V CEO Emitter-collector voltage V ECO Output Collector current Collector power dissipation Total power dissipation P tot *2Isolation voltage V iso 5 000 V rms Operating temperature T opr -30 to + 100 °C Storage temperature T stg...

  • Page 65: Appendix 3

    MPEG4 – 4/8/16 CH DVR SENSOR 12V DC ?? V DC 2.2k 3.3k Or 10k PC817 SENSOR IN Outlet Point Appendix 3 INSTALLING GRYPES WEB CLIENT ON WINDOW XP/2000 & WINDOW VISTA EVD-xx-100AxRN -65- www.eurovideo-cctv.com...
  • Page 66 MPEG4 – 4/8/16 CH DVR SERVICE PACK 2. 1) Security Setup > Window XP / 2000 > Window Vista Tools-> Internet Options-> Security Tools-> Internet Options-> Security -> Select “Customer Level” -> Unselect square box -> Select “Customer Level” Select “ Allow script-initiated windows Without Size or position constraints”->...
  • Page 67 MPEG4 – 4/8/16 CH DVR Select “ Download unsigned Active X controls”-> Prompt Select “ Automatic Prompting for Active X controls”-> Disable EVD-xx-100AxRN -67- www.eurovideo-cctv.com...
  • Page 68 MPEG4 – 4/8/16 CH DVR 2) Connection Click here as described Select “ Temporary Allow Pop-ups” Click “ To help protect security, Internet Explorer stopped this site from installing an Active X control on your computer. Click here for options…” EVD-xx-100AxRN -68- www.eurovideo-cctv.com...
  • Page 69 MPEG4 – 4/8/16 CH DVR Select “Install Active X Control “ Select “Install” and then ‘Log-In’ box will be shown. EVD-xx-100AxRN -69- www.eurovideo-cctv.com...

  • Page 70: Appendix 4

    MPEG4 – 4/8/16 CH DVR Appendix 4 DYNAMIC IP ( Supporting DDNS Server) 1. visit www.ddns-dvr.com to get the DDNS user ID & PW as well as Host name. 2. Click to create / set account of “Dynamic DNS”. EVD-xx-100AxRN -70- www.eurovideo-cctv.com...
  • Page 71 MPEG4 – 4/8/16 CH DVR 3. Select “Create Account” menu. EVD-xx-100AxRN -71- www.eurovideo-cctv.com...
  • Page 72 MPEG4 – 4/8/16 CH DVR 4. Create Account. > Please set up all blank in order to create new account. ID & Password will be emailed you when the account is created well. EVD-xx-100AxRN -72- www.eurovideo-cctv.com...

  • Page 73: Appendix 5

    MPEG4 – 4/8/16 CH DVR Appendix 5 SETUP FOR DVR PORT/ WEB SERVER PORT USING IP SHARING ROUTER 1) To use IP sharing Router, it should be “NO” at “Use Dynamic IP”. - DVR Port : It is possible to be input any numbers from 2000 to 65535. - Web Server Port : It is possible to be input any numbers without overlapping with DVR Port (2000~65535).

  • Page 74: Appendix 6

    MPEG4 – 4/8/16 CH DVR to connect DVR-1 with CD installer, http://dvr-1.ddns-dvr.com:9000. Appendix 6 MAKING PARTITION ON EXTERNAL USB HDD To back up to USB HDD, the USB HDD should be formatted first on PC. We are supporting FAT32 file system of which maximum size is 30GB at one partition. Please refer to the following procedure to make a partition and format on PC.
  • Page 75 MPEG4 – 4/8/16 CH DVR 2. Select “Computer Management” 3. Select “Disk Management”. EVD-xx-100AxRN -75- www.eurovideo-cctv.com...
  • Page 76 MPEG4 – 4/8/16 CH DVR 4. Click right mouse button and select “New Partition”. 5. Follow “New Partition Wizard” procedure as below. EVD-xx-100AxRN -76- www.eurovideo-cctv.com...
  • Page 77 MPEG4 – 4/8/16 CH DVR 7. Maximum is 30GB at FAT32 file format. EVD-xx-100AxRN -77- www.eurovideo-cctv.com...
  • Page 78 MPEG4 – 4/8/16 CH DVR EVD-xx-100AxRN -78- www.eurovideo-cctv.com...
  • Page 79 MPEG4 – 4/8/16 CH DVR 10. At this stage, New Partition has been made. 11.Check New partition was created correctly.(Format will be executed automatically) EVD-xx-100AxRN -79- www.eurovideo-cctv.com...
  • Page 80 MPEG4 – 4/8/16 CH DVR 12. Check New Partition was created correctly EVD-xx-100AxRN -80- www.eurovideo-cctv.com...

  • Page 81: Appendix 7 (Specification)

    MPEG4 – 4/8/16 CH DVR Appendix 7 SPECIFICATION * Ex. : External Backup Device In. : Internal Backup Device EVD-xx-100AxRN -81- www.eurovideo-cctv.com...

  • Page 82: Product Warranty

    MPEG4 – 4/8/16 CH DVR *Design and product specifications subject to change without notice* PRODUCT WARRANTY Manufacturer will repair or replace without charge any merchandise proved defective in material or Workmanship for a period of one year after the date of shipment. But all goods requiring warranty repair shall be sent freight prepaid to us.
