Summary of Contents for Euro Video EVD-16/400A1HCB

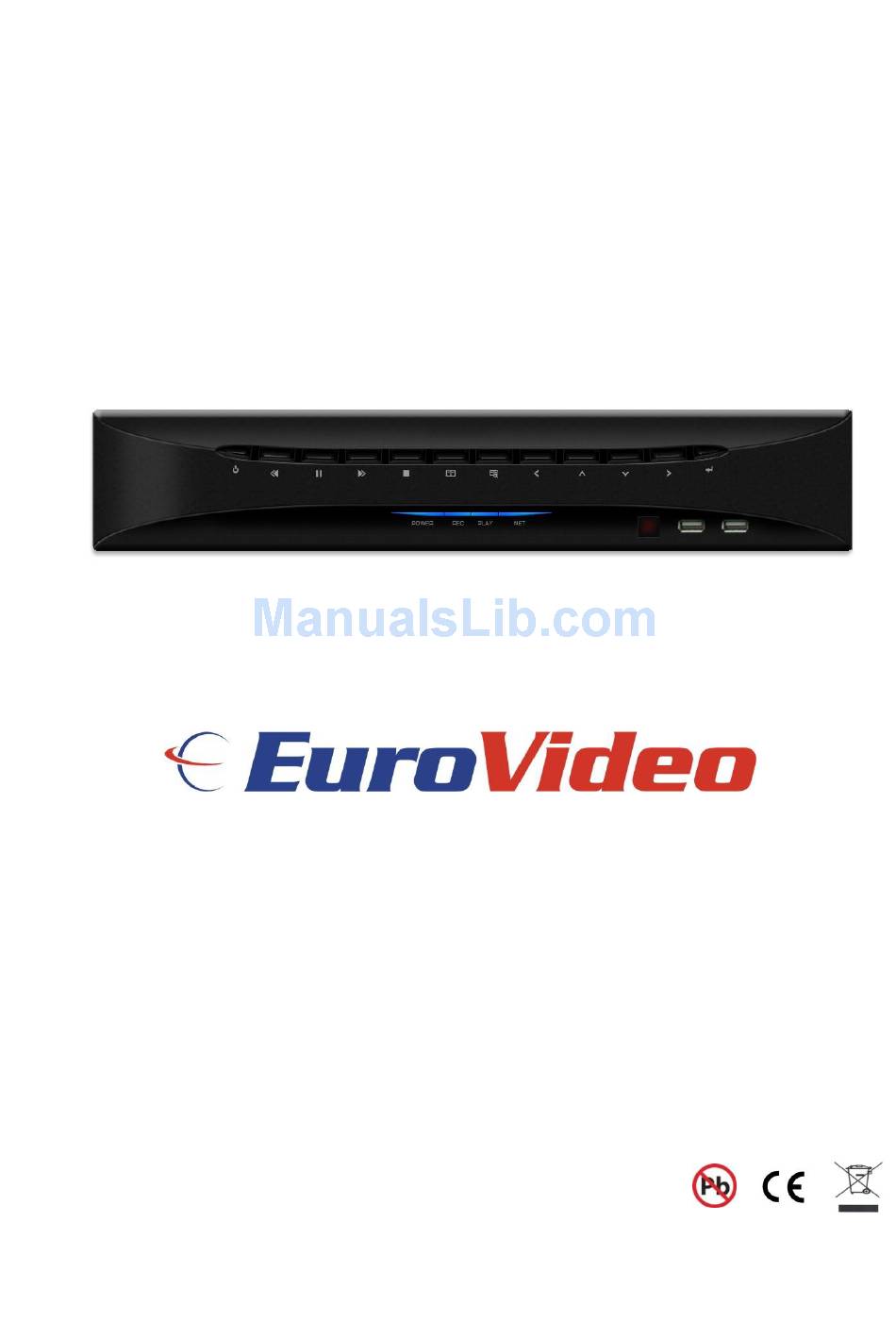

  • Page 1 EVD-16/400A1HCB – Installation and User manual EVD-16/400A1HCB Digital Video Multiplexer/Recorder...
  • Page 2 Installation and User manual CE Information The product must be installed according to the currently valid installation regulations for EMC to guarantee the designed use and to prevent EMC problems. The device supplied with this manual is according to the EC, EMC Directive, 89/336/EEC &...

  • Page 3: Table Of Contents

    Installation and User manual Contents SAFETY PRECAUTIONS ........................... 5 CONTENTS OF PACKING ..........................6 FEATURES................................7 FEATURES................................7 FRONT PANEL ..............................8 REAR PANEL CONNECTIONS ......................... 9 SYSTEM CONNECTION DIAGRAM ......................10 ALARM CONNECTIONS ..........................10 REMOTE CONTROL ............................12 OSD DESCRIPTION ............................
  • Page 4 Installation and User manual [ Date / Time Search ] ............................ 51 [ Event ] ................................. 51 [ Calendar Search ] ............................52 2. A DVD/CD USB ....................54 RCHIVING VIDENCE TO 3. L ................................56 CLIENT VIEWER SOFTWARE........................57 ..............................

  • Page 5: Safety Precautions

    Please read this manual before installing or using the DVR. EuroVideo EVD-16/400A1HCB Please keep this manual in a safe place, to allow for future reference For the safety and proper use, The DVR is marked with various symbols. Please read these to prevent injury of financial loss.

  • Page 6: Contents Of Packing

    Installation and User manual Contents Of Packing Battery User Manual Power Cable Remote Controller Mouse AC Adaptor Installation EVD-16/400A16HCB www.eurovideo-cctv.com...

  • Page 7: Features

    Installation and User manual Features ● Convenience - User-friendly GUI (Graphical User Interface) - Easy-to-use menu structure - Easy-to-use recorded data search (Time, Date, Motion, and Alarm) - Easy-to control via Front Panel, IR remote control and USB 2.0 mouse. ●...

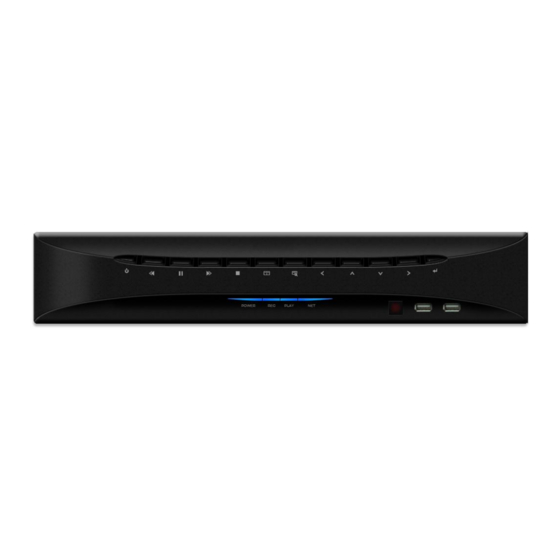

  • Page 8: Front Panel

    Installation and User manual Front Panel [EVD-16/400A1HCB] (1) POWER BUTTON System Power On/Off (2) REWIND ( Reverse play of recorded data When in play mode press again to enter fast rewind mode. (3) PAUSE ( ▌▌) To freeze picture on playback mode and live mode.

  • Page 9: Rear Panel Connections

    - NET: Network status (When network is connected, the light will flash) (11) USB 2.0 USB 2.0 connectors for mouse control & downloading to USB pens / drives (plus upgrading firmware) Rear Panel Connections EVD-16/400A1HCB 5 6 7 (1) RS232 Serial Communication (2) AUDIO OUTPUT...

  • Page 10: System Connection Diagram

    Installation and User manual (7) ALARM OUT Alarm output port (8) SENSOR IN 16 Sensor input ports (9) DC IN DC 12V 3.3 A (10) E-SATA PORT Port for e-sata HDD (11) Network Port (RJ-45) Connecting to the Quantum DVR through Internet or LAN (12) VGA VIDEO OUT VGA Video Output (13) AUDIO INPUT...
  • Page 11 Installation and User manual The Alarm connections are made via the push in connectors on the rear on the unit. There are 16 individual alarm inputs marked as Sensor In (1-16) and 2 Outputs marked as Alarm, plus 2 ground connections.

  • Page 12: Remote Control

    Installation and User manual Remote Control 1. Power: Power ON/OFF 2. REC: Start & Stop Recording 3. (1 to 9) Numbers and letters 4. P/T/Z: Entering PTZ menu directly 5. OSD: On Screen Display ON/OFF 6. SEQ: Sequence operation 7. LOG: Direct access Log list 8.

  • Page 13: Osd Description

    Installation and User manual OSD Description PTZ icon Record Standby: It is shown when recording is not activated. The Status Bar shows HDD capacity, Network This screen shows PTZ control of connection, Time, etc using by icons. camera 2. The on screen arrows will allow control of this camera.

  • Page 14: Menu Tree

    Installation and User manual Menu Tree Main Menu Camera Setting Display Camera Covert Camera Name Spot Setting OSD Setting Live Setting Recording Global Watermark Information HDD Overwrite Frame ording Duration Audio Event Pre-Alarm Duration Action Schedule Holiday Time Duration System Basic Language Disk...
  • Page 15 Installation and User manual Network DDNS DDNS User ID User Password Domain Dynamic IP IP SET Gate Way Net Mask DNS Server Live DSL ID DSL PW DVR Port Web Port Event E-Mail Registration Notification SMTP Mode E-Mail Out Beep Out Alarm Out Search Date/Time...

  • Page 16: Default Passwords

    Installation and User manual Default Passwords Front Panel A Password is required if you need to: Log on; enter the menus; down power; stop recording or changing an IP setting. Logging ON Before the system can be used it is necessary to Log On as a user, he rights of each user can be managed by an administrator level log on Press MENU on the front panel, or right click and select the MENU icon.

  • Page 17: Menu Navigation

    Installation and User manual Menu Navigation To enter the set-up menus, the user has to have the required access rights and be logged on press the Menu button or right click with mouse on screen and select the menu icon. The following screen will be displayed. Front Panel or IR remote control First select the user name by pressing select key and using the up and down key.
  • Page 18 Installation and User manual If Menu has been selected the following screen will be displayed. Select Sub menus by clicking on the relevant title. The method of altering the value of a segment within a menu page will vary slightly depending on the page: 1.

  • Page 19: Menu Settings

    Installation and User manual Menu Settings 1. Display [ Camera Setting ] Brightness, Saturation, Contrast, Hue and default The picture displayed from each camera can be individually adjusted to balance the multi screen view. Use UP() / DOWN() keys to select the cell to be altered, then press select to turn the box green, then use the numeric keys to change the values.

  • Page 20: [ Spot Setting ]

    Installation and User manual press the select key to exit. Alternatively use the mouse to select the title to alter, the on screen keyboard will appear, enter the title followed by the OK button. [ Spot Setting ] <Single Screen> <Quad Screen>...

  • Page 21: [ Osd Setting ]

    Installation and User manual [ OSD Setting ] Selecting how long the graphic information is displayed on the screen. Status Bar The display bar at the bottom of the screen can be set to be permanently on or to disappear after a period of time.

  • Page 22: [ Live Setting ]

    Installation and User manual [ Live Setting ] The live settings are used to set up a sequence of either full screen camera images or multi screen displays Use the Up and Down arrows to select either: Full Screen, Quad or Nine way split sequences.

  • Page 23: Recording

    Installation and User manual 2. Recording [ Global ] Watermark Generally this should be set to on, this allows the supplied software to verify the downloaded information to ensure it has not been tampered with or changed. HDD Overwrite Generally this should be set to on to ensure that the DVR does not stop recording when the hard drives are full.

  • Page 24: [ Frame ]

    Installation and User manual [ Frame ] This configures the FPS for each schedule – Day/ Night/ Weekend & Holiday/ Time/ Instant recording. In Schedule Setup, users can define the recording schedule: Night Weekend/Holiday - Time Instant Recording Configure the FPS for each schedule – Day / Night / Week (Holiday) / Time / Instant Resolution Each channel can be individually configured for record rate.

  • Page 25: [ Event ]

    Installation and User manual NTSC: 0~30fps, PAL: 0~25fps - Event Recording FPS NTSC: 0~30fps, PAL: 0~25fps - Audio recording Enable each audio channel for recording. - Post recording 10 ~ 99 sec 12 - Quality Best / Good / Standard [ Event ] When an event comes in the DVR records he image according to its settings (Frame menu) and triggers an alarm (Action).

  • Page 26: [ Action ]

    Installation and User manual The detection area is divided into a grid of 11x9 (PAL) / 11x8 (NTSC) cells. Default is all cells in active mode. Use the Left/ right/ up/ down btton to move cursor and the Select key to toggle between active and inactive.

  • Page 27: [ Schedule ]

    Installation and User manual Preset tours. [ Schedule ] Night Set night time. Ex. If 18:00 to 6:00 is defined as night time, 6:00 to 18:00 is defined as daytime. Weekend Define weekend. [ Holiday ] Define Holiday EVD-16/400A16HCB www.eurovideo-cctv.com...

  • Page 28: [ Time ]

    Installation and User manual Press ADD button. Define holiday pressing the buttons. Select day or date Month Ordinal Duration Press OK button when finished setting the holiday. [ Time ] The time recording allows the DVR to be set to only record at particular times of the day. EVD-16/400A16HCB www.eurovideo-cctv.com...

  • Page 29: [ Duration ]

    Installation and User manual Press ADD button. Set the recording time pressing the buttons. 4 – Start Time End Time Channel Press OK button when finished setting the recording time. Repeat the above steps to set up more recording times. Press APPLY to save settings.
  • Page 30 Installation and User manual 1 – Channel ▲ Channel 1~8 ▼ Channel 9~16 - Resolution Each channel can be individually configured for record rate. (CIF/2CIF/D1) - Recording On/Off Specify whether to record a video or not for each camera. Audio recording On/Off Specify whether to record an audio or not for each camera.

  • Page 31: System

    Installation and User manual 3. System [ Basic ] User can set Language, Auto Delete Mode, Date Format, Time/DST Set, Video Type, System ID. Also, Initialisation and system Information is available. Language The default is English. Italian, French, Hungarian, Slovak, German, Russian, Chinese, Dutch, Spanish, Portuguese, Japanese Danish and Polish are available.
  • Page 32 Installation and User manual Time/DST Setting The DVRs time can be set by clicking on the time and date displayed in this section, the on screen keyboard will appear. Set the time and date and click Ok, next select the country to enable the Day Light Saving mode.
  • Page 33 Installation and User manual Video Type Video Type can set in this menu without rebooting or initialisation. The default is PAL, NTSC can also be selected System ID The remote control can be used to control up to 16 DVRs, the ID number on each can be set to a unique address so that the remote will only control one at a time if they are in close proximity.

  • Page 34: [ Disk ]

    Installation and User manual [ Disk ] Format Formatting of the drive is used when new drives are installed or you need to wipe all information on the disk. Click on OFF to turn to ON, then click on Execute, click YES, to confirm Smart This function is used to keep a check on the health of the Hard disk.

  • Page 35: [ Account ]

    Installation and User manual [ Account ] The DVR can have the following different levels of operators, each with different users rights and passwords: Admin level – Operators logged in at this level has full rights Manager level – Operators logged in that this level as default have access to all except: Stopping Recording and Shutting down the DVR.
  • Page 36 Installation and User manual Automatic timed log out The system can be set to automatically log out a user after a certain amount of time if no key presses have been made. The operator level has to have been activated before this can be set.

  • Page 37: [ Program Update ]

    Installation and User manual [ Program Update ] Always turn off : Playback and Network access while upgrading the unit The latest firmware version can be upgraded through USB 2.0 Port using Memory Stick or CD/DVD Media. When a memory stick is connected to the USB port, this symbol will be shown in the status bar of the screen.

  • Page 38: [ Sensor ]

    Installation and User manual [ Sensor ] The 16 alarm inputs on the rear of the Quantum can be configured to be normally open (N.O), normally closed (N.C) or None. [ PTZ Setup ] The E4000 DVR can control PTZ cameras via coax or a RS485 connection on the rear of the DVR.
  • Page 39 Installation and User manual The E4000 DVR needs to be setup to accept the VKBD3im, VKBD4 or QSC1000 keyboard, as a default this will be set to the correct Protocol and Baud rate, the ID RS485 Address my need to be adjusted dependant on the number of PTZ cameras on the system. The Keyboard ID should not be the same as any of the domes on the system.
  • Page 40 Installation and User manual Telemetry connections and User Instructions Remote Keyboard Connections The connection of the keyboard to the E4000 DVR, is made via the push connectors marked as Kbd on the rear of the DVR, These is the 2 connector to the left hand side of the bank of push in connectors.
  • Page 41 Installation and User manual PTZ user instructions The telemetry function of the can be controlled via 3 different methods: EVD-16/400A1HCB 1. Remote keyboard 2. Remote control 3. Software viewer Remote Keyboard : See keyboard manual for control of PTZ cameras...
  • Page 42 Installation and User manual 2. To recall a Preset Press the search key followed by the number (1 -9). [ Run Tour 1 ] To run Tour 1, press the search key followed by the number 0 (Zero). The tour requires a keyboard to set it up in the domes menu.
  • Page 43 Installation and User manual 8. Using the Arrows enter the Domes password, 9. Once in the Menus use the arrows to navigate. 10. To Exit repeatedly press ESC 11. To remove the navigation arrows, right click. Client Software 1. While Client software is running select the dome required. 2.

  • Page 44: Network [ Ddns ]

    Installation and User manual 4. Network (If the DVR is connected to a network, this icon will be shown in the OSD display) This menu can only be accessed if the user has the necessary rights. (Default password is 00000000). With in the Network menu the DDNS (Dynamic Domain Named Server), IP addresses, NTP and Live can be set.

  • Page 45: [ Ip Set ]

    Installation and User manual [ IP SET ] When a fixed IP address is being used, the Use Dynamic IP should be set to NO The IP Address, Gateway and Subnet Mask need to be set, these will generally be given by the Network Manager.

  • Page 46: [ Live ]

    Installation and User manual The Time zone can also be chosen within the City selection, use the right arrow on the front panel to change the city settings. [ LIVE ] This allows a separate Live viewing resolution and Quality, regardless of System Recording and Quality, to be set for remote viewing, this helps optimise the network streaming.

  • Page 47: Event

    Installation and User manual 5. Event This section is used to inform the user as to an event occurring, this can be by the sounding of a buzzer or by sending an E-mail to a predefined address. [ E-Mail Registration ] Within this section up to 3 users can be set-up to receive an email on the occurrence of an event such as Video Loss / Alarm / Motion or Power Loss.

  • Page 48: [ Smtp Mode ]

    Installation and User manual [ SMTP Mode ] The SMTP (Simple Mail Transfer Protocol) function allows e-mails to be sent over a LAN The default is SMTP Mode “OFF”. In order to activate SMTP Mode, choose SMTP Mode either IP or Domain first. Then, put ID, Password, IP address, and port.

  • Page 49: [ Beep Out ]

    Installation and User manual As well as e-mail on event activations the E4000 can be set to send a report on the following occurrences: Video Loss; Alarm; Motion: Power Loss and Smart (Hard disk monitoring). [ Beep Out ] The buzzer can be set to sound on the following occurrences: Video Loss; Alarm input;...
  • Page 50 Installation and User manual The Alarm out relay can be set to activate on the following occurrences: Video Loss; Alarm input; Motion detection; Power Loss; Smart (Hard disk monitoring). The duration of the activation can be set. EVD-16/400A16HCB www.eurovideo-cctv.com...

  • Page 51: Search Menu

    Installation and User manual Search Menu 1. Searching Video Footage To access the search option, press the SEARCH button on the front panel or right click the mouse and select Search, (A password may have to be entered) after which the following screen will be displayed.

  • Page 52: [ Calendar Search ]

    Installation and User manual [ Calendar Search ] Following screen is displayed when “Calendar” search is selected The Calendar search gives a graphical representation of when video is recorded on the hard drive. The year and month can be selected. This month is shown as a calendar on the screen, any day which contains recorded video will be indicated by a highlighted number in white.
  • Page 53 Installation and User manual The hours which have recorded data are displayed as a coloured bar. Select the hour which you want to review, the following screen will be displayed. Minutes in the hour The minutes which have recorded data will be displayed as a coloured bar, click on the time required;...

  • Page 54: Archiving Evidence To Dvd/Cd Or Usb

    Installation and User manual 2. Archiving Evidence to DVD/CD or USB Once the required video has been found, it may be necessary to down load it for evidential purposes. This can be done either onto the internal CD/DVD-R writer or via the USB port on the front of the E4000.
  • Page 55 Installation and User manual Channel As long as the EXCLUSIVE file format is selected, the number of channels to be down loaded can be selected. Anything from a single channel to all 16 can be selected. Calculate Archive size Once the time and date and file format have been entered, it is necessary to confirm that the size of file created will not exceed the size of memory available on the disk or USB device.

  • Page 56: Log

    Installation and User manual 3. Log The log file contains information on the following: Power: Power on, Power off, Power fail Record: Rec fail, Rec start, Rec stop, Rec error, Rec full Operation: Play start, Play stop, HDD format, Menu set Client: R_Login, R_Logout, R_Logfail, R_Play, R_Transfer, R_Rec on, R_Rec off, R_Upgrade...

  • Page 57: Client Viewer Software

    Installation and User manual Client Viewer software Each E4000 comes with license free viewer software to view the E4000 across a network. To be able to do this the recommended minimum specification for the PC is as follows: Minimum PC specification >...

  • Page 58: Logging On

    Installation and User manual Logging on The following window will appear. To connect to the E4000, enter the units: IP address; DVR Port (2000 ids default), ID and Password. Then, click “OK”, to start the live monitoring. Description field is the name of area / Building / location of the DVR, this should be typed in he first time the unit is connected to, this will store it in the address book.

  • Page 59: Explanation Of Screen Buttons

    Installation and User manual Explanation of Screen Buttons EVD-16/400A16HCB www.eurovideo-cctv.com...

  • Page 60: Live Monitoring

    Installation and User manual Live Monitoring The software is best viewed with the PC monitor resolution, set to: 1024 x 768. Split Screen options (1, 4, 6, 7, 8, 9, 10, 13,16): Spilt Screens can be viewed during both live and playback. The splits screens available are: full screen,4,6,7, 8,9,10,13 and 16 way.
  • Page 61 Installation and User manual Full Screen on/ off When the full screen button is selected, a tool bar offering the various split screen options, and the Exit key will be displayed at the bottom of the screen. OSD on/off: The OSD button will toggle between the on screen titles etc being shown or hidden (Smart) Arrange On/Off:...

  • Page 62: Remote Search

    Installation and User manual Image Save / Load: SAVE: This icon is used to save a still image in either JPEG or BMP or TIF format. There is no change on the main screen when the “Save” icon is pressed. The still image is stored as default in C: H264CD: Saved folder, as a Jpeg image using the date and time as the file name.
  • Page 63 Installation and User manual Search (Date/Time/Event/Calendar), Archive (Remote Archive), Log (Remote Log) are available. SEARCH This Remote Search is able to play back video on the PC direct from the hard disk storage on the Quantum Plus. There are 3 options for as follows. 1) Date/Time 2) Event 3) Calendar...
  • Page 64 Installation and User manual Calendar Select the date required (as long as the date is highlighted in Blue there is recorded data on from that day). There are 3 options for selecting the required time once the date has been selected. 1) Drag the Red line along the colour bar (I.e.

  • Page 65: Archive

    Installation and User manual Select Channel: Channels can be included or excluded dependent on query. This is available within Search, Backup and Logs. ARCHIVE Remote Archive – Date/Time Enter the Start and End dates and times, by hovering over the selections, a drop down box will appear.
  • Page 66 Installation and User manual Remote Archive – Calendar Select the date required (Days with recorded video a data present are highlighted in Blue) There are 3 options for selecting the required time once the date has been selected. 1) Drag the Red line along the colour bar (I.e. Blue: Normal Recording) till the required time is reached.
  • Page 67 Installation and User manual The backup procedure is same as Date/Time & Event backup as previous page. * “Prev” to go back to previous stage. *The downloaded data is saved in the follows location. C:\H264CD\Download. Play back down loaded files Open the viewer software but do not connect to a unit, click the cancel button to remove the log on box.

  • Page 68: Remote Log

    Installation and User manual Remote Log The Log file can either be viewed or printed. The recorded Event can be played, by selecting it and clicking on Play. The log list can be viewed as a whole or filtered by the following types: Power: Power on, Power off, Record:...

  • Page 69: Remote Setup: (Menu Settings - Same As Dvr)

    Installation and User manual Remote Setup: (Menu settings - Same as DVR) 1. Display Camera Setting Within this setting the Hue, Saturation, Contrast and Brightness can be adjusted on a camera by camera basis. Camera Covert Cameras can be remotely set into Covert Mode, they are still being recorded but cannot be viewed local to the system, or by any remote user apart from the Administrator...
  • Page 70 Installation and User manual Camera Name Up to 32 Characters are available for each camera name. Spot Monitor settings 1) Set “Mode” (normal screen or Event). 2) Next select Duration for a sequence. EVD-16/400A16HCB www.eurovideo-cctv.com...
  • Page 71 Installation and User manual OSD On/Off Selecting how long the graphic information is displayed on the screen. EVD-16/400A16HCB www.eurovideo-cctv.com...

  • Page 72: Recording

    Installation and User manual 2. Recording – 1. Watermark security tagging Global recorded video. 2. HDD Overwrite – When the disk is full it will overwrite the oldest data. 3. The Picture quality can be set 4. Alarm mode can be set between Exclusive and Normal 5.
  • Page 73 Installation and User manual Event When an event comes in the DVR records he image according to its settings (Frame menu) and triggers an alarm(Action). Action Associate an alarm relay with a channel and enable PTZ camera to move to a preset position when an event occurs.
  • Page 74 Installation and User manual Schedule Set night time and define weekend. Holiday Define holiday. EVD-16/400A16HCB www.eurovideo-cctv.com...
  • Page 75 Installation and User manual Time The time recording allows the DVR to be set to only record at particular times of the day. Duration The Duration mode allows the user to set the number of days that they require to record for. EVD-16/400A16HCB www.eurovideo-cctv.com...

  • Page 76: System

    Installation and User manual 3. System Basic This section is used to select: Language Date format Video type System ID Live viewing resolution – over the network Live Quality – over the network DST Setup (Daylight Saving Time) The E4000 can be set to automatically reset its clock when the clocks change for Day Light Saving time.
  • Page 77 Installation and User manual Account Editing ID & password The E4000 allows for: 1 Administrator level log on 1 Manger level log on 25 User level log on Each of the 27 log-on accounts can be given individual passwords and user rights.
  • Page 78 Installation and User manual Sensor Each of the 16 alarm inputs can be configured to be either inactive (NONE), or Normally Open (N.O), or Normally Closed (N.C). PTZ Setup Each camera input can be allocated an RS485 ID between 1 and 255. Protocol Each camera output can have an individual protocol associated with it.

  • Page 79: Network

    Installation and User manual PTZ Controller Each Keyboard can be allocated an RS485 ID between 1 and 255. Each keyboard can have an RS485 protocol associated with it. 4. Network NTP setup allows the DVR to have its internal clock synchronised with an External clock. The default setting is “Off”...

  • Page 80: Event

    Installation and User manual 5. Event E-mail Registration The E4000 will send E-mails to up to 3 defined addresses under certain conditions such as Alarms or video loss. The screen is where you setup the receiving address and address that the DVR will send from.
  • Page 81 Installation and User manual Beep Out The internal buzzer can be set to sound on the following occurrences: Alarm activation Motion Detection Video Loss Power loss The duration of the buzzer can be set. Alarm Out The Alarm output relay can be set to activate on the following occurrences: Video Loss Alarm activation...

  • Page 82: Local Search (Viewing Downloaded Footage)

    Installation and User manual Local Search (viewing downloaded footage) This allows playback of video which has been downloaded top the PC. Search Searches can be done by Date/Time, Even and Calendar. Date/Time Hovering over the Date and Time bars will allow drop down boxes to select the required time and Date.
  • Page 83 Installation and User manual Calendar When the Calendar option is chosen this screen will appear, with recording available will be highlighted in Blue. Select the required day. Any downloaded event s will be shown, click on the event, the red line will move to that event.
  • Page 84 Installation and User manual Clicking on Log will display the log file from the unit. This file can be printed, by clicking Print. Info Click on Info. This will display the version of the software client being used. EVD-16/400A16HCB www.eurovideo-cctv.com...

  • Page 85: Local Setup

    Installation and User manual Local Setup This allows the setup of the viewing of the software on the PC. Global This screen allows the following: Draw mode to be set to YUV or RGB Date Format to be set to: DD/MM/YYY, MM/DD/YYYY or YYYY/MM/DD.
  • Page 86 Installation and User manual Audio Buffer Audio Buffer settings are there to adjust the audio over the network, this will compensate for different network speeds (LANs, WANs etc). This can only be adjusted if the LIVE video is switched off. Adjust each variable to achieve best quality video for Network bandwidth available, this is best done through trial and error.

  • Page 87: Pan, Tilt, Zoom, Focus (Remote Telemetry Control)

    Installation and User manual PAN, TILT, Zoom, Focus (Remote telemetry control) When PTZ button is being pressed, PTZ control icon will be pop-up on the live image. PAN/TILT/ZOOM/FOCUS When PAN/TILT button clicked Pan/Tilt control appears, this allows Left, Right, Up and Down Control of PTZ cameras When Zoom/Focus button clicked, the control changes to...

  • Page 88: Preset/Learn

    Installation and User manual PRESET/LEARN PRESET&LEARN icon The presets button can be activated by clicking on the centre of the control icon, the preset symbol will appear and the Preset selection box will appear. To save a preset, move the camera to the desired position then click “Set” followed by the desired number.

  • Page 89: Firmware Upgrade

    Installation and User manual Firmware Upgrade User can select Firmware Upgrade menu, if a new version of firmaware exits in the C:/H264CD/Upgrade folder ,then the message „New program found!‟ will be displayed if there is no file then „New program not found!‟ message will be displayed. To proceed with upgrading press the OK button and select each firmware files to upgrade it to the system, by ticking the boxes.

  • Page 90: Alarm Sensor Installation

    Installation and User manual Appendix 1 Alarm Sensor Installation 1. Components 1) External Sensor: 1 2) DVR System: 1 2. Inner Circuit for Sensor Input The inner circuit of Quantum DVR is as follows, 12V DC 5V DC 2.2k 2.2k Internal Check Point 0.1uF PC817...
  • Page 91 Installation and User manual ① PC817 : Photo Coupler ② The Specification of PC817 ③  Absolute Maximum Ratings Parameter Symbol Rating Unit Forward current *1Peak forward current I FM Input Reverse voltage Power dissipation Collector-emitter voltage V CEO Emitter-collector voltage V ECO Output Collector current...
  • Page 92 Installation and User manual 3. SENSOR Install Processing ① Please refer the below block diagram. SENSOR 12V DC ?? V DC 2.2k 3.3k Or 10k PC817 SENSOR IN Outlet Point EVD-16/400A16HCB www.eurovideo-cctv.com...

  • Page 93: Dynamic Ip (Supporting Ddns Server)

    Installation and User manual Appendix 2 Dynamic IP (Supporting DDNS Server) With DDNS Server, This allows a user to connect to the unit remotely without the need for a fixed IP address.(Please register your ID & Domain at www.ddns-dvr.com in which you can use their DDNS server as free of charge) 1.
  • Page 94 Installation and User manual 3. Select “Create Account” menu. 4. Create Account. Fill in all blanks in order to create new account. ID & Password will be emailed to you when the account is setup correctly. Once the DDns-Dvr account has been setup, it is necessary to add the details in the Network section of the E4000‟s menus.

  • Page 95: Setup For Dvr Port/ Web Server Port Using Ip Sharing Router (Port Forwarding)

    Installation and User manual Appendix 3 Setup For DVR Port/ Web Server Port Using IP Sharing Router (Port Forwarding) 1) To use IP sharing router, “Dynamic IP” should be set to “NO”. - DVR Port: This can be set to any number between 2000 to 65535. - Web Server Port: This can be set to any number between 2000~65535, as long as it is not the same as the DVR Port number.

  • Page 96: Specification

    Installation and User manual Appendix 4 Specification EVD-16/400A16HCB Model 16 Channels Camera Input(NTSC,PAL) Video Output 1 BNC, 1 VGA, 1 SPOT Audio Input 1 RCA Audio Output 1 RCA Sensor In / Alarm Out 8/16/1 Operating System Embeded Linux OS VGA Resolution SXGA / 1280 * 1024 Display...
