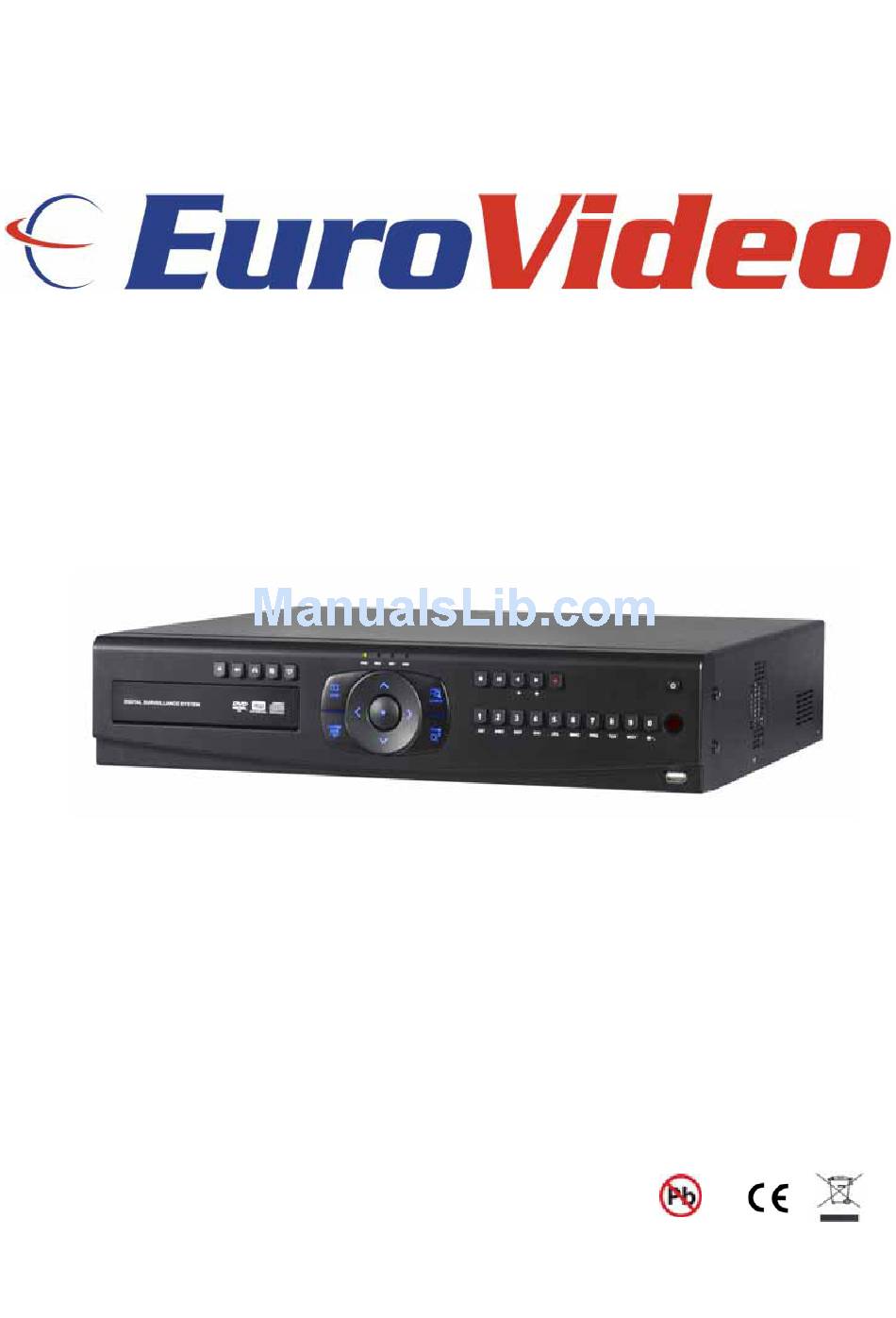

  • Page 1 EVD-16/400A16HC Installation Guide...
  • Page 2 Installation Guide H.264 Realtime Recorder Installation User Manual User and programming manual for H.264 Realtime Recorder range of DVR. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 3 Installation Guide H.264 Realtime Recorder Installation User Manual EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 4 Installation Guide H.264 Realtime Recorder Installation User Manual This page is intentionally left blank EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 5: Electrical Safety

    The device supplied with this manual is according to the EC, EMC Directive, 89/336/EEC & LVD 73/23/EEC Standard used for showing compliance with the essential requirements of the device: EN 55022 EN 61000-3-2 EN 61000-3-3 EN 50130-4 EN 55024 LVD: EN60950-1 ELECTRICAL SAFETY Explanation of electrical safety symbols EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 6: Table Of Contents

    Local Setup..............................91 PAN, TILT, Zoom, Focus ..........................93 Firmware Upgrade ............................95 Quit (Stop Client program) ..........................95 APPENDIX 1 ..............................96 APPENDIX 2 ..............................99 APPENDIX 3.............................. 103 APPENDIX 4.............................. 106 APPENDIX 5 .............................. 108 APPENDIX 6 ..............................115 EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 7: Safety Precautions

    For the safety and proper use, The DVR is marked with various symbols. Please read these to prevent injury of financial loss. INSTALLATION SITE Ensure installation position is level, secure and adequately ventilated. Avoid installing close to sources of humidity or water. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 8: Contents Of Packaging

    Installation Guide H.264 Realtime Recorder Installation User Manual CONTENTS OF PACKAGING Power Cable Battery User Manual Remote Controller Network CD EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 9: Features

    - Variable recording function (normal, alarm, motion, schedule, audio, duration) - Full channel real-time monitoring - Live monitoring, recording, playback, backup, remote access simultaneously - Multi channel playback - Variable events notification to e-mail, buzzer or PC Client system EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 10: Front Panel

    (3) POWER BUTTON - System Power On/Off (4) NUMERIC & CHARACTER - Input for numbers & letters within the setup menus and searches (5) MENU - Displays the menu on the screen (6) SEARCH - Entering search mode EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 11 It starts & stop manual recording, password protected. (12) VOLUME UP & DOWN ( - To increase or decrease the volume. (13) ARROW KEY - Moves the cursor while in menu mode (14) SELECT - Menu selection (15) PTZ Selection - PTZ Channel selection EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 12 - Selection of multi screen functions (17) AUDIO Selection - Switches between audio channels (18) PAN / TILT - To control P/T/Z, press this button to browse virtual key on screen. (19) ZOOM - ZOOM P/T/Z camera in and out EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 13: Rear Panel Connections

    - 16/8/4 Audio input through line (4) AUDIO OUTPUT - 1 Audio output (5) RS232 - 1 Serial Communication (6) Network Port (RJ-45) - Connecting to the DVR through Internet or LAN (7) USB 2.0 -USB 2.0 connector for mouse control. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 14: System Connection Diagram

    - 1 Serial Communication for Pan / Tilt Camera - 1 Serial Communication for P/T/Z Control Keyboard (10) AC POWER - AC 110~240 V ATTENTION When the video format is changed, the system should be re-booted SYSTEM CONNECTION DIAGRAM EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 15: Remote Control

    16. CH “+,-“ : Up, down channel(s) 17. ▶ (▶ ) : Play(or fast forward) : Reverse play 19 II: Pause 20. █: Stop playback 21. Cam: Changing PTZ icon 22. P/T: Pan &Tilt 23. Z/F: Zoom/ & Focus 24. DIS: Channel Division EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 16: Osd Description

    : 72GB is used out of 74.5GB control of this camera. -USB Mouse : It is shown USB mouse is connected. -Network connection : It is shown that admin or user is connected. -Date/Time *Others : -Backup -Mute -USB Stick: EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 17: Menu Tree

    Audio On/Off Audio Event Duration Priority Language Auto Delete Basic System Mode Disk Format Date Format Password Change Time/DST Set Client Account Video Type Program Update System ID Sensor User Name PTZ Setup New Password PTZ Controller Confirm PW EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 18 DNS Server DSL ID DSL PW DVR Port Web Port Event E-Mail Registration SMTP Mode Video Loss Alarm E-Mail Out Motion Beep Out Power Loss Alarm Out SEARCH Date/Time SEARCH Event Calendar BACKUP Power Record Operation Client Event EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 19: Default Passwords

    Viewer Software When using the supplied Viewer software, the following password will be required. User ID is “admin” (not case sensitive). Password is “00000000” i.e. 8x Zero’s (Admin ID cannot be changed, as this is the full administrator ID) EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 20: Menu Navigation

    Using the mouse allows the operator to enter the Menus to set up the DVR or enter the Search functions to play back and archive recorded data.. Right Clicking will bring up the following screen: Left click the required icon from: Menu, Search, Record, Power down, Play Forward, Audio Eject, Channel Select and Multi Screen EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 21 In order to save any modified setting value or get out from the Sub Menu, please press “MENU” key on the front or click Right on the mouse. This action can be carried out within each Sub Menu. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 22: Menu Settings

    1. Use UP( ) / DOWN( ) to move each segment and LEFT(/RIGHT or NUMERIC buttons to change values. 2. Move the middle of cursor using mouse or LEFT/RIGHT button on front panel. To move next menu(i.e. Camera Covert), click LEFT( )/RIGHT( EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 23 Each title can have up to 32 characters, if there are too many characters to display in 1 line, it will be shown as _... For example, ‘FIRST MEETING ROOM’ -> ‘FIRST MEETIN…’ Spot Setting <Single Screen> <Quad Screen> EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 24 OSD Setting On Screen Display Setting: Selecting whether the time and date etc is shown on the screen or not. Event Clear This is used to erase the list, in the memory, of previous events such as alarm activations. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 25 Installation Guide H.264 Realtime Recorder Installation User Manual Live Setting Live Sequence can be set in this Menu and available for 1/4/9 Channels with duration 5sec~240sec. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 26: Recording

    Quality options are High, Middle or Low . Alarm/Event Mode is used for EVENT(Alarm, Audio, Motion) Recording. Default ‘Exclusive’ which is only recorded event channel. “Exclusive” setting, Only event channels will be recorded. These settings are applied to all channels. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 27 In 360x288 modes, 25 fps is available to each channel (total 400fps). In 720x288 mode 12.5 fps is available to each channel (Total 200fps). In 720x576 mode 6.25 fps is available to each channel (Total 100fps). Each channel can be individually configured for record rate and Audio on/off. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 28 Motion on any channel can trigger recording of that camera. Resolution, Images Per second, Audio, and Quality can all be configured individually per channel. As per Normal and Alarm Recording Modes. To setup the motion detection grid per channel select the “Sel” button. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 29: Motion Sensitivity

    Care must be taken in setting of the motion sensitivity. It is recommended that each level is testing to find out which one suits that particular camera site. The motion detection is not recommended for external cameras. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 30 It allows each hour within the week to be set to be either Active (Yellow) or Inactive (Pink&Blank) “SEL” button is used for selecting relevant time and day. Arrow Key will be used for movement. Or toggle between on and off with the mouse. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 31 Recording can be triggered when Audio detected. As with Normal and Alarm recording the Resolution, Images per second can be set per channel. Individual channels can be enabled or disabled and the sensitivity set to either Low, Middle or High. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 32 The user then sets the number of days of recording required, then the DVR will automatically calculate best record rate to achieve these settings NOTE: If recording is in Standby mode, the following icon is displayed. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 33 Priority. The Alarm settings would be configured as required and this would be set as priority. The DVR would then record between 8am and 8pm at the Scheduled rate, then once beyond 8pm would look to the second priority and only record Alarm Events. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 34: System

    User can set Language, Auto Delete Mode, Date Format, Time/DST Set, Video Type, System ID. Also, Initialisation and system Information is available. Language The default is English. Italian, French, Hungarian, Slovak, German, Russian, Chinese, Dutch, Spanish, Portuguese, Japanese and Polish are available. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 35 Auto Delete Mode can be set to automatically erase recorded information over a certain number of days. User can select from 00days to 99days. Date Format The default is dd-mm-yyyy. Other date formats available are: mm-dd-yyyy / / yyyy-mm- Time/DST Setting EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 36 Use the right arrow to select then the up and down arrow to change the ID number. To select a unit on the remote control press the ID button, followed by the number, followed by the ID button again. The LED will flash slowly. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 37: Disk Format

    Information The Information Screen shows the hard disk size, current firmware revisions, IP address MAC address Disk Format Formatting of the drive is used when new drives are installed or you need to wipe information on the disk. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 38: Account

    PLAYBACK/SEARCH, COVERT, MENU SETTING, PTZ, NETWORK. And 4 USERS are available for PTZ and NETWORK by clicking the Rights. ID and PASSWORD needs for Network viewing, so please make sure to check Activate On/Off, ID, Password and Rights. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 39: Program Update

    2GB, IMATION 2GB, SANDISK 1GB, SANDISK 512MB, MARUZEN 1GB 3. For system stability, please turn off 1) recording 2) playback 3) network connection during upgrading. 4. After updating program, reboot the DVR. The simplest way is press POWER button and enter the password. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 40: Sensor

    The DVR can control PTZ cameras via an RS485 connection from the rear of the DVR. The cameras can have individually selectable Protocols with a choice of Vista PD, Pelco P , Pelco D, Dongyang, EZdome and Eyeview. The Baud rate can also be selected. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 41: Ptz Controller

    Protocol and Baud rate, the ID RS485 Address may need to be adjusted dependant on the number of PTZ cameras on the system. The Keyboard ID should not be the same as any of the domes on the system. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 42: Camera Selection

    To move the dome left / right / up or down use the arrows keys Zoom and Focus control To select Zoom and Focus press the Zoom Key Zoom + = Zoom Focus Near = Focus Far = EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 43 Installation Guide H.264 Realtime Recorder Installation User Manual Preset positions 1. To store a preset position Move the camera to the required position then press the PAUSE + NUMBER(0- 9)+SELECT . 2. To recall a Preset Please press REWIND+NUMBER+SELECT EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 44: Network

    What this means is that the DVR does not need a Static IP address to be available for viewing remotely over the World Wide Web. Please refer to Appendixes 4 on how to set up the DDNS service. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 45 The default is NTP OFF. When turned on the Type of service can be selected, options Default (time.bora.net), Domain and IP. As shown in next diagram: The Time zone can also be chosen within the City selection. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 46 Installation Guide H.264 Realtime Recorder Installation User Manual EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 47: Event

    Video Loss / Alarm / Motion. An E-mail will only be sent if the DVR is sitting on a network with access to the Internet, e.g. through a router. The e-mail addresses are set via the alphanumeric buttons on the front panel, or from the on screen keyboard via the mouse. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 48 In order to activate SMTP Mode, choose SMTP Mode either IP or Domain first. Then, put ID, Password, IP address, and port. Finally press “SMTP Status Check” to see whether it works. Please see the screen shots that follow: EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 49 H.264 Realtime Recorder Installation User Manual E-mail Out As well as e-mail on event activations the DVR can be set to send a report of what happened daily / weekly or immediately. This sends a mail containing the log report. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 50 When an event (e.g. Video loss, Alarm, Motion or power loss) occurs the following actions can be triggered: E-mail – As described in previous section Beep – The buzzer can be sounded. Alarm out – The relay contact on the rear of the unit can be closed. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 51: Searching Video Footage

    ALARM – The search is for any alarm activation within the times defined. MOTION – The search is for any motion events within the times defined. AUDIO – The search is for any audio activations within the times defined. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 52 Move to the desired day by using the up / down / left / right buttons, Select the day by pressing SEL. The following screen will be displayed. Hours of the day EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 53 This is done by selecting a time and pressing the “ZOOM” button on the front panel. If a different time is required, select it and press “ZOOM “again. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 54: Archiving Evidence To Dvd/Cd Or Usb

    This allows selection between the internal CD /DVD-R writer and the FLASH option via USB port, when highlighted use the right arrow to toggle between the options. Device Format Format for CD/DVD-R is not needed. When using a USB pen, the format should be done first. Type EXCLUSIVE file type EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 55 When Transfer is highlighted press SEL, the downloading will start. Percentage done during downloading will be shown. * USB compatibility: the following have been tested Lexar JumpDrive 128/256MB SanDisk Mini Cruzer 128MB SanDisk Cruzer Micro 256MB, 512GB, 1GB KINGSTONE A-DATA IMATION MARUZEN 1GB DVD/RW Plextor PX-716UFL Lite-On CD/RW (LTR-52327SX) EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 56: Log

    - EVD-16/400A16HC.exe - DdvrRes.dll - H264_D4.dll - LogoD.bmp - VdoLoss.bmp 3. Double Click “EVD-16/400A16HC.exe” 4. Local search > Click Recorded Date -> Click ”playback” button The log file contains information on the following: Power: Power on, Power off, Power fail...
  • Page 57 Installation Guide H.264 Realtime Recorder Installation User Manual EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 58: Client Viewer Software - H.264 Real

    When you put DVR Network installation CD into your PC, it will auto run and lead you through an installation wizard. Follow the instructions. Once the software is loaded it will automatically run. Connection To connect to the Unit, open the Viewer Software and click the connection button, EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 59: Log In

    H.264 Realtime Recorder Installation User Manual LOG IN The following window will appear. To connect to the DVR, enter the units: IP address; DVR Port (2000 ids default), ID and Password. Then, click “OK”, to start the live monitoring. Explanation of Screen Buttons EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 60: Live Monitoring

    Split Screen options (1, 4, 6, 7, 8, 9, 10, 13,16): Spilt Screens can be viewed during both live and playback. The splits screens available are: full screen,4,6,7, 8,9,10,13 and 16 way. 1) Full Screen 2) 4 Way EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 61 The OSD button will toggle between the On screen titles etc being shown or hidden (SMART)ARRANGE ON/OFF: If Cameras are being displayed in segments that are not logical, the Smart button will rearrange and put camera input 1 into segment 1 etc. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 62 (Status-Live/Playback, IP address, CH No.). Playback (Step Backward, Backward, Playback, Pause, Recording, Stop, Step Forward) Audio (Mute, Volume, Select Audio, Microphone) Select Audio: Toggles through audio channels. Microphone: It is used for transmitting audio to the System through a microphone. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 63: Remote Search

    Alarm, Motion or Audio at top of screen. A list of the available events will appear. To play an Event select it and click Play. To stop playing back press Stop then press live EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 64 3) Hover over the time box, a drop down arrow will appear allowing the manual selection of Hours, mins and seconds. Next click the “Play” button for Remote Playback. Or, click “Prev” to go back to previous stage. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 65 Once selection is made, then “click” calculate, the file size will be displayed. Finally click “Archive”, the file will be transferred to C:\EVD-16/400A16HC\Download - Remote Archive – Event Select either: Alarm, Motion or Audio from the top of the screen. A list of events will appear.
  • Page 66 2) Click on the required time for playback on the blue bar then the red line will move to this point. 3) Hover over the time box, a drop down arrow will appear allowing the manual selection of Hours, minutes and seconds. Then click the “Next” button to set “End” Archive time, in the same manner. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 67 Installation Guide H.264 Realtime Recorder Installation User Manual The backup procedure is same as Date/Time & Event backup as previous page. * “Prev” to go back to previous stage. *The downloaded data is saved in the follows location. C:\EVD-16/400A16HC\Download EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 68: Remote Log

    “System Info” of the Remote Log - “Status Info” of the Remote Log This shows the status of both the The system info displays the Mac Hard disk and the recording modes address and software version of each channel. information. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 69: Remote Setup: Checking Settings Menu (Same As Dvr)

    – Camera Covert Cameras can be remotely set into Covert Mode, they are still being recorded but cannot be viewed local to the system, or by any remote user apart from the Administrator on line. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 70 - Spot Monitor settings 1) Set “Mode” (Split screen/ Alarm Motion or Event), by click the ON button for required state – It will turn red. 2) Next select Duration for a sequence using the white time bar, next click OK. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 71 Always on or be on for 5 or 10 seconds after a key press. The Event symbols such as Motion, Audio, Pan / Tilt can be displayed or turned off. 3. The camera name can be displayed or turned off. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 72: Recording

    6. Post Duration – Length of recording post event. 7. Quality – Quality. 8. Alarm/Event Mode – Normal Resolution Each 4 cameras can have its Resolution by group, Record rate and whether Audio is active set from this screen. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 73 Installation Guide H.264 Realtime Recorder Installation User Manual Rate Each cameras can individually have its Record Rate. Audio Each cameras individually active Audio On/Off. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 74 They are set to a default of all on (Yellow). They can all be turned off by clicking “Unselect all”. Then individually selecting the required boxes or clicking and dragging over an area. Once set click OK. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 75 The DVR can start recording when it detects an Audio event. The Schedule settings for Resolution, Rate and Audio are configured in the same manner Normal (Time lapse) see pages 70 and 71. The only difference is to setup the sensitivity of the audio. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 76 DVR will automatically adjust the rate at which it records to achieve this time period. -Resolution First select the resolution required for each camera. -Video Next select whether the camera is connected to the DVR. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 77 Installation Guide H.264 Realtime Recorder Installation User Manual -Audio Next select if Audio is being recorded on that channel. -Days Finally select the number of days the DVR should record for. choice being between 5,10,20,30,40,50,60,70 80 or 90 Days. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 78 2nd priority. The DVR would then record between 8am and 8pm at the Scheduled rate, then once beyond would look to the second priority and only record Alarm Events. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 79: System

    System Live viewing resolution Quality Client Account 5 separate Client accounts can be set- up with individual user names and passwords. This is useful for tracking in the log, who has accessed the DVR over the network. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 80 (NONE), or Normaly Open (N.O), Normally Closed (N.C). Auto Delete Mode In Auto Delete Mode the DVR can be set to delete recordings that certain numbers of days old. This allows comply with data protection laws in certain co EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 81 Installation Guide H.264 Realtime Recorder Installation User Manual PTZ Setup for Cameras Each camera input can be allocated an RS485 ID between 1 and 255. -Protocol Each camera output can have RS485 protocol associated with it, the choices are: EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 82 The Baud rate of each PTZ camera can be set the choices are: PTZ set up for Keyboard Each Keyboard can be allocated RS485 ID between 1 and 255. QSC-1000 addressing switches inside keyboard, refer to keyboard manual for setting address. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 83 H.264 Realtime Recorder Installation User Manual Protocol Each keyboard have RS485 protocol associated with it, the choices are: Choose QSC-1000 for keyboard controller. -Baud rate The Baud rate of each PTZ camera can be set the choices are: Choose 2400 for the QSC-1000 EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 84 Saving time. As default this is set to Off. USER Define Change “Off” to User Define, this will allow the exact date and time for the change to occur. Alternatively Select Region Select the required country. Then click “Ok”. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 85 Hover over city selection box, a drop down arrow will appear, click on the arrow. A list of time zones will be displayed. Select the time zone where the DVR is located. The Click OK. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 86: Event

    DVR will send from. The mails can be set to be sent immediately an event occurs, Daily or Weekly. Email Out The actions which cause an e-mail response can be defined within this screen. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 87 The duration of the buzzer can be set. Alarm Out The Alarm output relay can be set to activate on the following occurrences: Video Loss Alarm activation Motion Detection Power loss The duration of the relay closure can be set. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 88: Local Search

    Event Choose the Event search box then choose the type of Event you are searching for, options are: Alarms, Motion or Audio. Once the selection is made, a list will appear, choose the Event required and click Play. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 89 Blue. Select the required day. downloaded events will shown, click on the event, the red line will move to that event. Then click Play to review the recording. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 90 H.264 Realtime Recorder Installation User Manual Clicking on Log will display the log file from the unit. This file can be printed, by clicking Print. Info Clicking on Info, will display the version of the software client being used. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 91: Local Setup

    Save Format, for the saving of stills as either JPEG, Bit Map or TIF. Location for where stills are saved Opacity The opacity or “boldness” of the OSD can individually function. The lower number the more see through the box. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 92 ( LANs, WANs etc). This can only be adjusted if the LIVE video is switched off. Adjust each variable to achieve best quality video for Network bandwidth available, this is best done through trial and error. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 93: Pan, Tilt, Zoom, Focus

    Installation Guide H.264 Realtime Recorder Installation User Manual PAN, TILT, Zoom, Focus When PTZ button is being pressed, PTZ control icon will be pop-up on the live image. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 94 Preset selection box will appear. To save a preset, move the camera to the desired position then click “Set” followed by the desired number. To recall the preset, click “Call” followed by the desired number. EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 95: Firmware Upgrade

    User can select Firmware Upgrade menu, if a new version of firmaware exits in the C:/EVD-16/400A16HC/Upgrade folder ,then the message ‘New program found!’ will be displayed if there is no file then ‘New program not found!’ message will be displayed.

  • Page 96: Appendix 1

    APPENDIX 1 ALARM SENSOR INSTALLATION 1. Components 1) External Sensor: 1 2) DVR System: 1 2. Inner Circuit for Sensor Input The inner circuit of DVR is as follows, ① PC817 : Photo Coupler ② The Specification of PC817 EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 97 Installation Guide H.264 Realtime Recorder Installation User Manual EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 98 Installation Guide H.264 Realtime Recorder Installation User Manual 1. SENSOR Install Processing Please refer the below block diagram ① EVD-16/400A16HC www.eurovideo-cctv.com...

  • Page 99: Appendix 2

    > Window XP / 2000 > Window Vista Tools-> Internet Options-> Security Tools-> Internet Options-> Security -> Unselect square box -> -> Select “Customer Level” Select “Customer Level” Select “ Allow script-initiated windows Without Size or position constraints”-> Enable. EVD-16/400A16HC www.eurovideo-cctv.com...
  • Page 100 Installation Guide H.264 Realtime Recorder Installation User Manual Select “Download unsigned Active X Controls”-> Prompt Select “ Automatic Prompting for Active X Controls”-> Disable...
  • Page 101 Installation Guide H.264 Realtime Recorder Installation User Manual 2) Connection Click here as described Select “Temporary Allow Pop-ups” Click “To help protect security, Internet Explorer stopped this site from installing an Active X control on your computer. Click here for options…”...
  • Page 102 Installation Guide H.264 Realtime Recorder Installation User Manual Select “Install Active X Control “ Select “Install” and then ‘Log-In’ box will be shown.

  • Page 103: Appendix 3

    Installation Guide H.264 Realtime Recorder Installation User Manual APPENDIX 3 DYNAMIC IP (Supporting DDNS Server) With DDNS Server, This allows a user to connect to the unit remotely without the need for a fixed IP address.(Please register your ID & Domain at www.ddns- dvr.com in which you can use their DDNS server as free of charge)
  • Page 104 Installation Guide H.264 Realtime Recorder Installation User Manual 4. Create Account. > Fill in all blanks in order to create new account. ID & Password will be emailed to you when the account is setup correctly. Once the DDns-Dvr account has been setup, it is necessary to add the details in the Network section of the DVR’s menus.
  • Page 105 Installation Guide H.264 Realtime Recorder Installation User Manual Set up DDNS 1. Change DDNS to ON 2. Input User ID 3. Input User PW 4. Input Domain 5. Click “DDNS Status Check” if it is “ok” Click “Apply” > Note; In DDNS Setup, The Domain Name has to be filled in.

  • Page 106: Appendix 4

    It is for setting virtual server to forward IP which is allotted to DVR. > For example, EVD-16/400A16HC, IP : 192.168.10.15, DVR Port : 2000, Web Server Port : 2200 If DVR-1 is configured as above, the virtual server on IP sharing router is as follows.
  • Page 107 * For more detail, please refer to relevant IP sharing manual. (3) ‘DDNS’ Setup on IP sharing router DDNS configuration is not needed in case of fixed IP. (4) To connect EVD-16/400A16HC with Internet Explorer, http://EVD- 16/400A16HC.ddns-dvr.com:2200, to connect EVD-16/400A16HC with CD installer, http://EVD- 16/400A16HC.ddns-dvr.com:2000.

  • Page 108: Appendix 5

    Installation Guide H.264 Realtime Recorder Installation User Manual APPENDIX 5 MAKING A PARTITION ON AN EXTERNAL USB HARD DRIVE To back up to USB HDD, the USB HDD should be formatted first on PC. The supports the FAT32 & NTFS file system, of which maximum size is 500GB for one partition.
  • Page 109 Installation Guide H.264 Realtime Recorder Installation User Manual 2. Select “Computer Management” 3. Select “Disk Management”.
  • Page 110 Installation Guide H.264 Realtime Recorder Installation User Manual 4. Click right mouse button and select “New Partition”. 5. Follow “New Partition Wizard” procedure as below.
  • Page 111 Installation Guide H.264 Realtime Recorder Installation User Manual 6. Select the Primary partition option. 7. Maximum is 500GB at FAT32 file format.
  • Page 112 Installation Guide H.264 Realtime Recorder Installation User Manual 8. Assign drive letter 9. Format the partition to FAT32...
  • Page 113 Installation Guide H.264 Realtime Recorder Installation User Manual 10. At this stage, New Partition has been made. 11.Check New partition was created correctly.(Format will run automatically)
  • Page 114 Installation Guide H.264 Realtime Recorder Installation User Manual 12. Check New Partition was created correctly...

  • Page 115: Appendix 6

    Installation Guide H.264 Realtime Recorder Installation User Manual APPENDIX 6 SPECIFICATION 1) 480/400fps Realtime recorder...
  • Page 116 Installation Guide H.264 Realtime Recorder Installation User Manual 2) 240/200fps Realtime Recorder...
  • Page 117 Installation Guide H.264 Realtime Recorder Installation User Manual This page is intentionally left blank...
