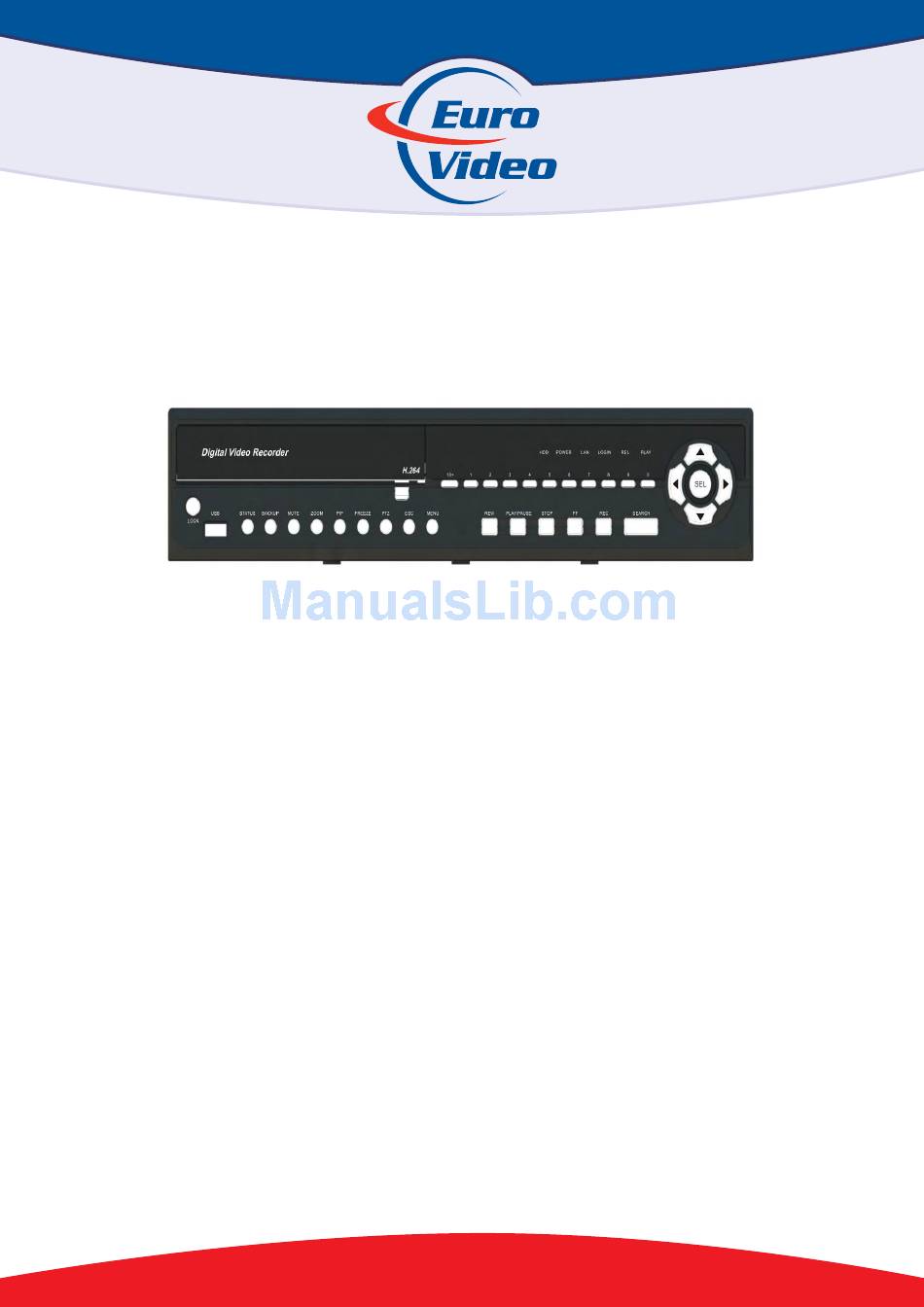

- Page 1 32CH DVR Quick Start Guide 1. Packing........P.2 2. Hard Disk Installation....P.3 3. DVD-RW Installation....P.5 4. Front Panel Controls....P.7 5. Rear Panel Connectors....P.9 www.eurovideo-cctv.com...
-
Page 2: Quick Start
5. CD 6. Hard Disk Mount 7. Screws 8. IDE to SATA Power Cord 9. Power Cord 10. SATA Cord Note: Standard shipping products do not include HDD 2011 11 21 32CH DVR Quick Start Guide V1 3 P 2... - Page 3 Step 1) Fix the HDD to rack mount with the screws as indicated. Step 2) Remove all screws and remove the machine cover in accordance with the direction of the arrow. 2011 11 21 32CH DVR Quick Start Guide V1 3 P 3...
- Page 4 Step 4) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual “Storage Setup” for reference. 2011 11 21 32CH DVR Quick Start Guide V1 3 P 4...
- Page 5 Standard shipping products do not include HDD and DVD-RW) Step 1) Remove the riser of DVR-RW. Remove the riser of DVD-RW Step 2) Fix the DVD-RW to rack mount with the screws as indicated 2011.11.21 32CH DVR Quick Start Guide V1.3 P.5...
- Page 6 Step 3) Remove all screws and remove the machine cover in accordance with the direction of the arrow. Step 4) Fix the DVD-RW rack mount with the screws into to housing as indicated 2011 11 21 32CH DVR Quick Start Guide V1 3 P 6...
- Page 7 Step 5) Connect the power and the SATA cables as indicated. 2011 11 21 32CH DVR Quick Start Guide V1 3 P 7...
- Page 8 Power is on ⑧ LED Display LAN：Network connected (From left to right) LOGIN：User login REC： Recording PLAY：DVR play video ⑨ Number 0~9、 Select the full screen channel in live mode. 2011 11 21 32CH DVR Quick Start Guide V1 3 P 8...
- Page 9 Select the full screen channel in playback. ⑩ Input sensor for the remote control IR Sensor ⑪ Optional DVD-RW backup device. (Option) DVD Writer 2011 11 21 32CH DVR Quick Start Guide V1 3 P 9...
- Page 10 ⑫ AUDIO OUT RCA output port for audio sign, 2 in total. Socket for an AC 110/220V input. ⑬ AC 110/220V Caution: Switch to local voltage before use. 2011 11 21 32CH DVR Quick Start Guide V1 3 P 10...
