S CLASS™ cutter

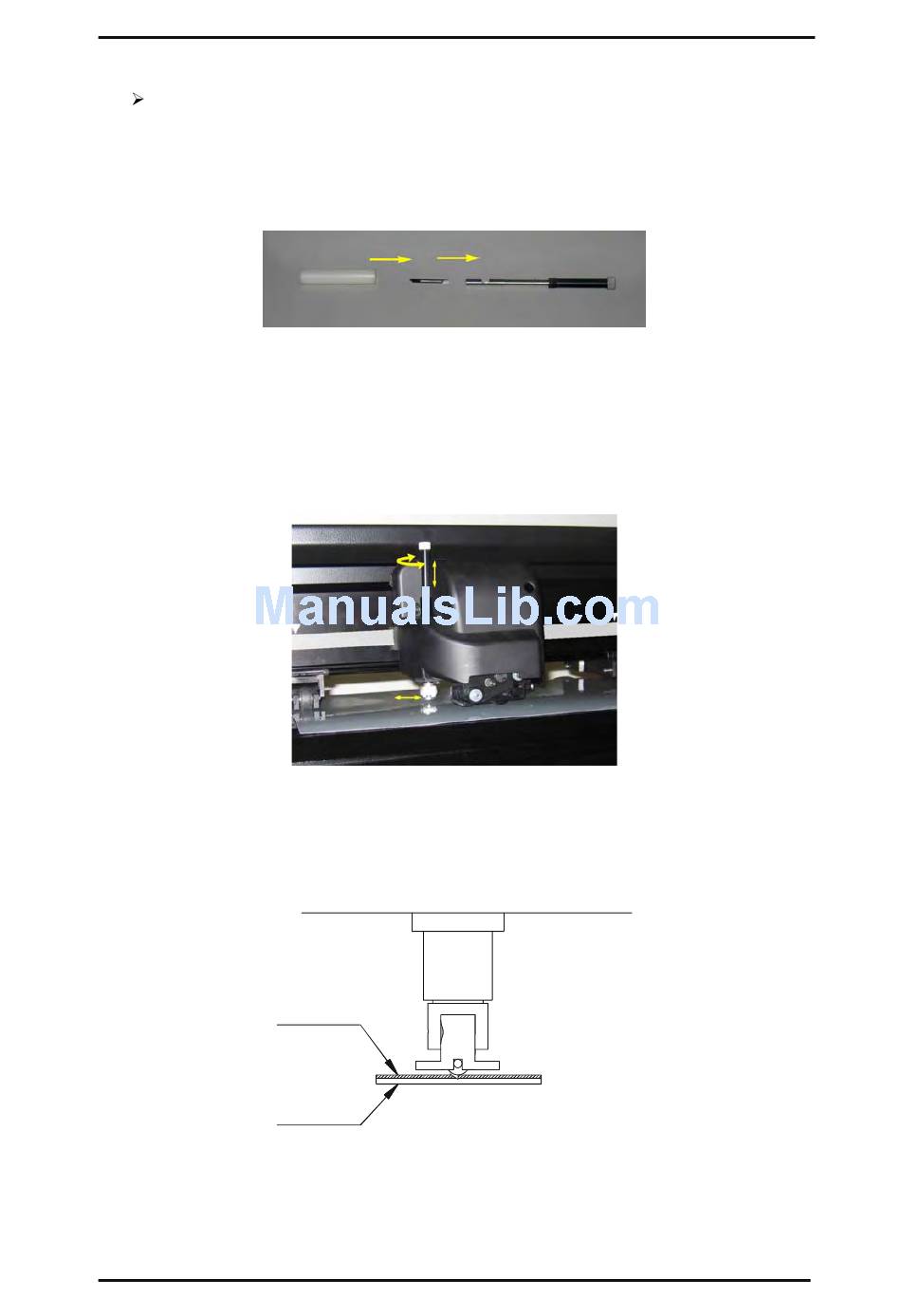

Installing the tangential knife and setting knife depth
1. Insert the standard knife blade into the knife holder. Make sure the knife blade is
firmly fixed in the holder. The knife is inserted correctly if it cannot be removed
manually from the knife holder. The installation tool can be used to apply enough
pressure on the knife to secure it.
2. Insert the nosepiece from the side until it snaps into place. Gently insert the knife
into the tool shaft. Hold the nosepiece in place with one hand and, with the other
hand, turn the knife holder counterclockwise until the alignment pin fits into the
small notch of the tool shaft. Now turn the knife holder clockwise until its thread
takes hold inside the tool shaft.
1-33
3. Holding the nosepiece in place with one hand, adjust the knife depth with the other
hand by turning the knife holder clockwise until the knife tip is just visible from
under the nosepiece.
Setup
FIG 1-32
1-32 BLADE ASSEMBLY
FIG 1-33

INSERTING THE TANGENTIAL KNIFE HOLDER

Film
Backing
FIG 1-34
1-34

KNIFE DEPTH ADJUSTMENT
