5.1.6 Changing the fuse

CAUTION: Before changing the fuse, make sure that the cutter is completely

disconnected from its power source.

CAUTION: For continued protection against risk of fire, replace only with the same type

and rating of fuse: T2.0A, 250V SCHURTER SPT OR EQUIVALENT.

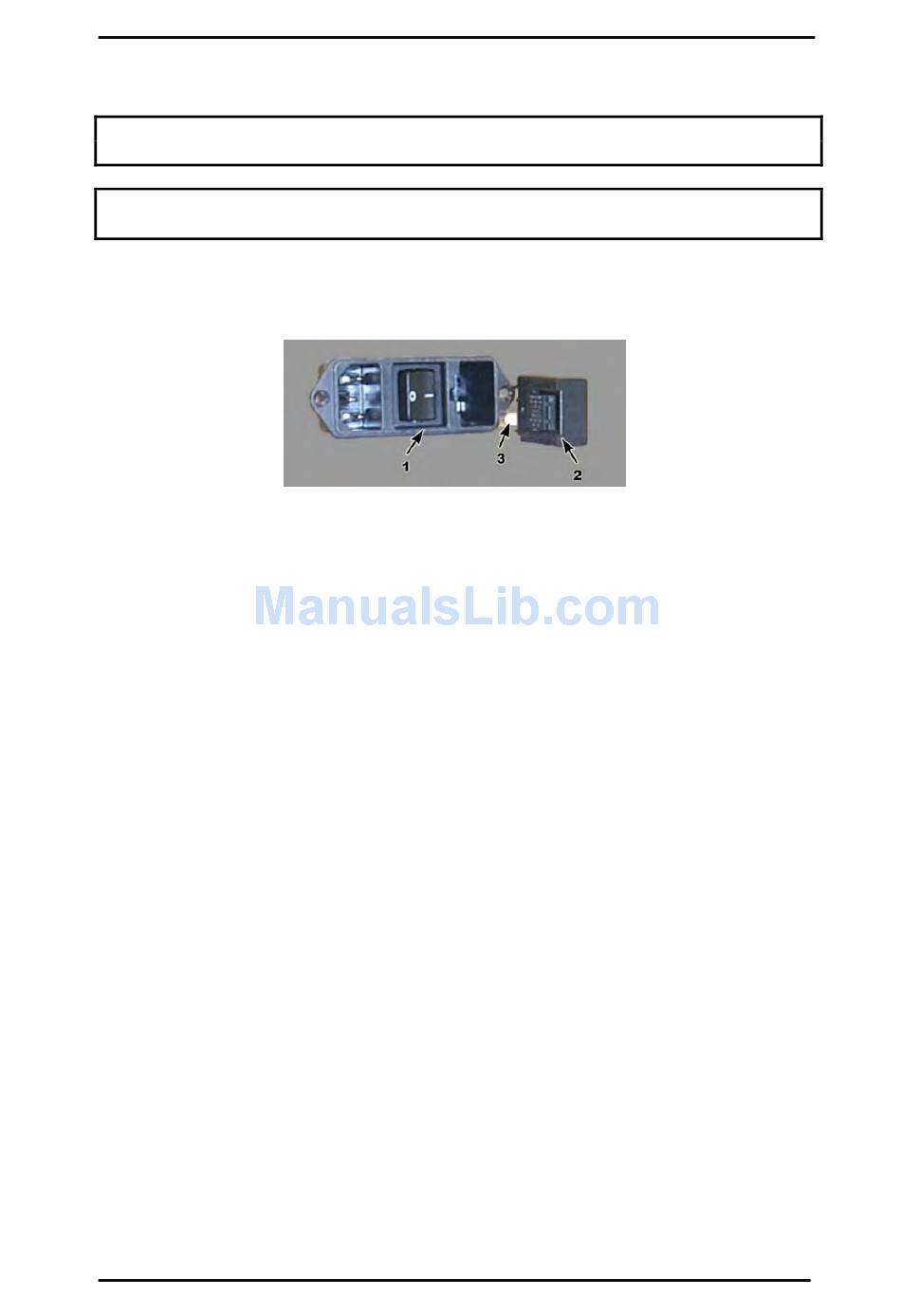

1. To remove the fuse (3), lightly pry the fuse holder release clip (2) in the direction

opposite the power switch. The fuse holder will pop free.

FIG 5-6

5-6

POWER ENTRY MODULE

2. Remove the fuse holder.

3. Pull the fuse from the holder.

4. Put new fuse in the holder and clip the holder back into place.

Maintenance

5-5
